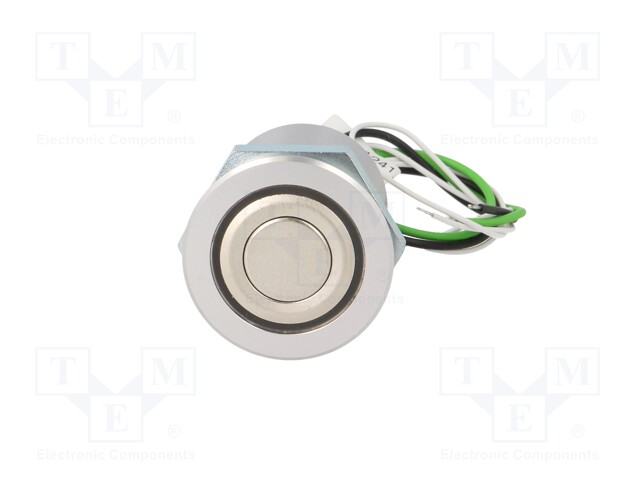

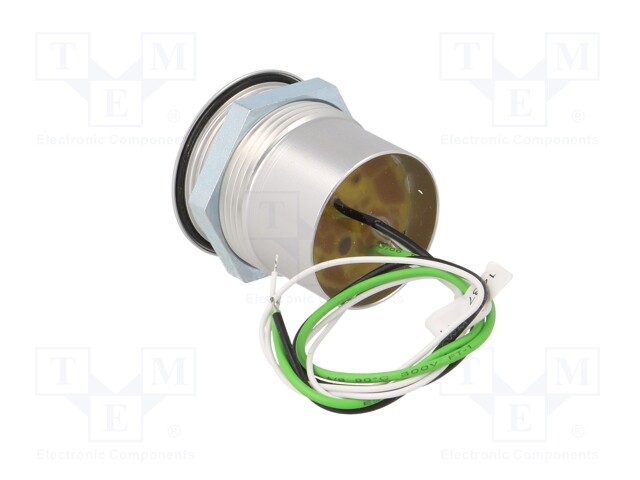

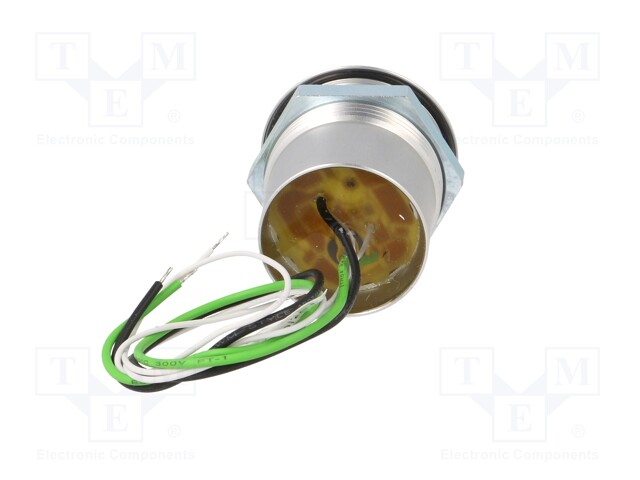

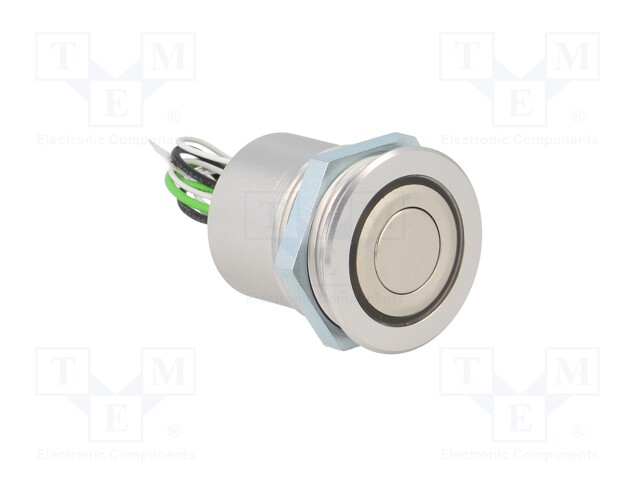

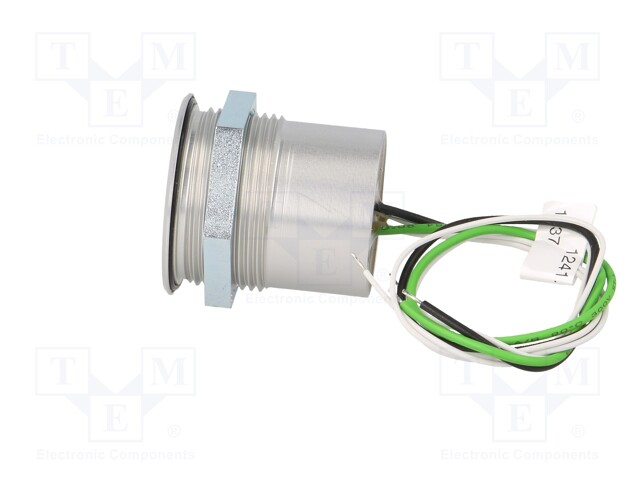

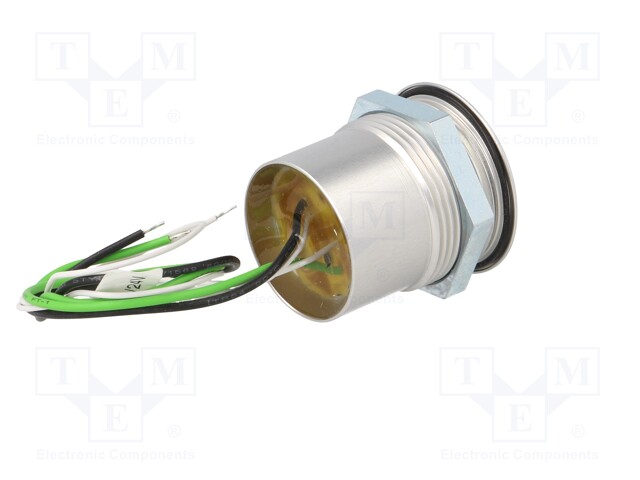

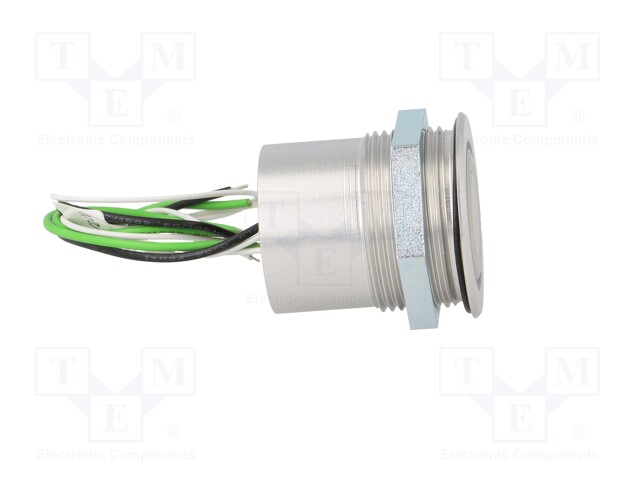

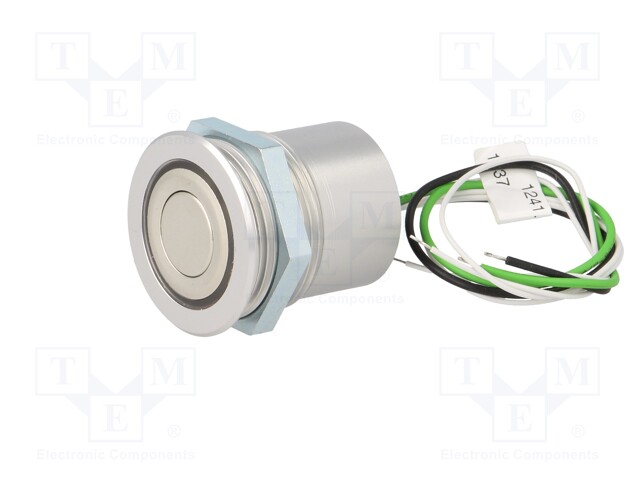

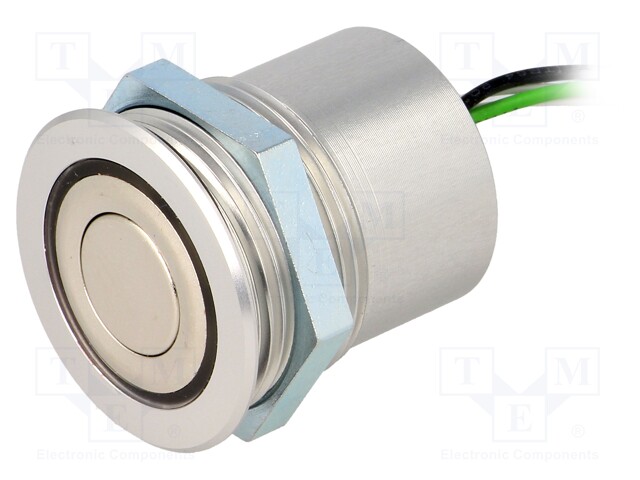

Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; green

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1241.6401
    Manufacturer: SCHURTER
    Manufacturer code: 1241.6401
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Body material
    • Mounting hole diameter
    • Body colour
    • Diameter
    • Switched voltage
    • Backlight colour
    • Illumination
    • Illumination
    • Plating material
    • Electrical life
    • Contacts configuration
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Contact current max.

    60.00 € 60.00 € (wo VAT) 60.0 EUR

    60.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: vandal resistant; Pos: 2; SPST-NO; 0.05A/24VDC; IP65; green

    Operating temperature -20...60°C
    IP rating IP65
    Type of switch vandal resistant
    Contact plating silver plated
    Number of positions 2
    Leads cables
    Max. contact resistance: 150mΩ
    Body material zinc alloy

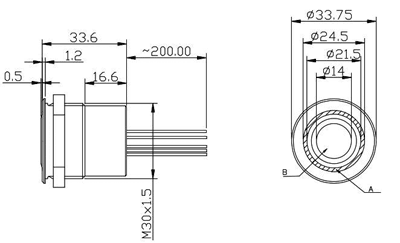

    Mounting hole diameter Ø30mm
    Body colour silver
    Diameter 33.75mm
    Switched voltage max. 48V DC
    Backlight colour green
    Illumination ring, LED
    Plating material nickel
    Electrical life 1000000cycles
    Contacts configuration SPST-NO
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 3.7N
    Button shape flat
    Contact current max. 125mA
