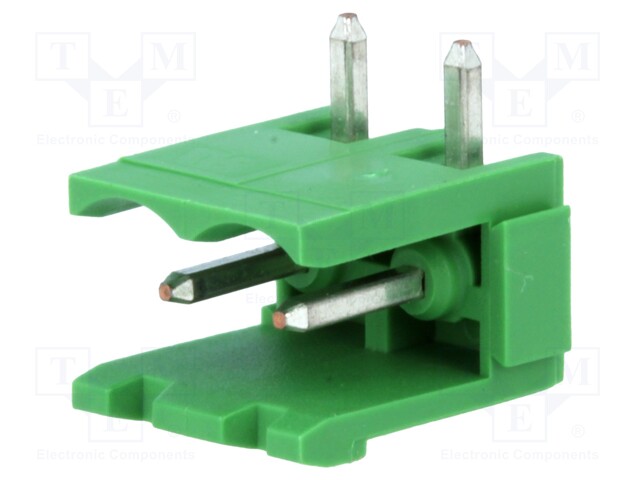

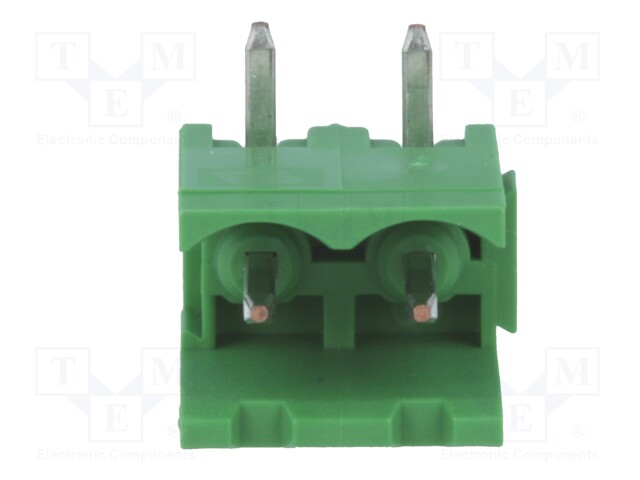

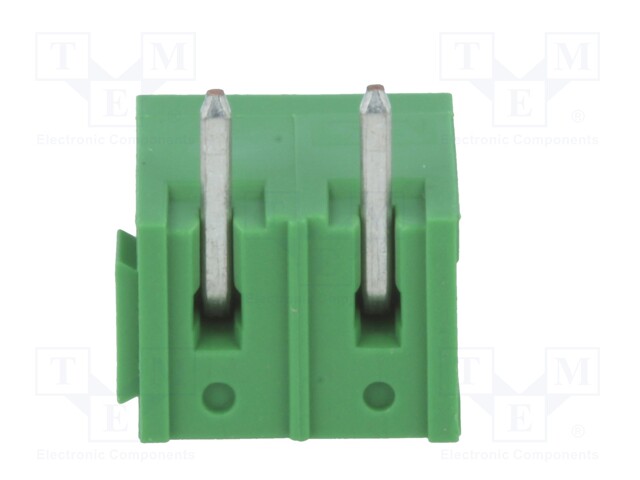

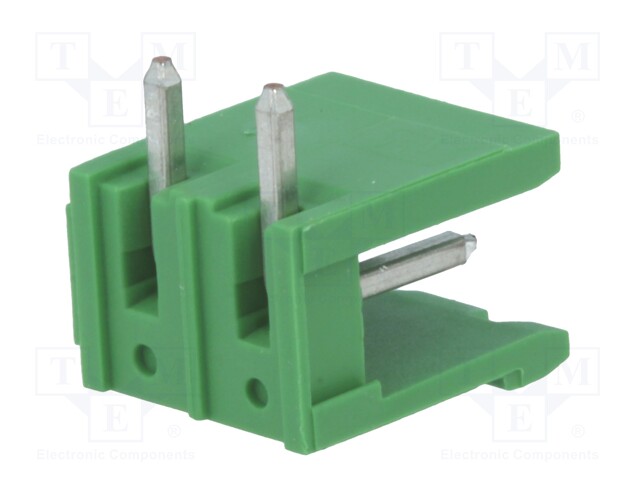

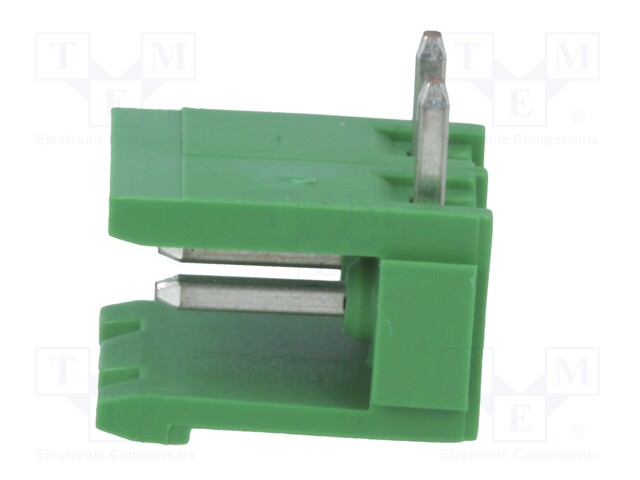

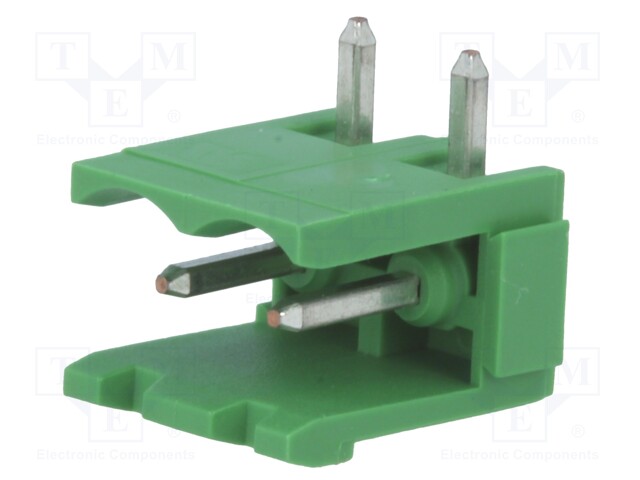

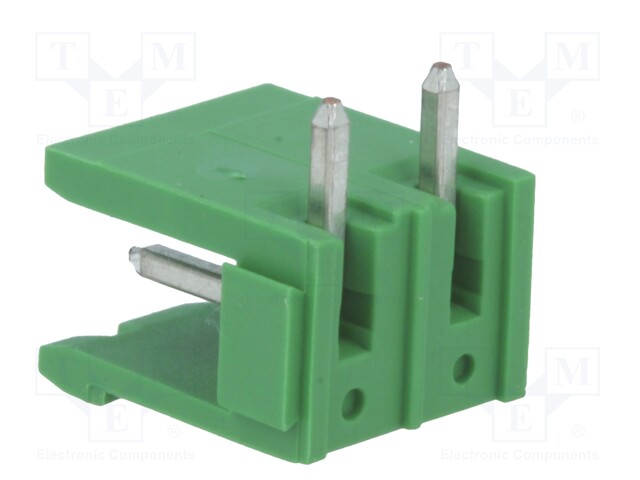

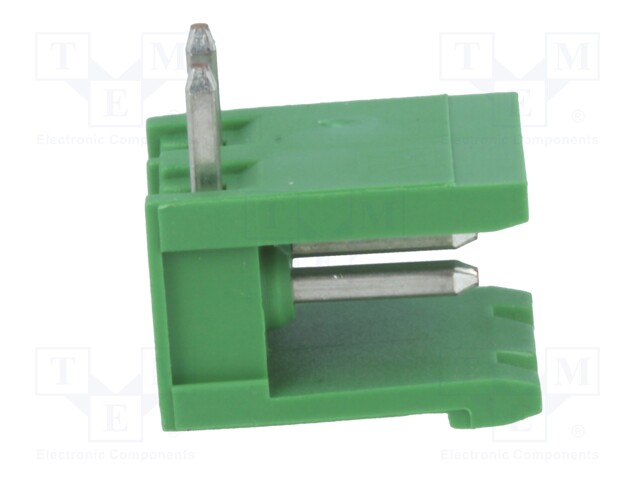

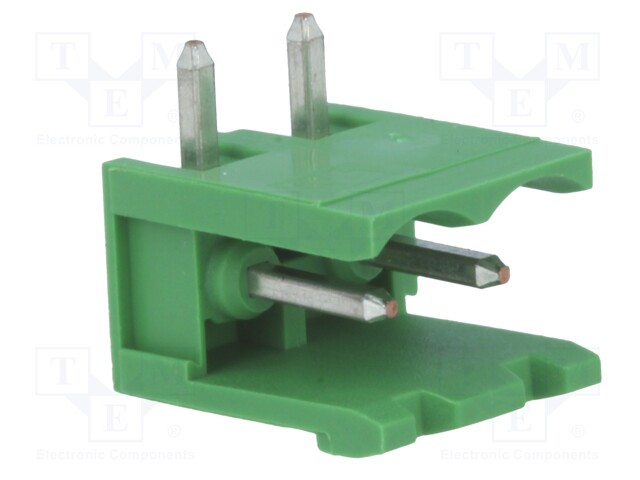

Pluggable terminal block; Contacts ph: 5.08mm; ways: 2; socket

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 282814-2
    Manufacturer: TE Connectivity
    Manufacturer code: 282814-2
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Locking system
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Connectors features

    1.58 € 1.58 € (wo VAT) 1.58 EUR

    1.58 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Pluggable terminal block; Contacts ph: 5.08mm; ways: 2; socket

    Operating temperature -40...110°C
    Contacts pitch 5.08mm
    Electrical mounting THT
    Connector socket
    Kind of connector male
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Number of pins 2
    Contact material phosphor bronze
    Body material polyamide
    Flammability rating UL94V-0

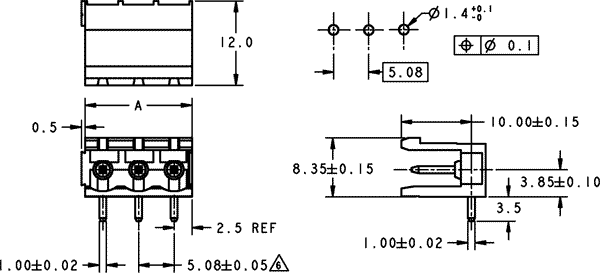

    Length 10.16mm
    Height 8.35mm
    Current rating 12A
    Number of ways 2
    Type of pin configuration 1x2
    Locking system friction lock
    Connector variant without side walls
    Conform to the norm CSA, UL, VDE
    Spatial orientation angled 90°
    Connectors features assembling possibility
