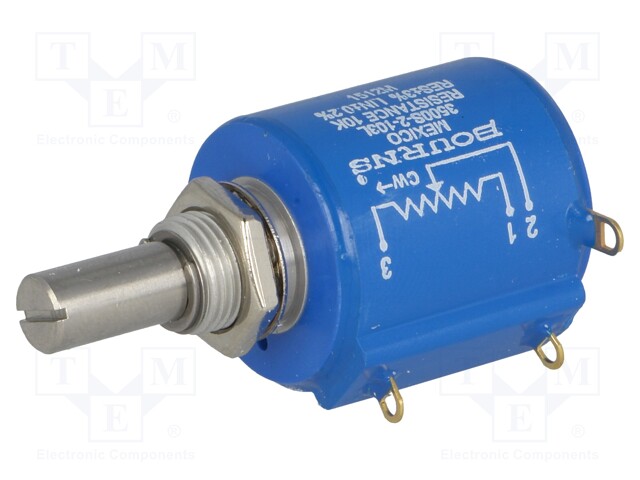

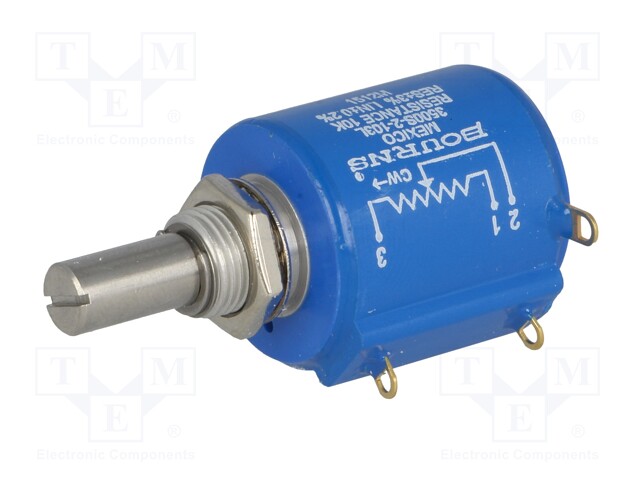

Potentiometer: shaft; 10kΩ; 2W; ±3%; 6.35mm; linear; wirewound; IP65

Potentiometer: shaft; 10kΩ; 2W; ±3%; 6.35mm; linear; wirewound; IP65

Multiples: 1.0

Minimum quantity: 1.0

Product code: 3500S-2-103L
Manufacturer: BOURNS
Manufacturer code: 3500S-2-103L
Certificates:

Power
Resistance
Operating temperature
IP rating
Tolerance
Height
Body dimensions
Min. insulation resistance
Shaft length
Shaft diameter
Thread length
L shaft length
Number of electrical turns
Type of potentiometer
Track material
Characteristics
Temperature coefficient
Potentiometer features
Shaft material

67.27 € 67.27 € (wo VAT) 67.27 EUR

67.27 €

This combination does not exist.

Product downloads

3500.pdf

Specification for Potentiometer: shaft; 10kΩ; 2W; ±3%; 6.35mm; linear; wirewound; IP65

Power	2W
Resistance	10kΩ
Operating temperature	1...125°C
IP rating	IP65
Tolerance	±3%
Height	25.4mm
Body dimensions	Ø22.23x25.4mm
Min. insulation resistance	1GΩ
Shaft length	12.64mm
Shaft diameter	6.35mm
Thread length	8mm
L shaft length	20.64mm
Number of electrical turns	10
Type of potentiometer	shaft
Track material	wirewound
Characteristics	linear
Temperature coefficient	50ppm/°C
Potentiometer features	precise
Shaft material	metal
