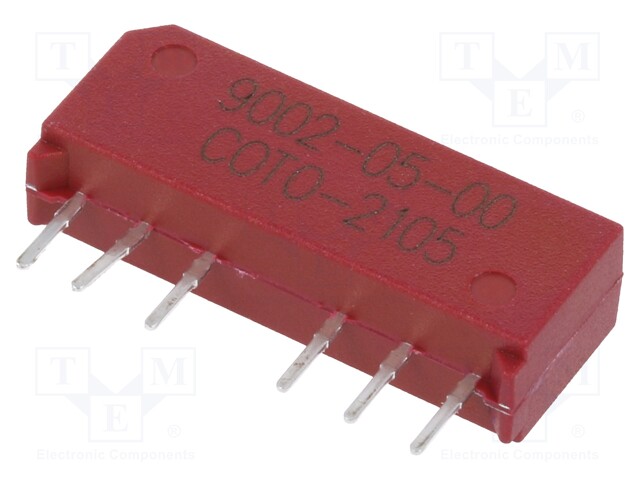

Relay: reed

    Multiples: 1225.0
    Minimum quantity: 1225.0
    Product code: 9002-05-00
    Manufacturer: COTO TECHNOLOGY
    Manufacturer code: 9002-05-00
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.

    5.21 € 5.21 € (wo VAT) 5.21 EUR

    5.21 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed

    Mounting THT
    Case SIP
    Operating temperature -20...85°C
    Terminal pitch 2.54mm
    Switched voltage max. 200V AC, max. 200V DC
    Switching capacity 10W
    Coil resistance 350Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 200mΩ
    Contact current max. 500mA
    Coil voltage max. 6.5V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
