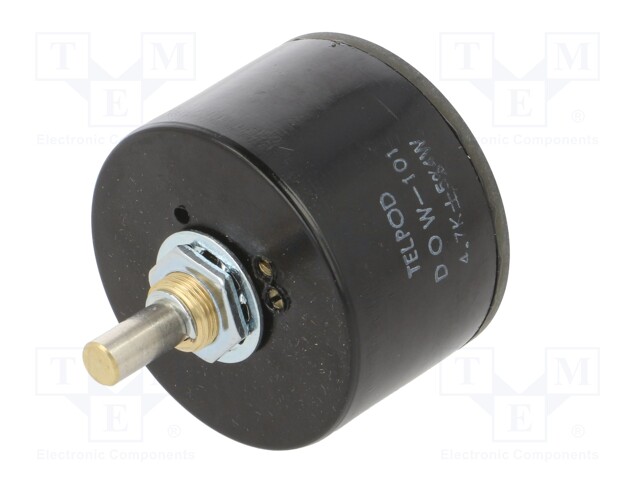

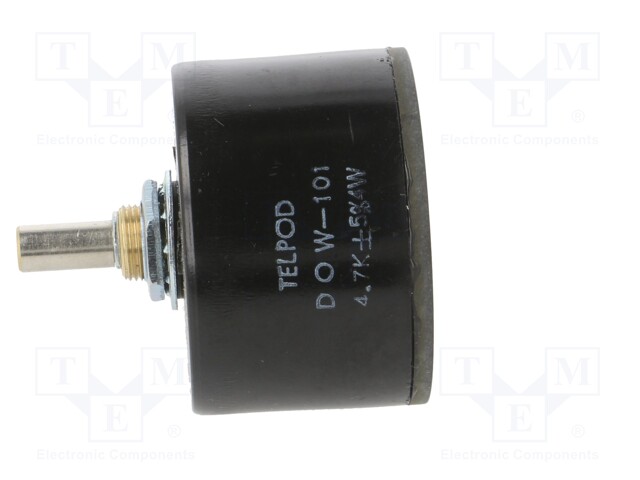

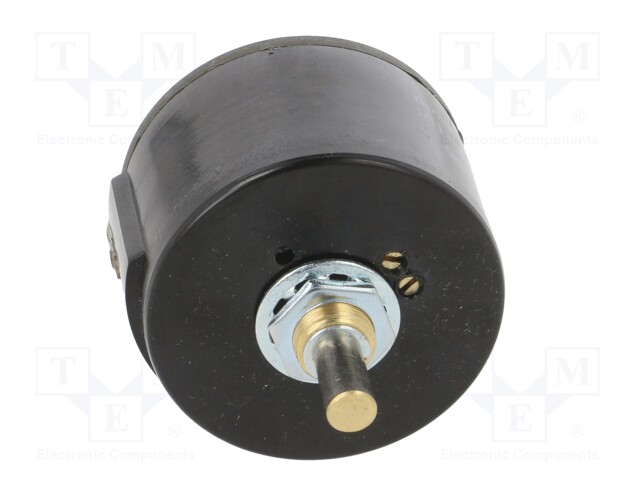

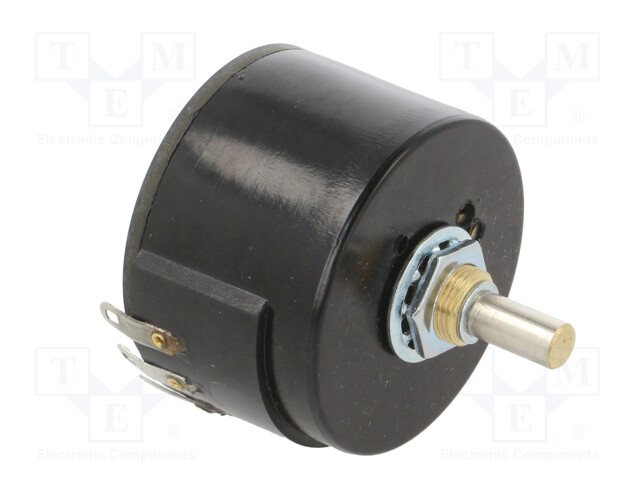

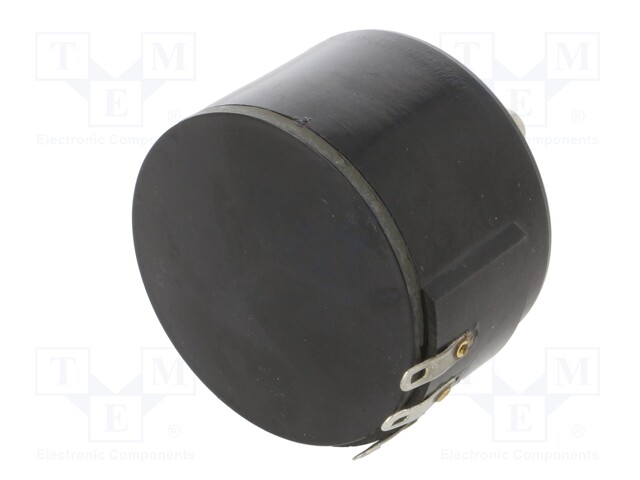

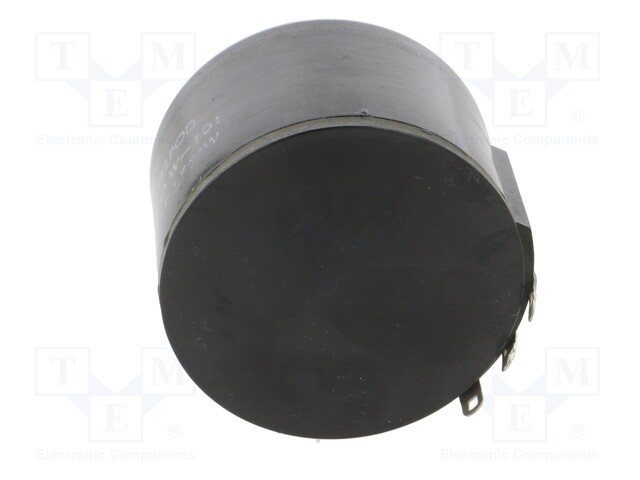

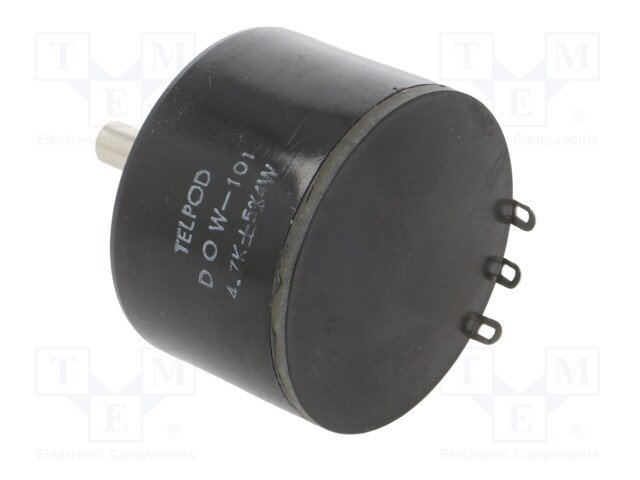

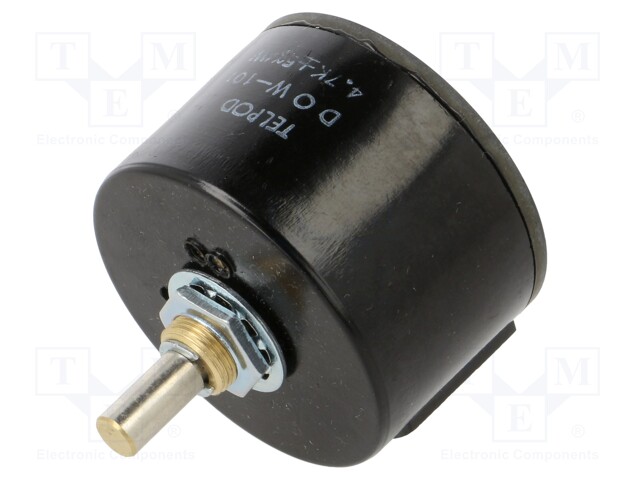

Potentiometer: shaft; single turn; 4.7kΩ; 4W; ±5%; 6mm; wirewound

    Multiples: 100.0
    Minimum quantity: 100.0
    Product code: DOW101-4K7-20P1
    Manufacturer: TELPOD
    Manufacturer code: DOW101-4K7-20P1
    • Power
    • Resistance
    • Tolerance
    • Fastening thread
    • Body dimensions
    • Max. operating voltage
    • Shaft diameter
    • Shaft surface
    • L shaft length
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Potentiometer: shaft; single turn; 4.7kΩ; 4W; ±5%; 6mm; wirewound

    Power 4W
    Resistance 4.7kΩ
    Tolerance ±5%
    Fastening thread M10x0,75
    Body dimensions Ø46x33mm
    Max. operating voltage 100V AC
    Shaft diameter 6mm
    Shaft surface smooth
    L shaft length 20mm
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material wirewound
    Characteristics linear
    Mechanical rotation angle 315°
