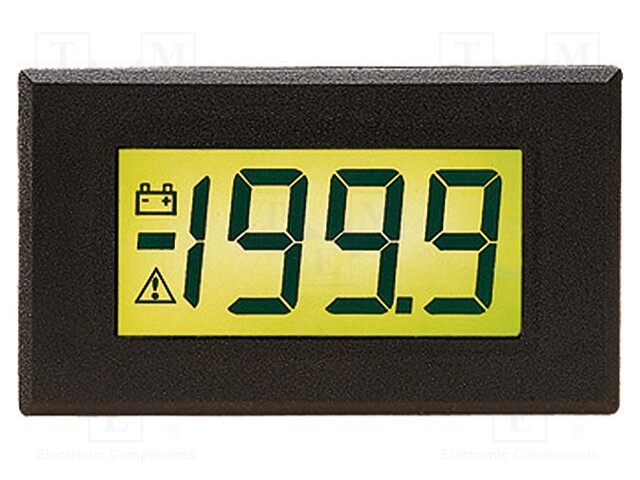

Panel; LCD 3,5 digit 19mm,with a backlit; VDC: 0÷200mV

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DPM950
    Manufacturer: LASCAR
    Manufacturer code: DPM950
    • Mounting
    • Mechanical mounting
    • Mounting hole diameter
    • Kind of display used
    • Supply current
    • Digit height
    • Illumination voltage
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Standard equipment
    • Type of meter
    • Measurement
    • Sampling
    • Kind of meter
    • Kind of meter
    • Dimensions (W x H x D)

    72.62 € 72.62 € (wo VAT) 72.62 EUR

    72.62 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Panel; LCD 3,5 digit 19mm,with a backlit; VDC: 0÷200mV

    Mounting on panel
    Mechanical mounting bezel and fastening holders screwed to meter's enclosure
    Mounting hole diameter 71.5x39mm
    Kind of display used LCD
    Supply current 150µA
    Digit height 19mm
    Illumination voltage 5V
    Measuring instrument features . symbol (activated by jumper setting), 1 overflow indicator (activated by jumper setting), automatic polarization selection, autozeroing, IDC connector, low battery indicator (activated by jumper setting), measures voltage in relation to ground of internal supply source, #NAZWA?
    Standard equipment 16pin IDC female plug with cable holder, 4x screw, screwed on bezel with window pan, mounting holder x2
    Type of meter voltmeter
    Measurement DC voltage
    Sampling 3x/s
    Kind of meter digital, mounting
    Dimensions (W x H x D) 76x44x13.5mm
