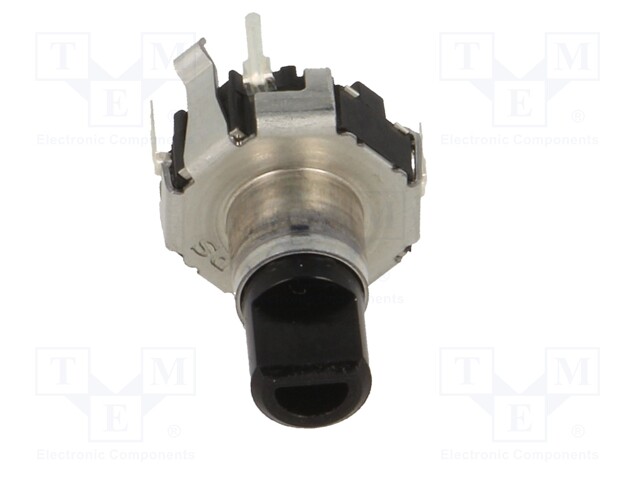

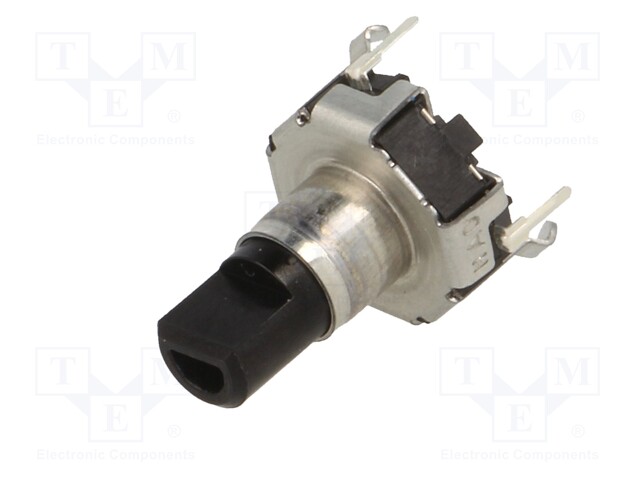

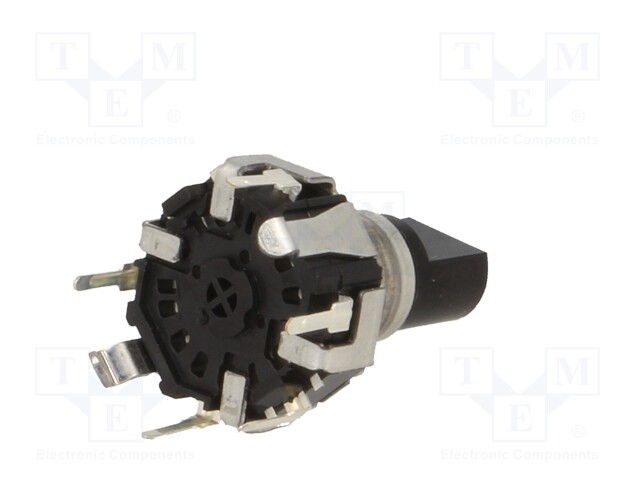

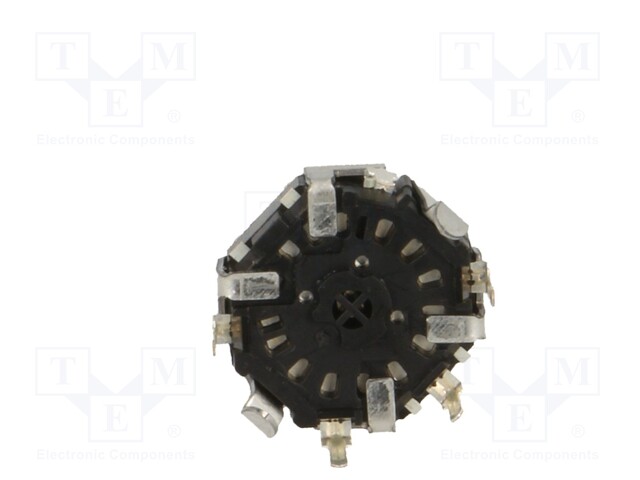

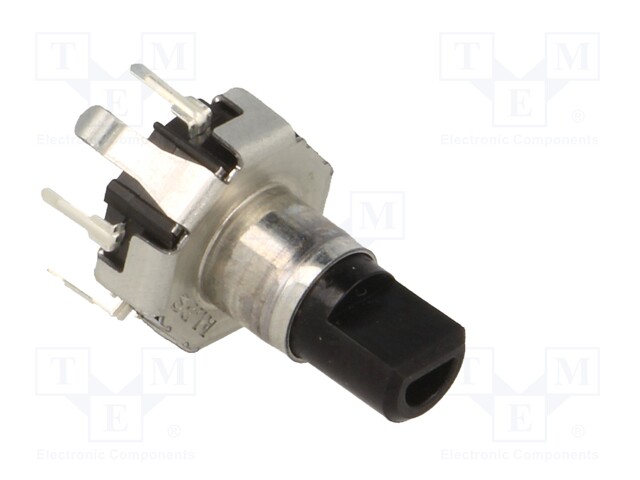

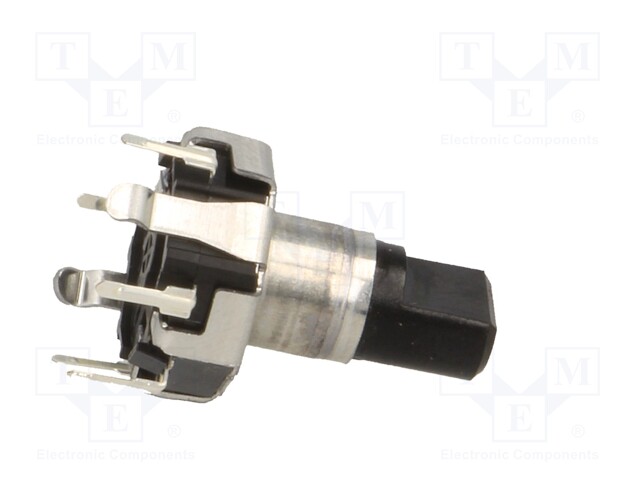

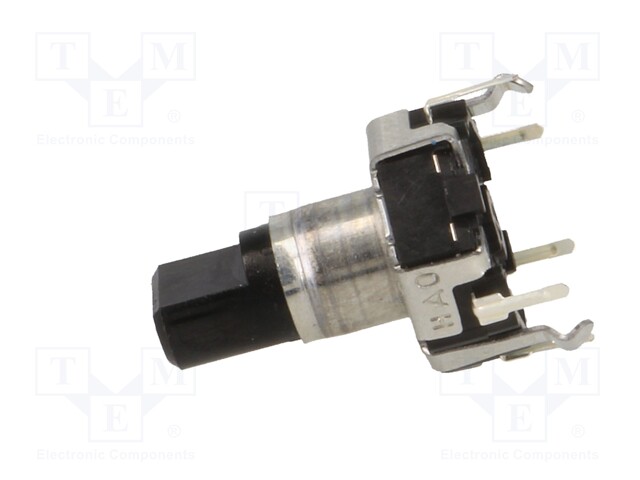

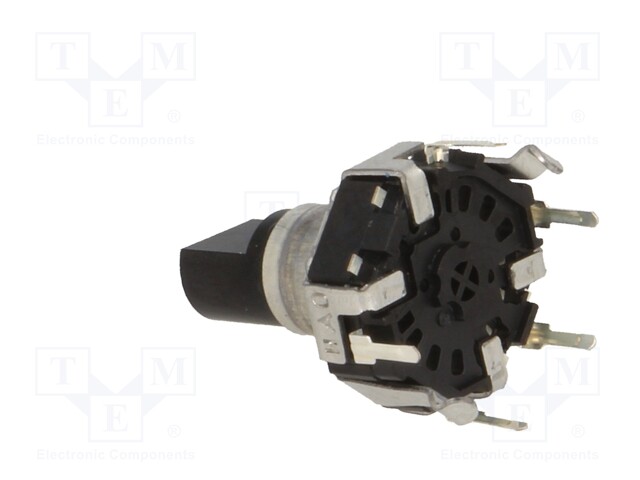

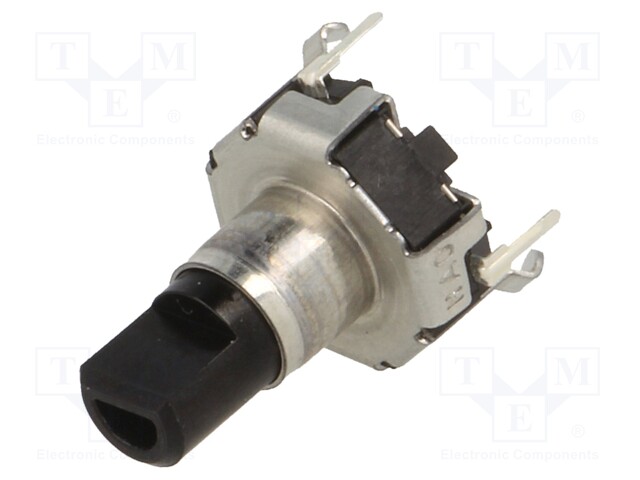

Encoder: incremental; THT; 15imp/revol; two phase A and B; 5mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EC12D1564402
    Manufacturer: ALPS
    Manufacturer code: EC12D1564402
    • Mounting
    • Type of encoder
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Number of positions
    • Mechanical durability
    • Resolution
    • Output signal
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Encoders features
    • Key stroke
    • Cut depth

    1.56 € 1.56 € (wo VAT) 1.56 EUR

    1.56 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Encoder: incremental; THT; 15imp/revol; two phase A and B; 5mA

    Mounting THT
    Type of encoder incremental
    Operating voltage 5V DC
    Max. operating current 5mA
    Operating temperature -40...85°C
    Number of positions 30
    Mechanical durability 30000cycles
    Resolution 15imp/revol.
    Output signal two phase A and B

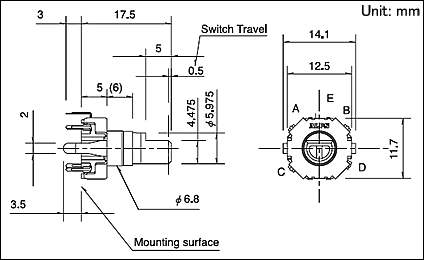

    Shaft length 6.5mm
    Shaft diameter 5.975mm
    Shaft surface D spring
    Encoders features with button
    Key stroke 0.5mm
    Cut depth 1.5mm
