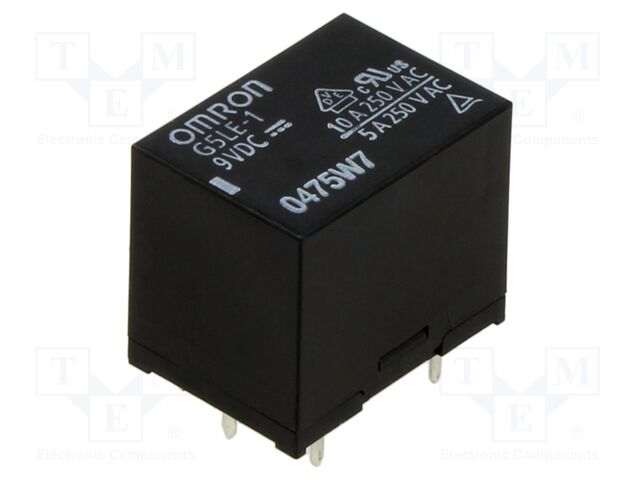

Relay: electromagnetic; SPDT; Ucoil: 9VDC; Icontacts max: 10A; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G5LE-1-9DC
    Manufacturer: OMRON OCB
    Manufacturer code: G5LE-1-9DC
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    2.28 € 2.28 € (wo VAT) 2.2800000000000002 EUR

    2.28 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 9VDC; Icontacts max: 10A; PCB

    Mounting PCB
    Operating temperature -25...85°C
    Leads for soldering
    Contact material silver alloy
    Body dimensions 22.5x16.5x19mm
    Mechanical durability 10000000cycles
    Switched voltage max. 125V DC, max. 250V AC
    Coil resistance 200Ω
    Rated coil voltage 9V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 120V AC
    Enclosure description standard seal
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 10ms
    Release time 5ms
    Coil current 45mA
