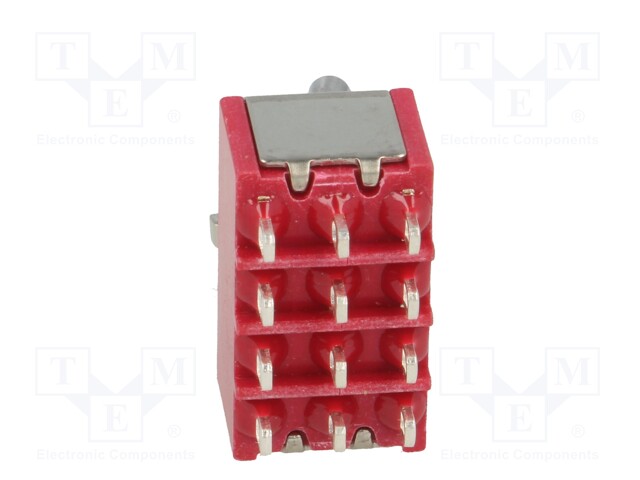

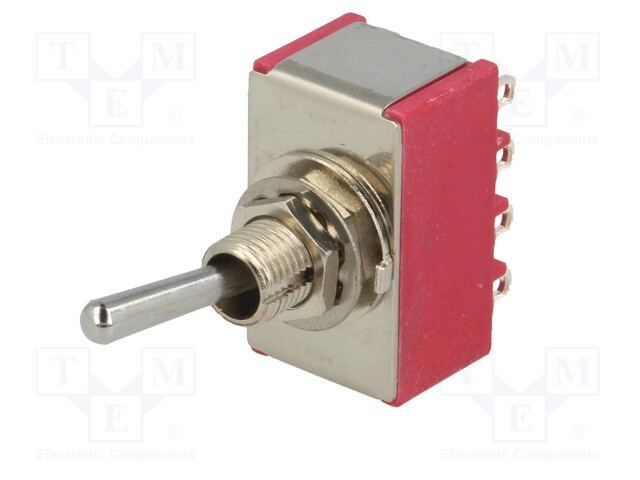

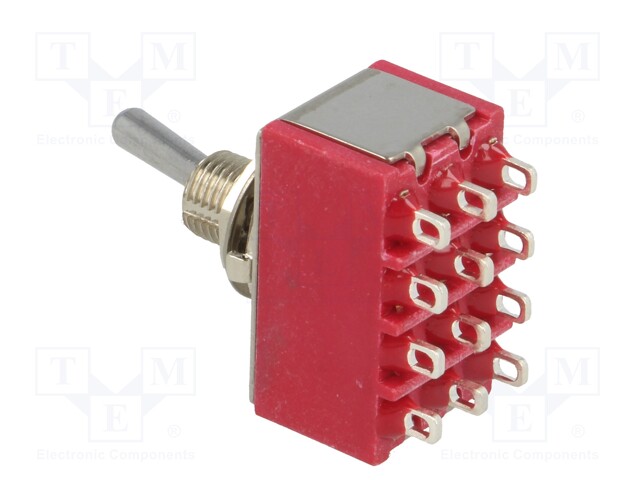

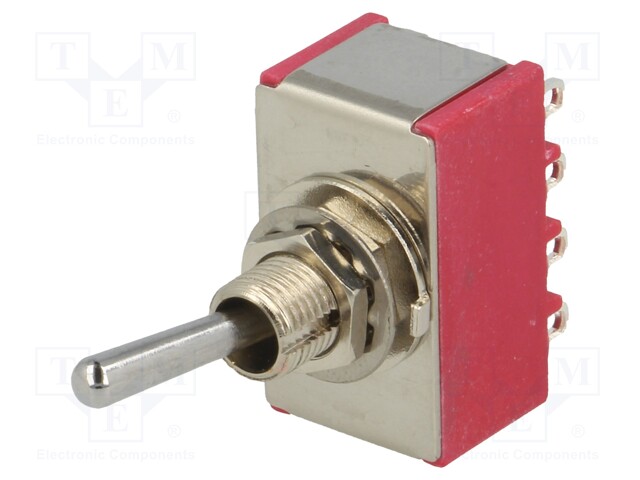

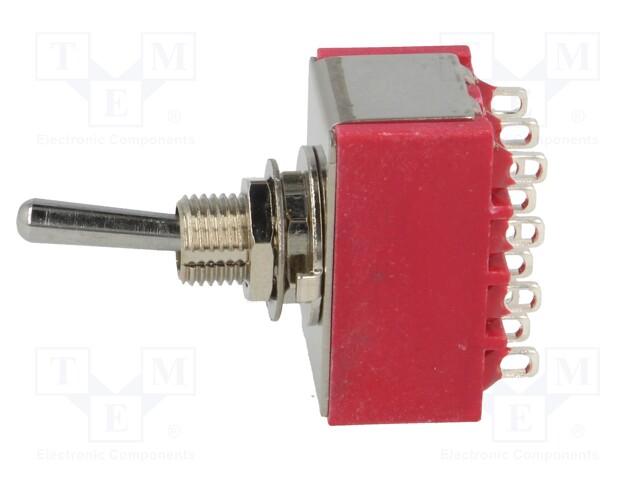

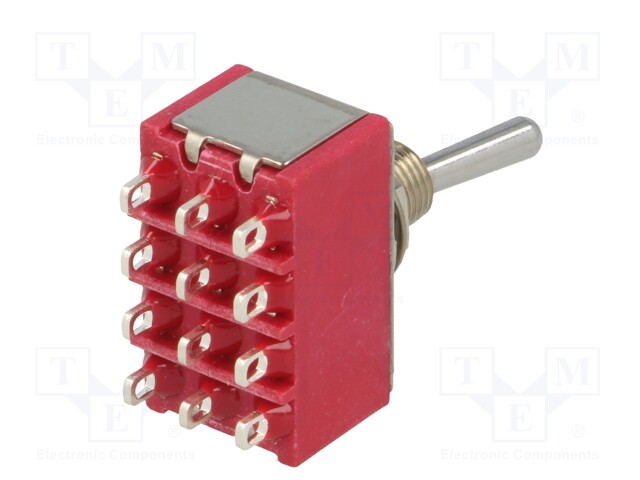

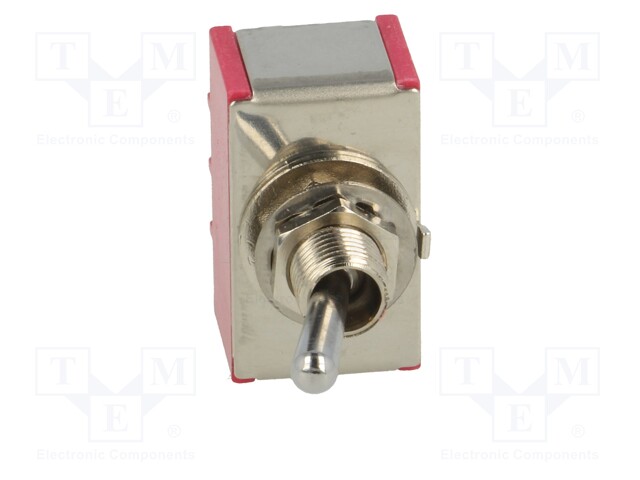

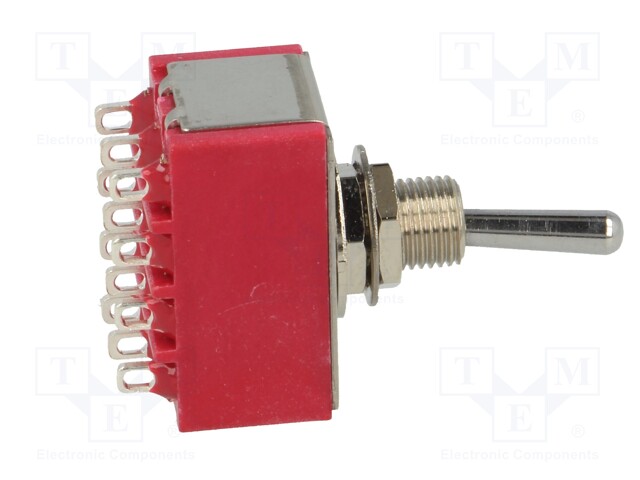

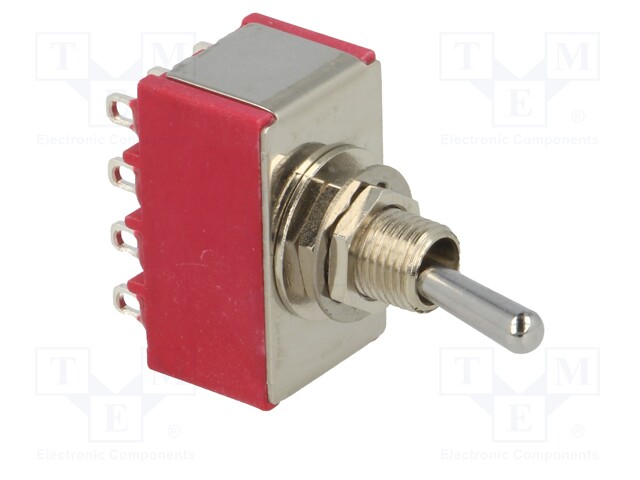

Switch: toggle; Pos: 3; 4P3T; ON-OFF-ON; 5A/125VAC; 5A/28VDC; 1000MΩ

Switch: toggle; Pos: 3; 4P3T; ON-OFF-ON; 5A/125VAC; 5A/28VDC; 1000MΩ

Multiples: 1.0

Minimum quantity: 1.0

Product code: IC4201T1B1M1QE
Manufacturer: IC SWITCHES
Manufacturer code: IC4201T1B1M1QE
Certificates:

Operating temperature
Type of switch
Contacts pitch
Contact plating
Number of positions
Leads
Contact material
Body material
Mounting hole diameter
Min. insulation resistance
Electrical life
Contacts configuration
DC contacts rating @R
AC contacts rating @R
Switching method
Stable positions number
Actuator material
Knob height
Kind of toggle
Lever plating

13.32 € 13.32 € (wo VAT) 13.32 EUR

13.32 €

This combination does not exist.

Product downloads

01x4P.pdf

Specification for Switch: toggle; Pos: 3; 4P3T; ON-OFF-ON; 5A/125VAC; 5A/28VDC; 1000MΩ

Operating temperature	-30...85°C
Type of switch	toggle
Contacts pitch	10mm
Contact plating	silver plated
Number of positions	3
Leads	for soldering
Contact material	copper alloy
Body material	stainless steel
Mounting hole diameter	Ø6.35mm
Min. insulation resistance	1GΩ
Electrical life	50000cycles
Contacts configuration	4P3T
DC contacts rating @R	5A / 28V DC
AC contacts rating @R	5A / 125V AC
Switching method	ON-OFF-ON
Stable positions number	3
Actuator material	brass
Knob height	10.34mm
Kind of toggle	round
Lever plating	chromium
