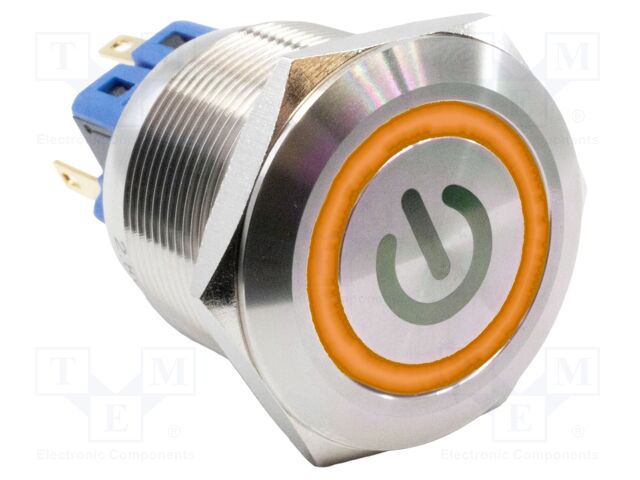

Switch: vandal resistant; Pos: 2; on panel

    Multiples: 20.0
    Minimum quantity: 20.0
    Product code: PV8F2Y0SS-3K1-M11
    Manufacturer: E-SWITCH
    Manufacturer code: PV8F2Y0SS-3K1-M11
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Body material
    • Mounting hole diameter
    • Body colour
    • Panel thickness
    • Backlight colour
    • Illumination
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button shape
    • Button marking
    • Button material

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: vandal resistant; Pos: 2; on panel

    Mounting on panel
    Operating temperature -20...55°C
    IP rating IP65
    Type of switch vandal resistant
    Number of positions 2
    Leads for soldering
    Max. contact resistance: 50mΩ
    Body material stainless steel
    Mounting hole diameter Ø25mm
    Body colour silver
    Panel thickness max. 10mm
    Backlight colour orange/green
    Illumination LED, ring
    Min. insulation resistance 1GΩ
    Electrical life 50000cycles
    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 2A / 48V DC
    Switching method OFF-(ON), ON-(OFF)
    Stable positions number 1
    Operating Force 6.5N
    Actuator colour silver
    Button shape flat, round
    Button marking POWER
    Button material stainless steel
