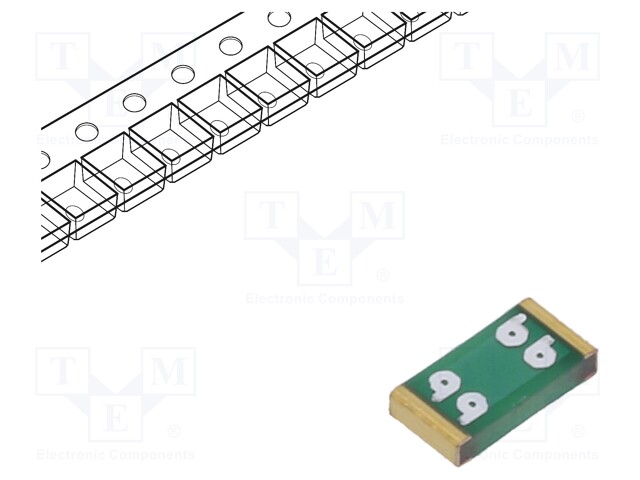

Fuse, Surface Mount, 15 A, UST 1206 Series, 32 VAC, 63 VDC, Slow Blow, 1206

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3413.0330.22
    Tootja: SCHURTER
    Tootja tootekood: 3413.0330.22
    • Mounting
    • Case
    • Resistance
    • Operating temperature
    • Kind of package
    • Kind of package
    • Contact plating
    • Contact plating
    • Contact material
    • Flammability rating
    • Soldering temperature
    • Current rating
    • Rated voltage
    • Rated voltage
    • Type of fuse
    • Fuse characteristics
    • Energy I2t
    • Max voltage drop
    • Breaking capacity

    0,93 € 0,93 € (KM-TA) 0.93 EUR

    0,93 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fuse, Surface Mount, 15 A, UST 1206 Series, 32 VAC, 63 VDC, Slow Blow, 1206

    Mounting SMD
    Case 1206
    Resistance 3.5mΩ
    Operating temperature -55...90°C
    Kind of package reel, tape
    Contact plating gold-plated, nickel plated
    Contact material copper
    Flammability rating UL94V-0
    Soldering temperature 245°C / 3 s
    Current rating 15A
    Rated voltage 32V AC, 63V DC
    Type of fuse fuse
    Fuse characteristics time-lag
    Energy I2t 65A<sup>2</sup>s
    Max voltage drop 57mV
    Breaking capacity 100A
