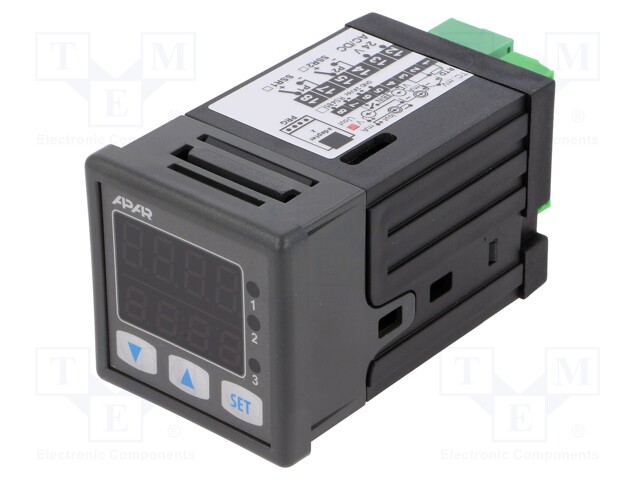

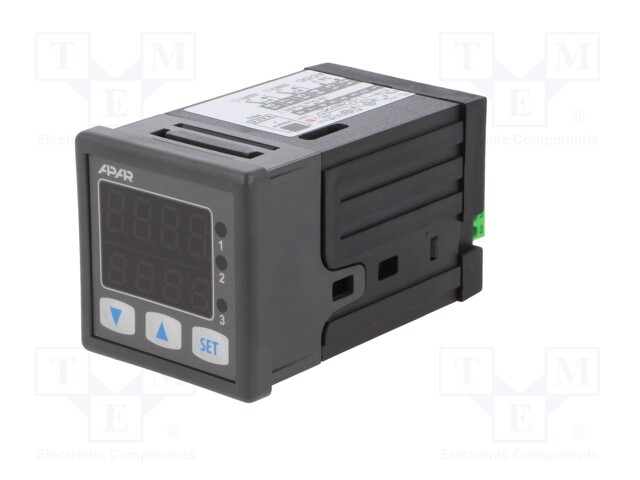

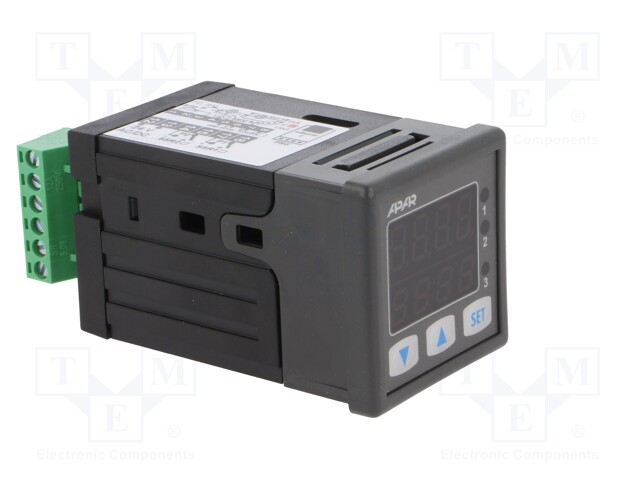

Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; 0÷10V
Kordarv:
1.0
Minimum quantity:
1.0
Sertifikaadid:
Product downloads
Spetsifikatsioon tootele Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; 0÷10V
| Mounting | on panel |
| Supply voltage | 20...50V AC, 20...72V DC, 24V AC, 24V DC |
| Operating temperature | 0...50°C |
| IP rating | IP65 (from the front) |
| Mounting hole diameter | 46x46mm |
| Body dimensions | 48x48x79mm |
| Kind of display used | 2x LED |
| Additional functions | display brightness adjustment, error messages on the LED display, LED status indicator, sensors supply voltage: 24V DC / 30mA, temperature compensation of thermocouple cold ends |
| Kind of input 1 | 0...10V, 0...2,5kΩ, 0...60mV, 0/4...20mA, universal |
| Kind of temperature sensor | Ni100, Pt100, thermocouple B, thermocouple J, thermocouple K, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| The programming method | foil keypad |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | 0...10V |
| Input 1 properties | analogue voltage, current analog, RTD, thermocouple |
| Display height 1 | 9mm |
| Regulation for output 1 | AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID |
| Regulation for output 2 | ON-OFF with hysteresis |
| Display 2 height | 7mm |
