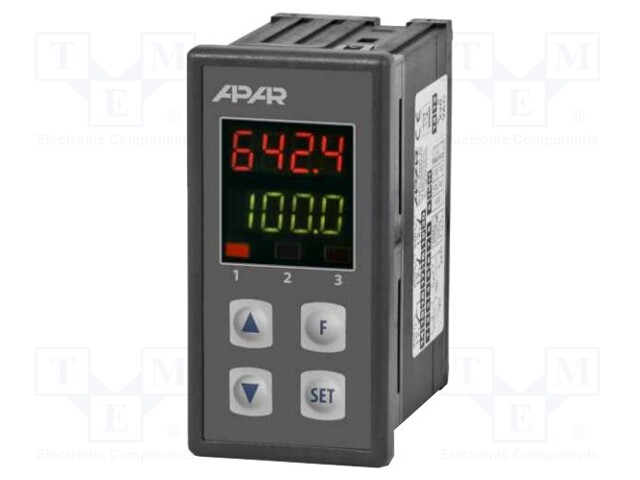

Module: regulator; temperature; SPDT; OUT 2: SPST-NO; SPST-NO

Kordarv: 1.0

Minimum quantity: 1.0

Tootekood: AR642/S1/P/P/WA/P
Tootja: APAR
Tootja tootekood: AR642/S1/P/P/WA/P
Sertifikaadid:

Seda kombinatsiooni ei eksisteeri.

Mounting	on panel
Supply voltage	85...260V AC, 230V AC
Operating temperature	0...50°C
IP rating	IP65 (from the front)
Mounting hole diameter	46x92mm
Body dimensions	48x96x79mm
Kind of display used	2x LED
Additional functions	display brightness adjustment, error messages on the LED display, LED status indicator, sensors supply voltage: 24V DC / 30mA, temperature compensation of thermocouple cold ends
Kind of input 1	0...10V, 0...2,5kΩ, 0...60mV, 0/4...20mA, universal
Kind of temperature sensor	Ni100, Pt100, thermocouple B, thermocouple J, thermocouple K, thermocouple R, thermocouple S, thermocouple T
Controlled parameter	temperature
Kind of output 1	SPDT
The programming method	foil keypad
Kind of output 2	SPST-NO
Kind of output 3	SPST-NO
Kind of output 4	0/4...20mA
Input 1 properties	analogue voltage, current analog, RTD, thermocouple
Display height 1	9mm
Regulation for output 1	AUTOTUNING, ON-OFF with hysteresis, PID
Regulation for output 2	ON-OFF with hysteresis
Display 2 height	9mm
