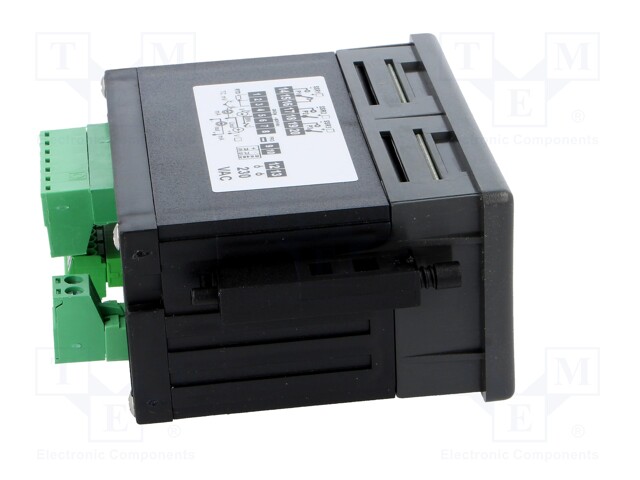

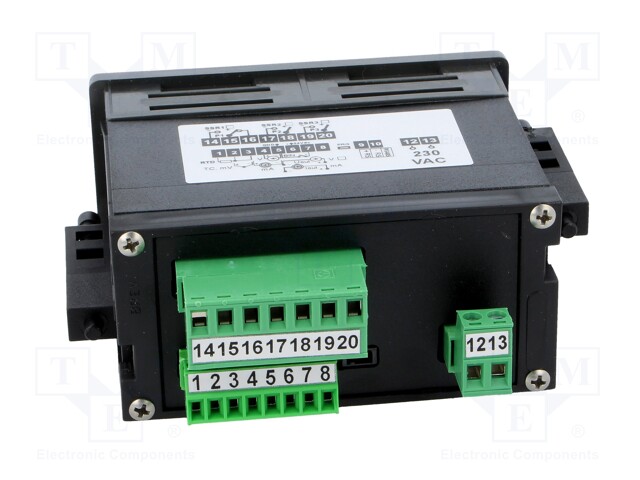

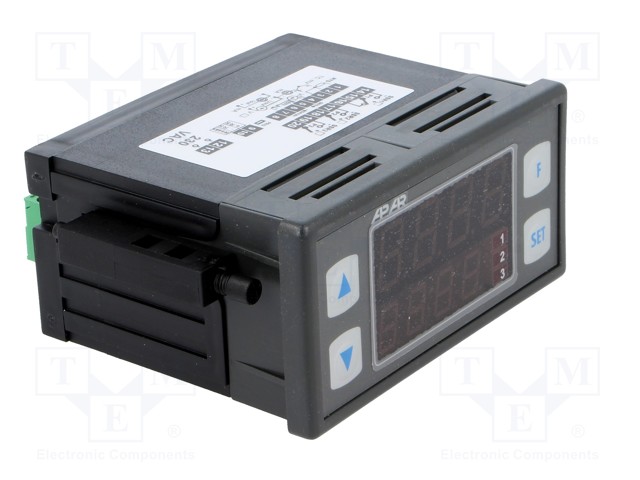

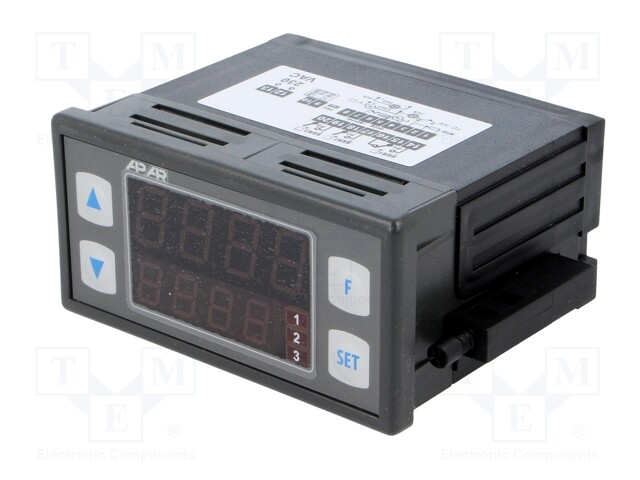

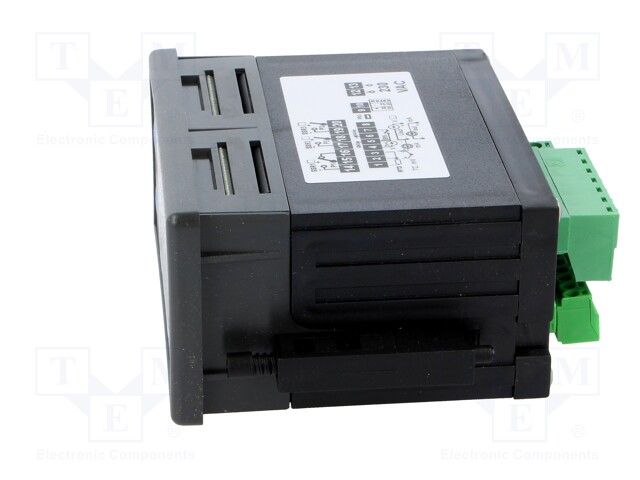

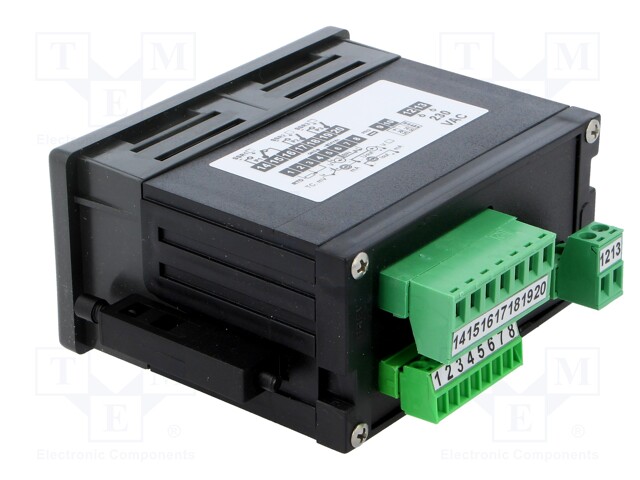

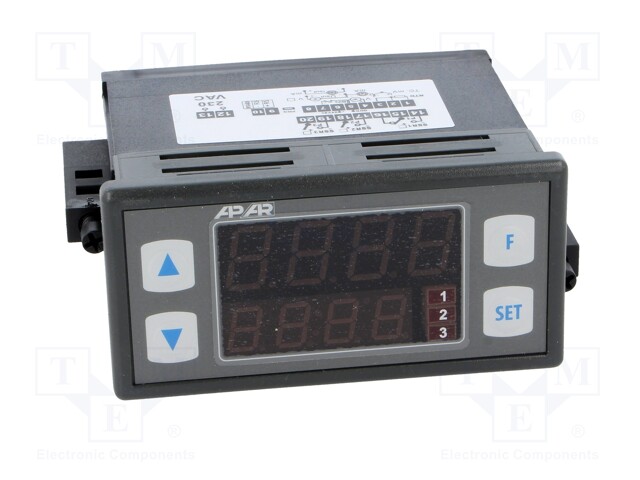

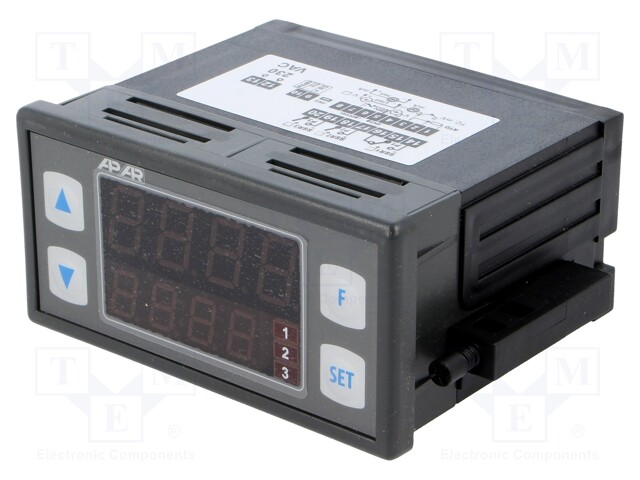

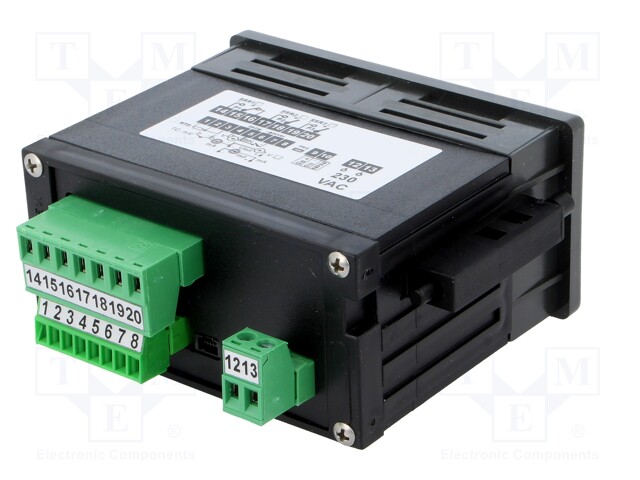

Module: regulator; temperature; relay; OUT 2: relay; relay; panel

Kordarv: 1.0

Minimum quantity: 1.0

Tootekood: AR652/S1/P/P/WA/P
Tootja: APAR
Tootja tootekood: AR652/S1/P/P/WA/P
Sertifikaadid:

Seda kombinatsiooni ei eksisteeri.

Mounting	on panel
Supply voltage	85...260V AC, 230V AC
Operating temperature	0...50°C
IP rating	IP65 (from the front)
Mounting hole diameter	92x44mm
Body dimensions	Ø96x48mm
Power consumption	3VA
Kind of display used	2x LED
Additional functions	display brightness adjustment, error messages on the LED display, LED status indicator, sensors supply voltage: 24V DC / 30mA, temperature compensation of thermocouple cold ends
Measurement accuracy	0.2%
Kind of input 1	0...10V, 0...20mA, 0...60mV, 4...20mA
Kind of temperature sensor	Ni100, Pt100, thermocouple B, thermocouple J, thermocouple K, thermocouple R, thermocouple S, thermocouple T
Controlled parameter	temperature
Kind of output 1	relay
The programming method	foil keypad
Kind of output 2	relay
Kind of output 3	relay
Kind of output 4	analogue
Input 1 properties	analogue voltage, current analog, RTD, thermocouple
Display height 1	14mm
Regulation for output 1	AUTOTUNING, ON-OFF with hysteresis, PID
Regulation for output 2	ON-OFF with hysteresis
Display 2 height	10mm
