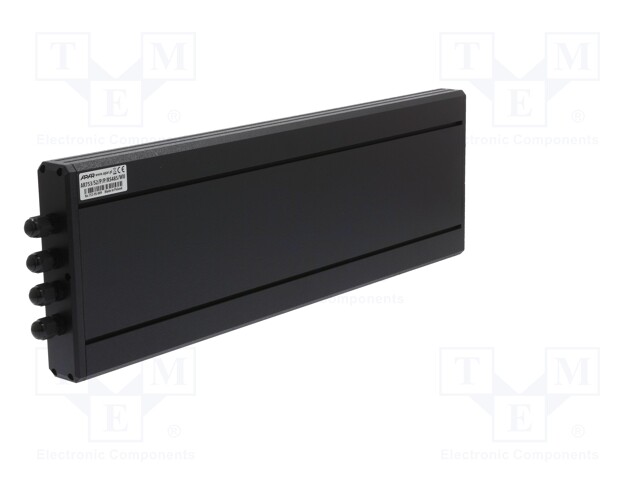

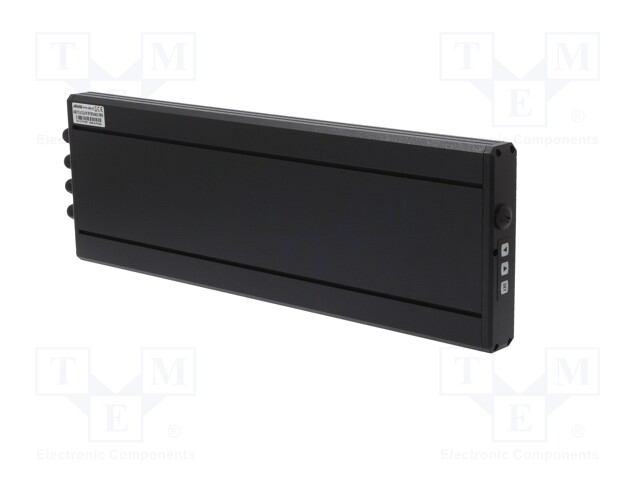

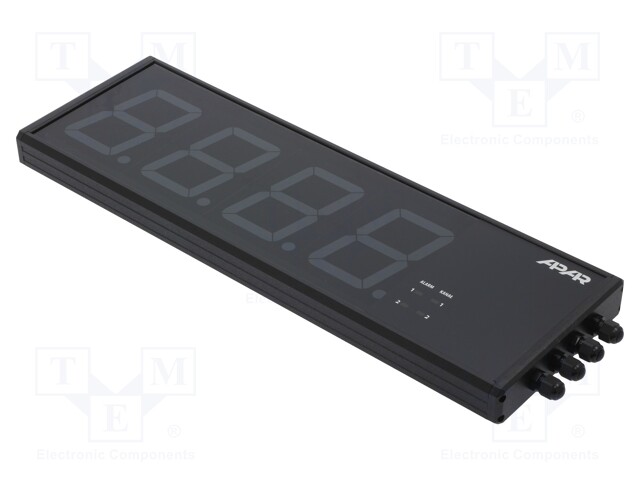

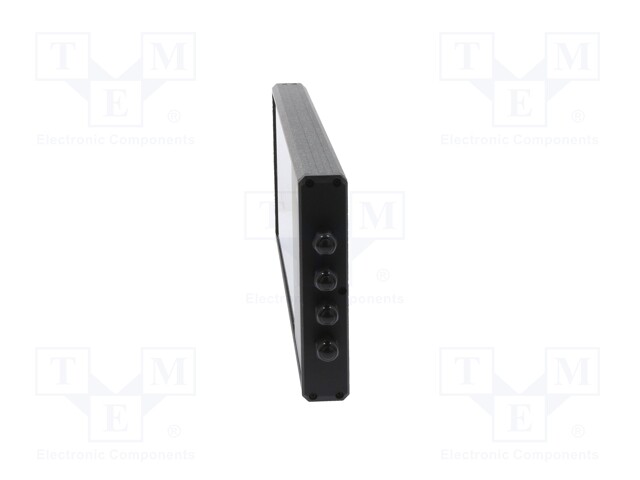

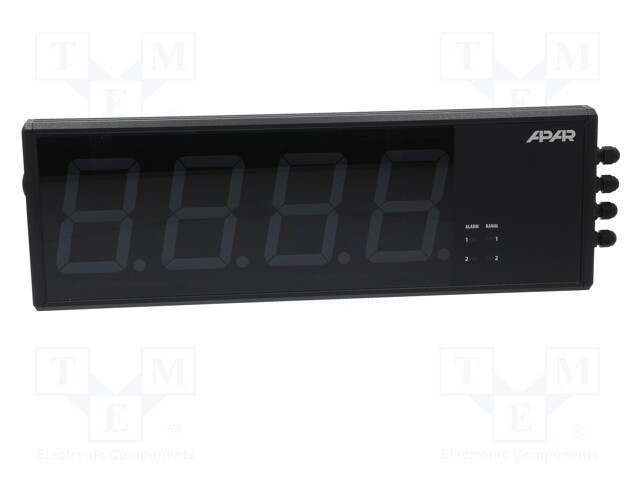

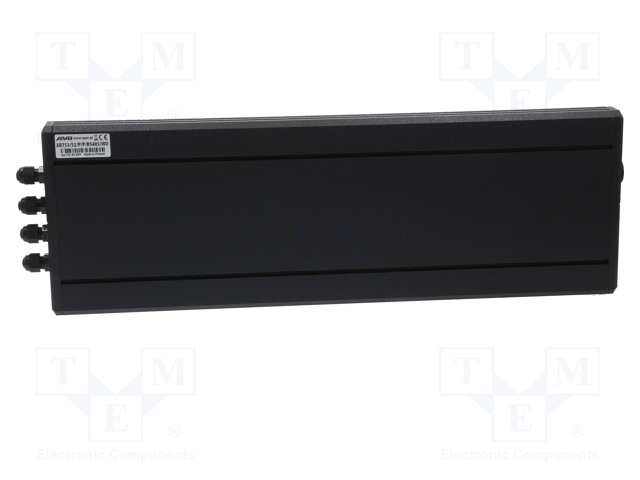

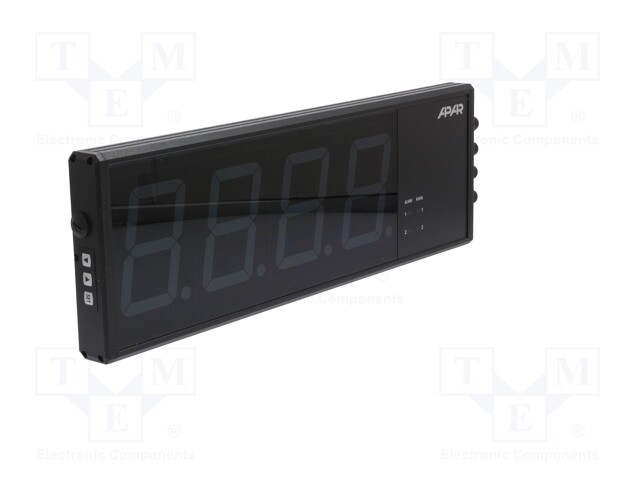

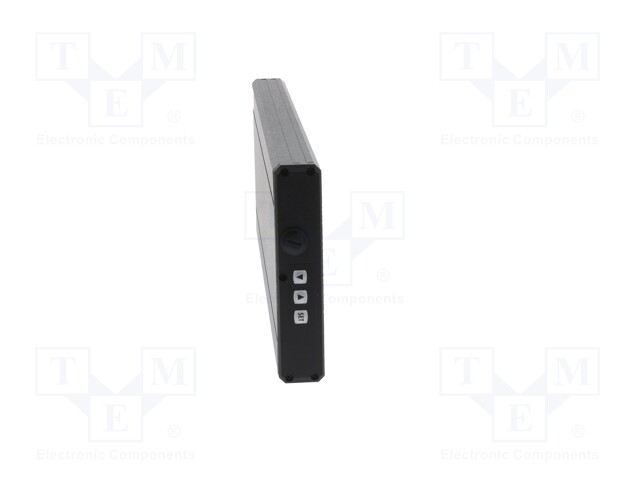

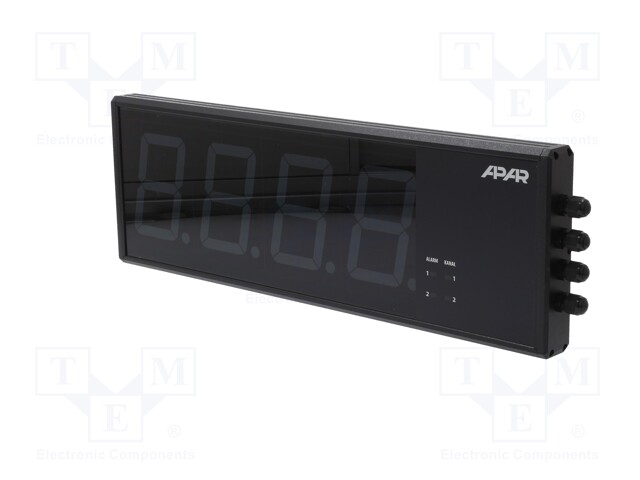

Module: regulator; pressure,speed,temperature,humidity; SPST-NO
Kordarv:
1.0
Minimum quantity:
1.0
Sertifikaadid:
Product downloads
Spetsifikatsioon tootele Module: regulator; pressure,speed,temperature,humidity; SPST-NO
| Mounting | for wall mounting |
| Supply voltage | 24V AC, 24V DC |
| Operating temperature | 0...50°C |
| IP rating | IP51 |
| Interface | RS485 |
| Body dimensions | 500x166x35mm |
| Kind of display used | LED |
| Additional functions | display brightness adjustment, error messages on the LED display, LED status indicator, locked by password, temperature compensation of thermocouple cold ends |
| Kind of input 1 | 0...10V, 0...2500Ω, 0...60mV, 0/4...20mA |
| Kind of temperature sensor | Ni100, Pt100, Pt1000, Pt50, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | humidity, pressure, speed, temperature |
| Kind of output 1 | SPST-NO |
| The programming method | keypad, RS485 |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | 0/2...10V |
| Input 1 properties | analogue voltage, current analog, RTD, thermocouple |
| Display height 1 | 100mm |
