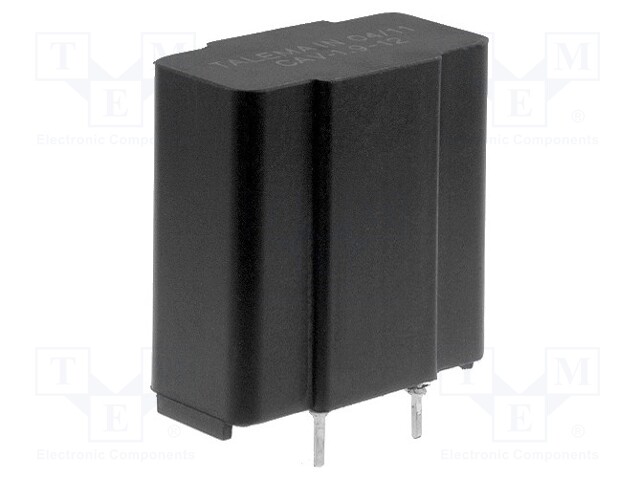

Inductor: wire; THT; 12mH; 1.9A; 149mΩ; 250VAC; -40÷125°C; ±30%

    Kordarv: 375.0
    Minimum quantity: 375.0
    Tootekood: CAV-1.9-12
    Tootja: TALEMA
    Tootja tootekood: CAV-1.9-12
    • Mounting
    • Resistance
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Operating current
    • D dimension
    • Spatial orientation
    • C dimension
    • E dimension
    • F dimension
    • Dimension G
    • Type of inductor
    • Test frequency
    • Inductor application
    • Number of windings
    • Inductance of individual winding
    • Test voltage AC
    • Kind of inductor
    • Kind of inductor

    4,49 € 4,49 € (KM-TA) 4.49 EUR

    4,49 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Inductor: wire; THT; 12mH; 1.9A; 149mΩ; 250VAC; -40÷125°C; ±30%

    Mounting THT
    Resistance 149mΩ
    Operating voltage 250V AC
    Operating temperature -40...125°C
    Tolerance ±30%
    Terminal pitch 15x12.5mm
    Operating current 1.9A
    D dimension 18mm
    Spatial orientation vertical
    C dimension 32.5mm
    E dimension 35mm
    F dimension 15mm
    Dimension G 12.5mm
    Type of inductor wire
    Test frequency 10kHz
    Inductor application mains filters
    Number of windings 2
    Inductance of individual winding 12mH
    Test voltage AC 1.5kV
    Kind of inductor common mode, toroidal
