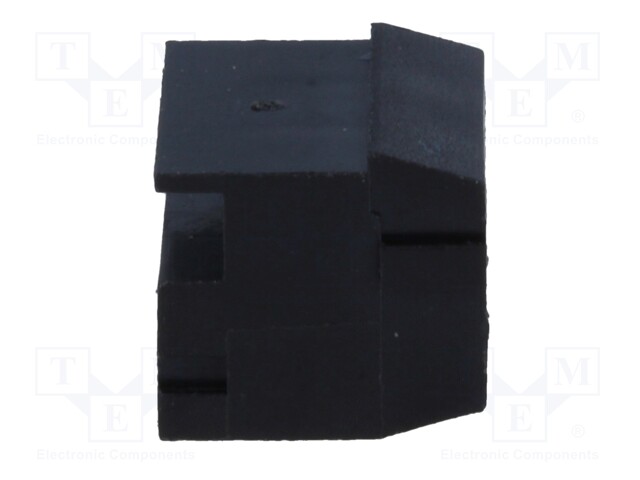

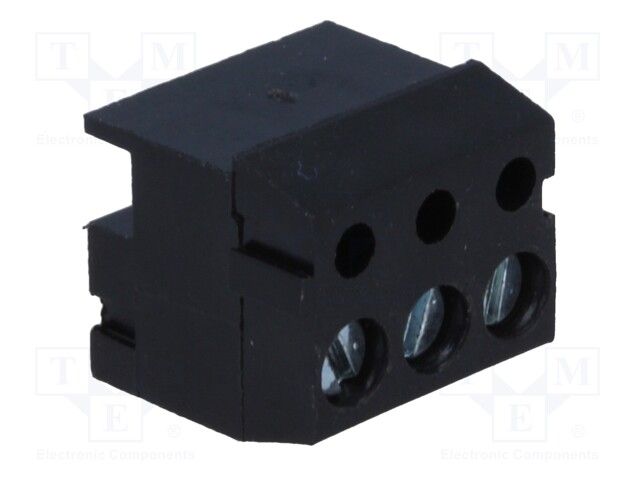

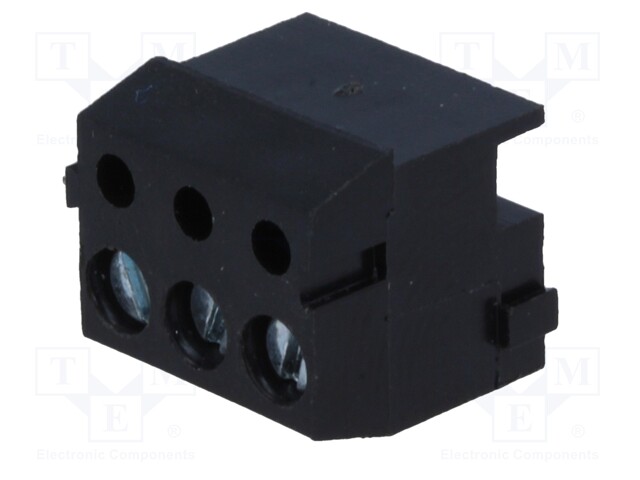

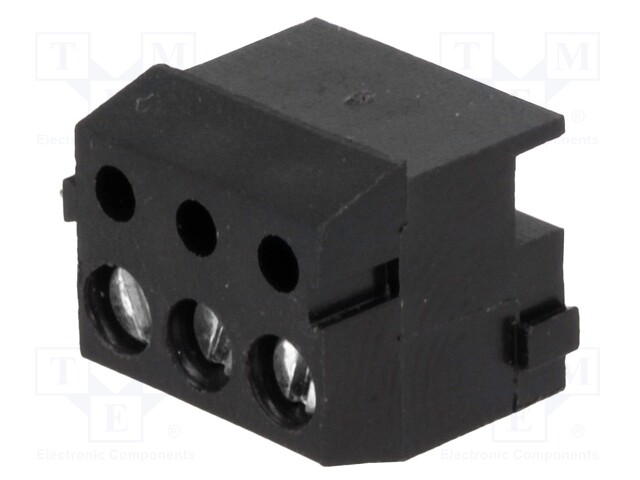

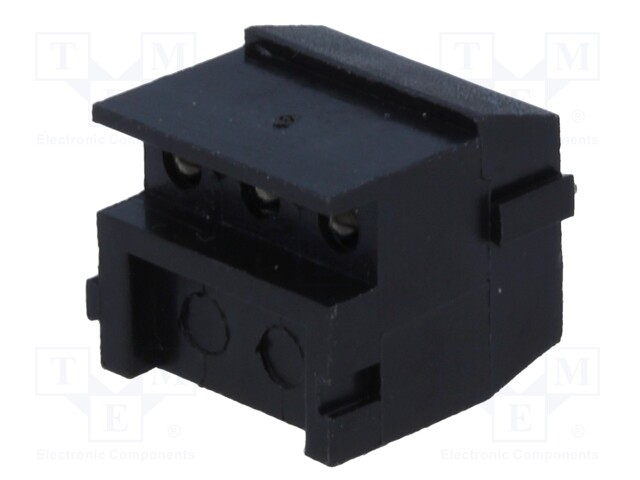

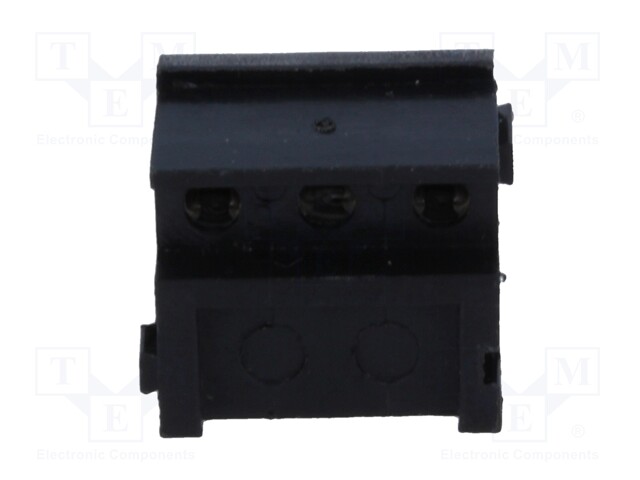

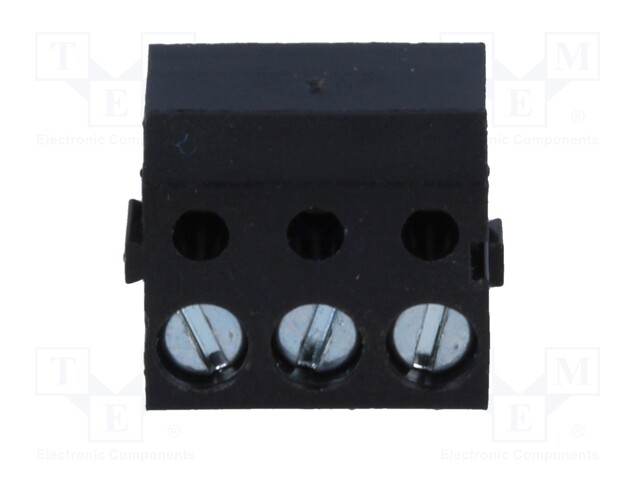

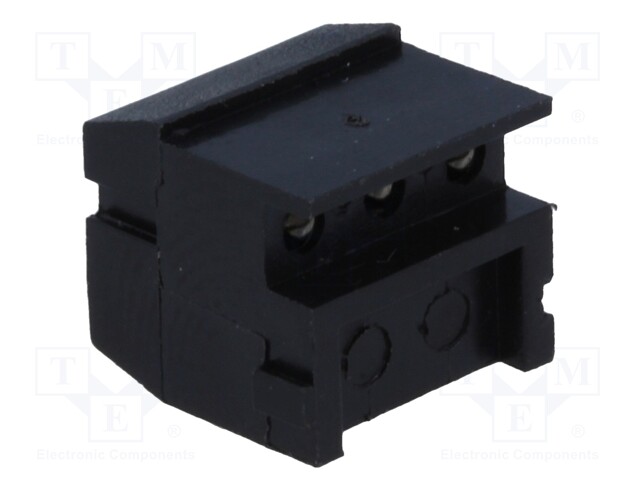

Pluggable terminal block; Contacts ph: 3.5mm; ways: 3; angled 90°

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: DG333K-3.5-03P-13-00AH
    Tootja: DEGSON ELECTRONICS
    Tootja tootekood: DG333K-3.5-03P-13-00AH
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Number of terminals
    • Locking system
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Connectors features
    • Depth

    0,98 € 0,98 € (KM-TA) 0.98 EUR

    0,98 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Pluggable terminal block; Contacts ph: 3.5mm; ways: 3; angled 90°

    Operating temperature -30...120°C
    Contacts pitch 3.5mm
    Electrical mounting pin header, screw terminal
    Connector terminal block
    Kind of connector female
    Mechanical mounting for cable
    Colour black
    Type of connector pluggable terminal block
    Contact material phosphor bronze
    Body material PBT
    Flammability rating UL94V-0
    Height 10mm
    Current rating 8A
    Number of ways 3
    Type of pin configuration 1x3
    Number of terminals 3
    Locking system friction lock
    Connector variant with wire protector
    Conform to the norm CE, UL
    Spatial orientation angled 90°
    Connectors features assembling possibility
    Depth 9.5mm
