Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 0-1393793-6
    Manufacturer: TE Connectivity
    Manufacturer code: 0-1393793-6
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    7.65 € 7.65 € (wo VAT) 7.65 EUR

    7.65 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -25...70°C
    Terminal pitch 5mm

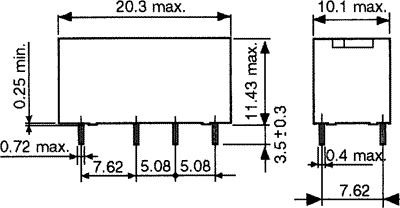

    Body dimensions 20.3x10.1x11.43mm
    Mechanical durability 150000000cycles
    Switched voltage max. 220V DC, max. 250V AC
    Switching capacity 60W, 125VA
    Coil resistance 62Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 3A
    Relay variant miniature
    Coil voltage max. 7.9V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 400mW
    Operate time 10ms
    Release time 10ms
