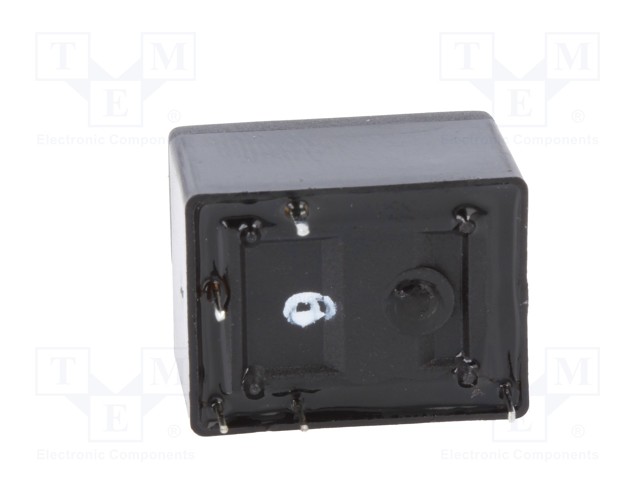

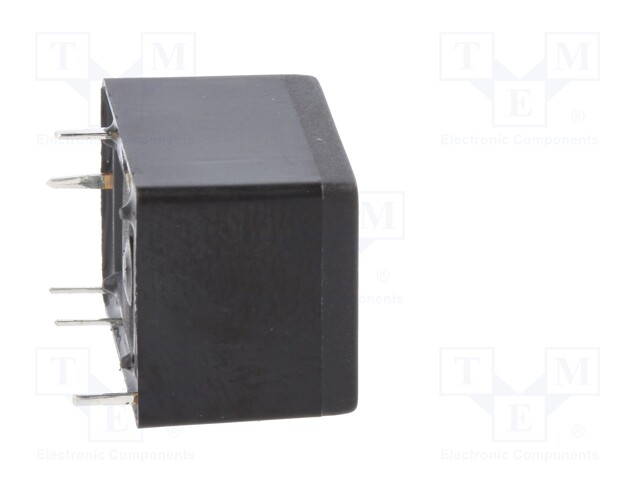

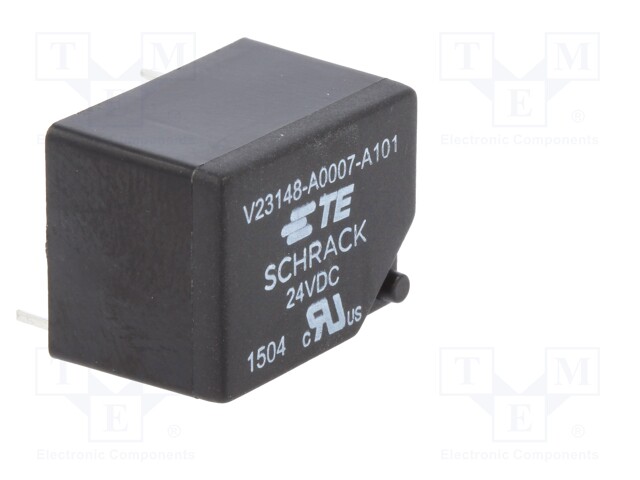

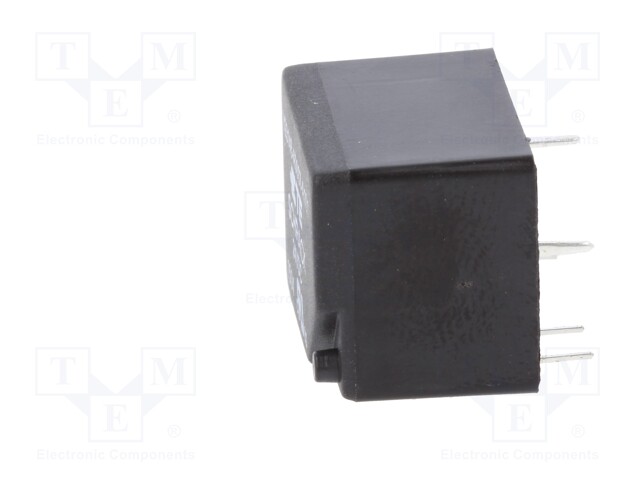

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 7A/250VAC; 7A/24VDC; 5A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1393203-1
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1393203-1
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    14.22 € 14.22 € (wo VAT) 14.22 EUR

    14.22 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 7A/250VAC; 7A/24VDC; 5A

    Mounting PCB
    Operating temperature -25...70°C
    Contact material AgNi 90/10
    Terminal pitch 5.08mm
    Body dimensions 21.2x16.2x14.9mm
    Switched voltage max. 60V DC, max. 400V AC
    Switching capacity 1.75kVA
    Coil resistance 1.28kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 7A / 24V DC
    AC contacts rating @R 7A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 450mW
    Operate time 5ms
    Release time 3ms
