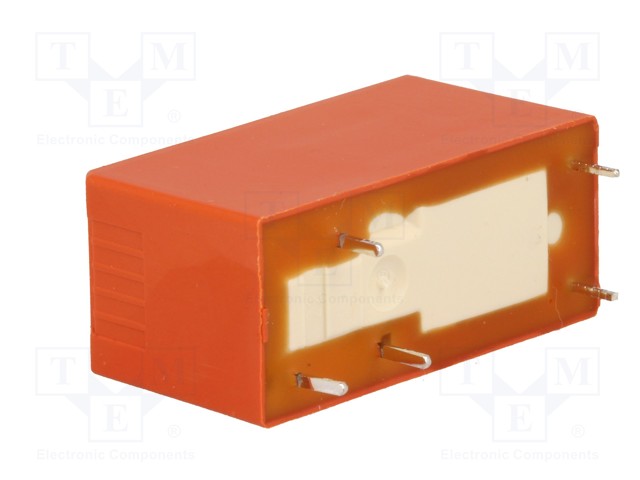

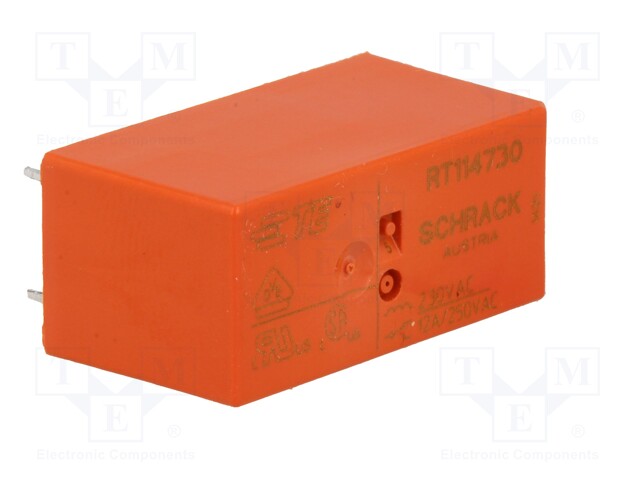

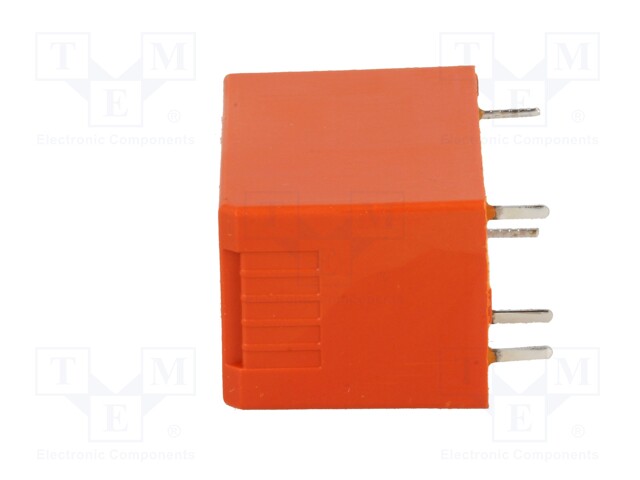

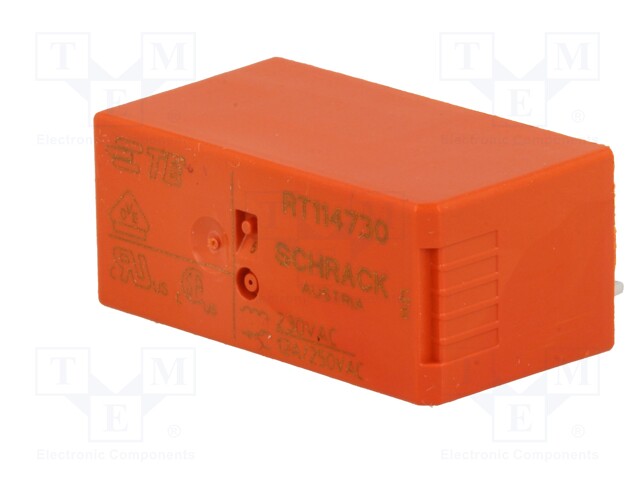

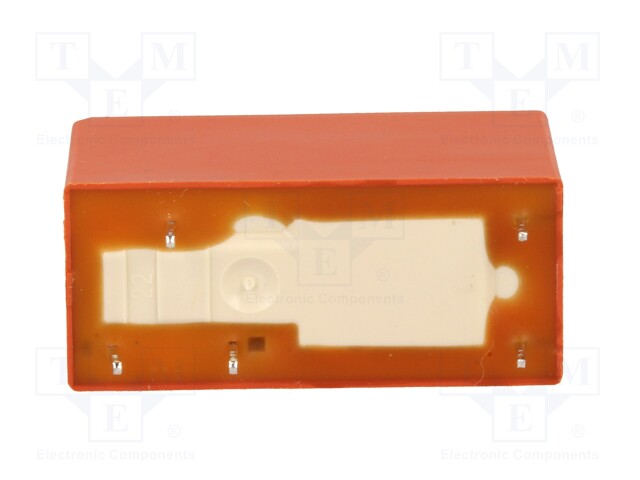

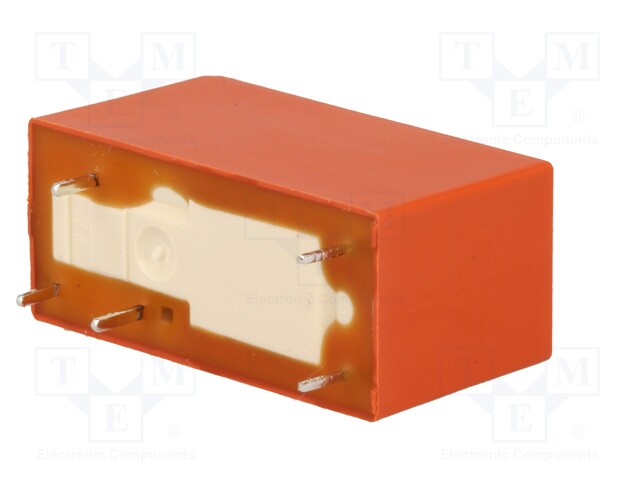

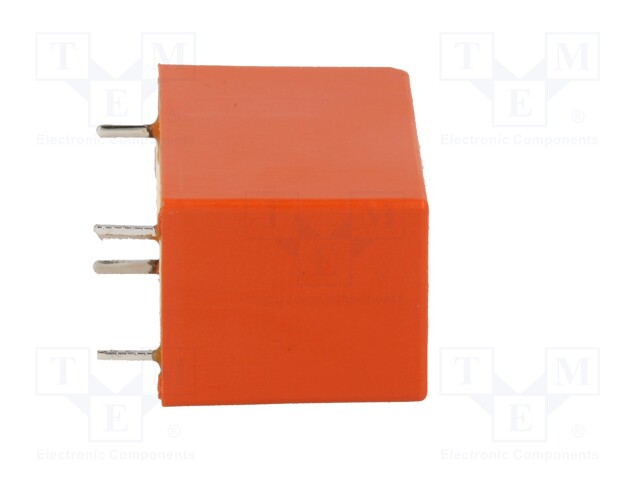

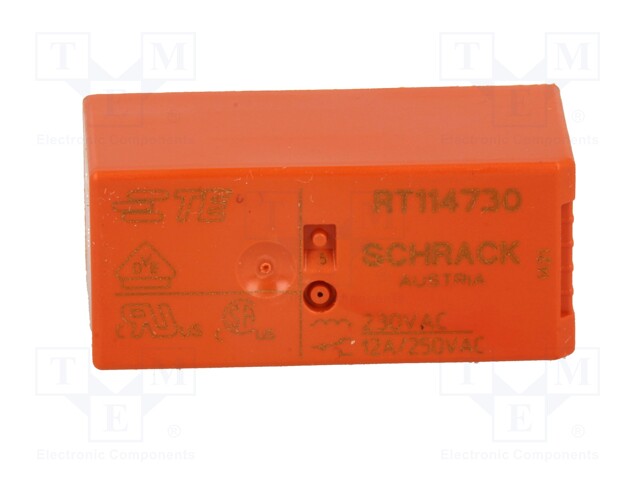

Relay: electromagnetic; SPDT; Ucoil: 230VAC; 12A/250VAC; 12A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1393239-9
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1393239-9
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Switching capacity
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    11.79 € 11.79 € (wo VAT) 11.790000000000001 EUR

    11.79 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 230VAC; 12A/250VAC; 12A/24VDC

    Mounting THT
    Operating temperature -40...70°C
    IP rating IP40
    Number of pins 5
    Contact material AgNi
    Terminal pitch 3.5mm
    Height 15.7mm
    Body dimensions 29x15.7x12.7mm
    Mechanical durability 10000000cycles
    Switched voltage max. 300V DC, max. 400V AC
    Max surge current 25A
    Switching capacity 3kVA
    Coil resistance 32.5kΩ
    Contacts configuration SPDT
    DC contacts rating @R 12A / 24V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 12A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 740mVA
