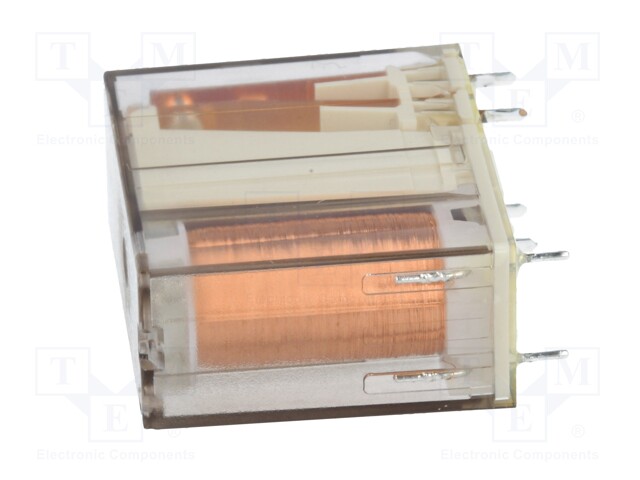

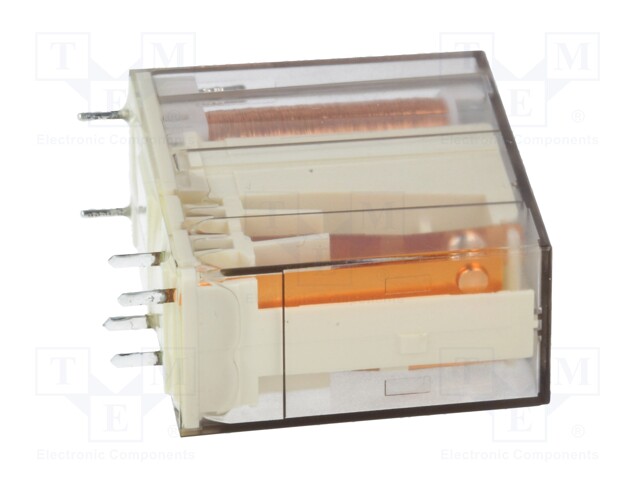

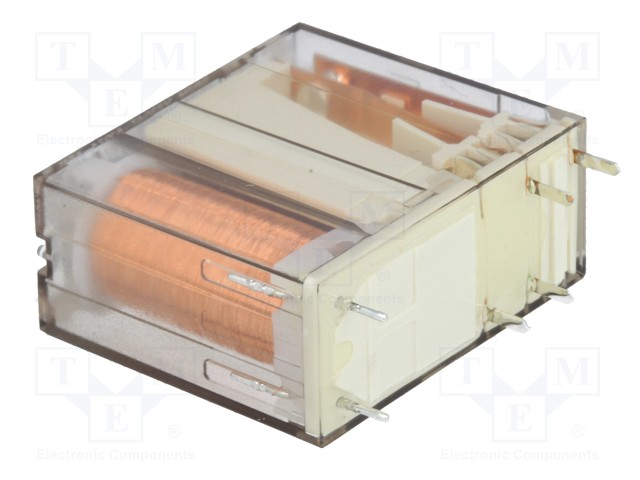

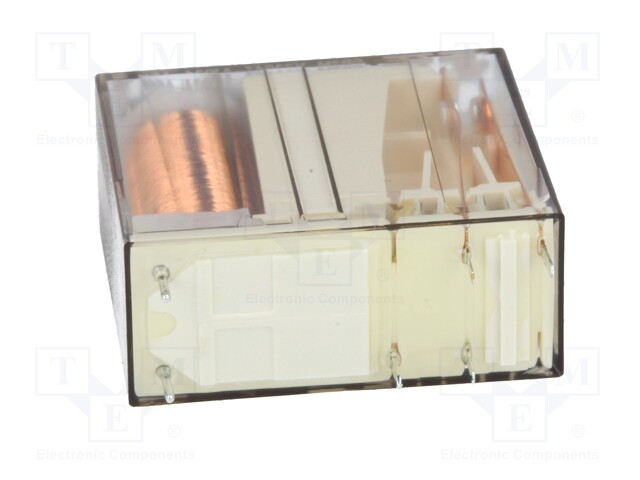

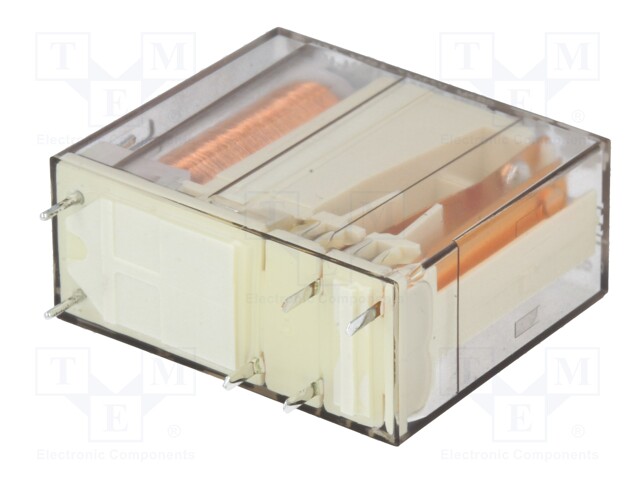

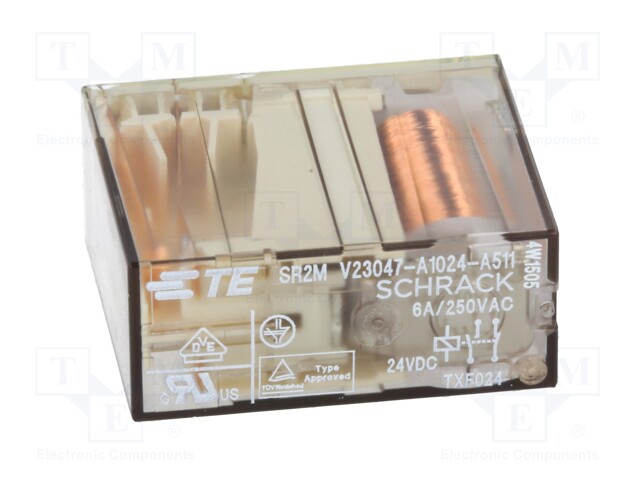

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC; 6A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1393258-7
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1393258-7
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    10.28 € 10.28 € (wo VAT) 10.28 EUR

    10.28 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC; 6A

    Mounting PCB
    Operating temperature -25...70°C
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 29x12.6x25.5mm
    Mechanical durability 100000000cycles
    Switched voltage max. 250V DC, max. 400V AC
    Coil resistance 823Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant safety
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 700mW
    Operate time 10ms
    Release time 4ms
