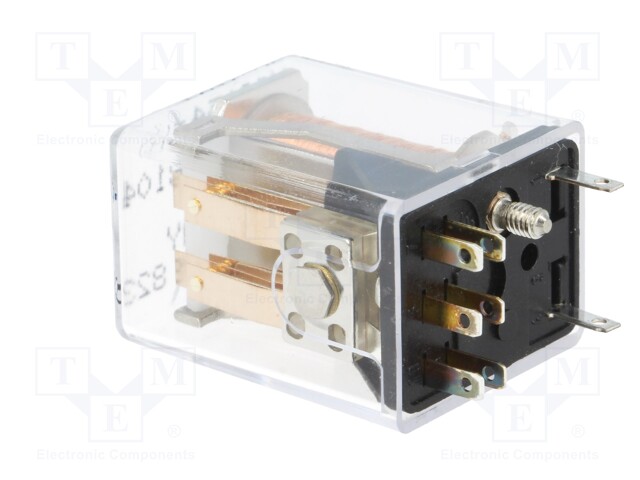

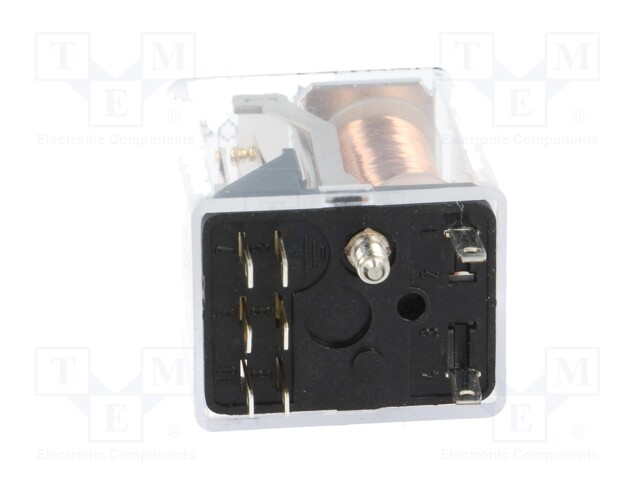

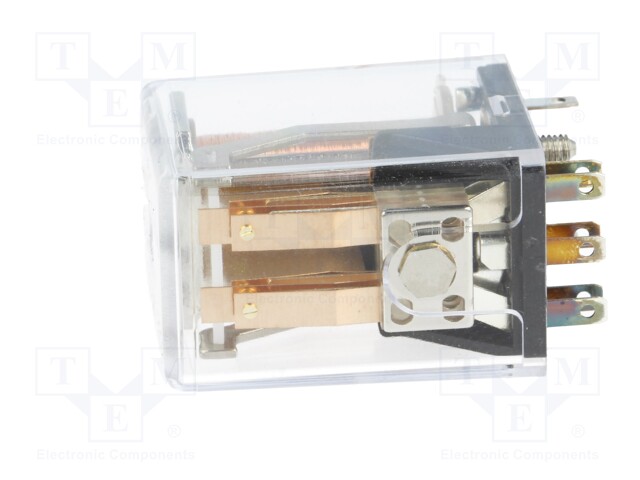

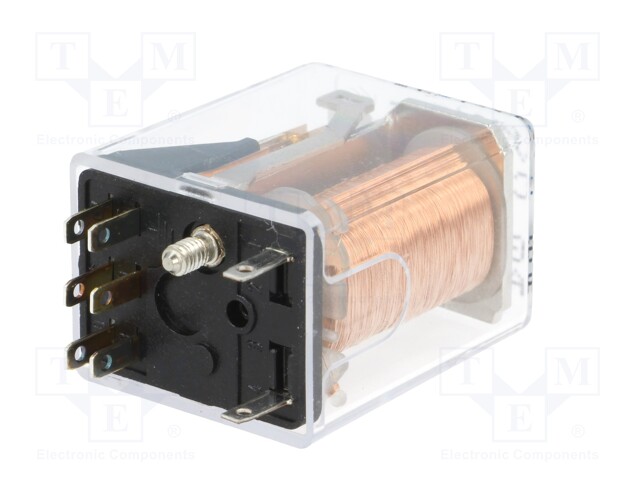

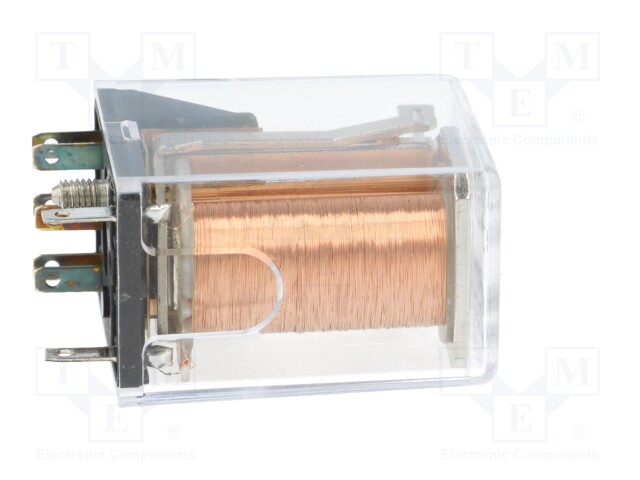

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; miniature; 700Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1393806-1
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1393806-1
    • Mounting
    • Operating temperature
    • Contact plating
    • Leads
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; miniature; 700Ω

    Mounting socket
    Operating temperature -40...70°C
    Contact plating gold-plated
    Leads for soldering
    Contact material silver alloy
    Body dimensions 24x19x30mm
    Coil resistance 700Ω
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    Contact current max. 2A
    Relay variant miniature
    Coil voltage max. 36V DC
    Type of relay electromagnetic
    Coil voltage min. 11.2V DC
    Coil power consumption 823mW
