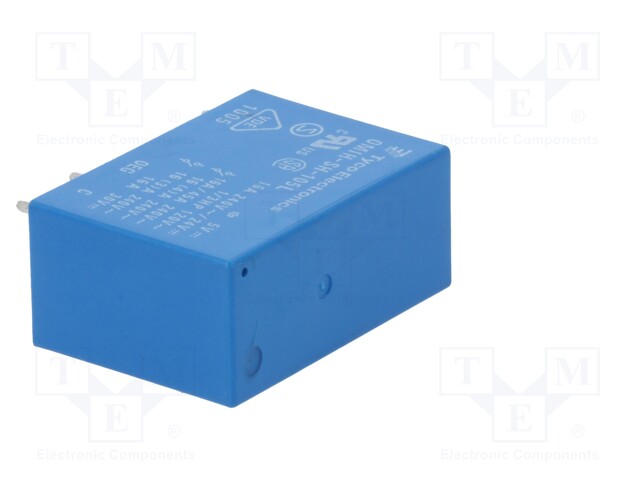

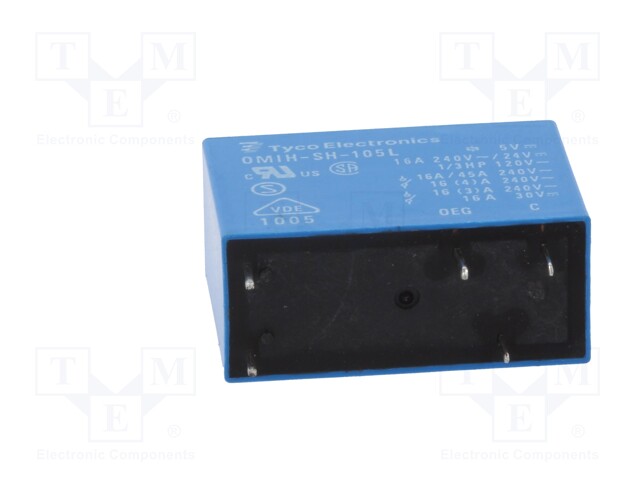

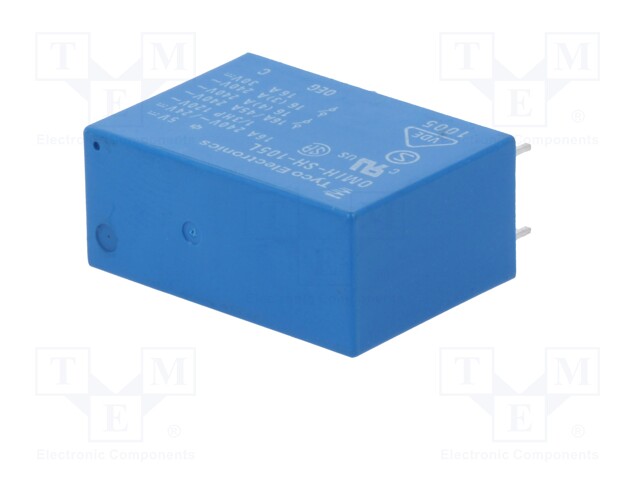

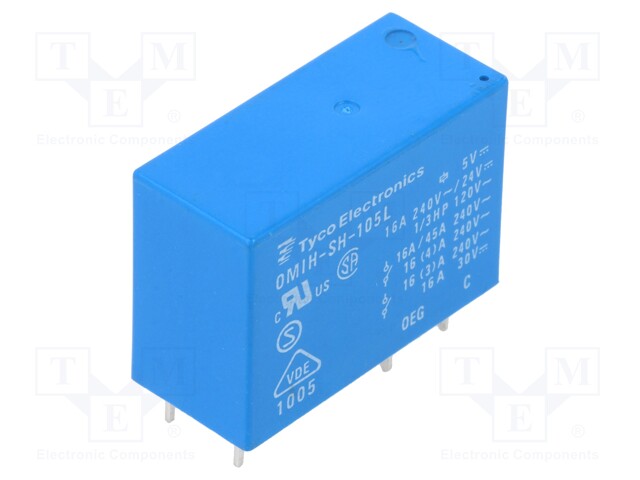

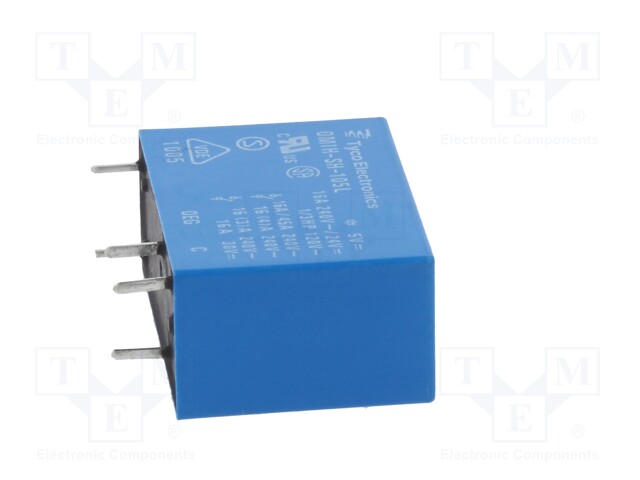

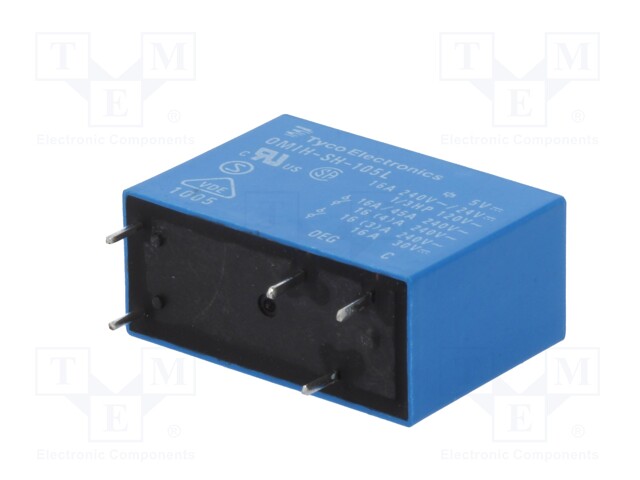

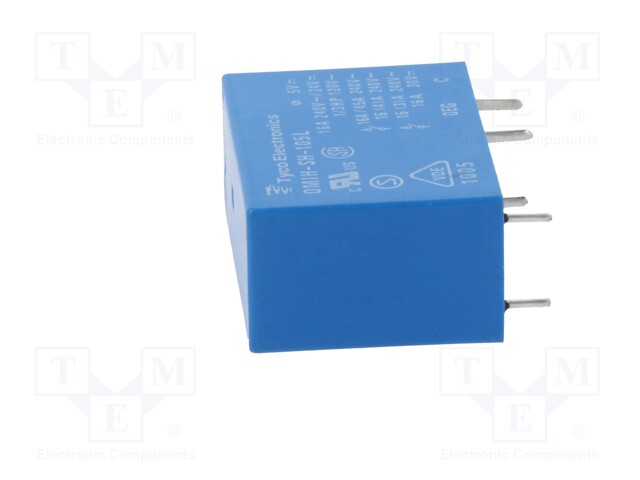

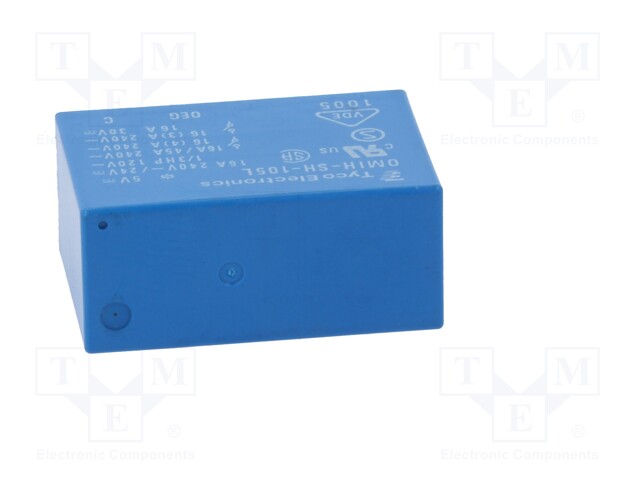

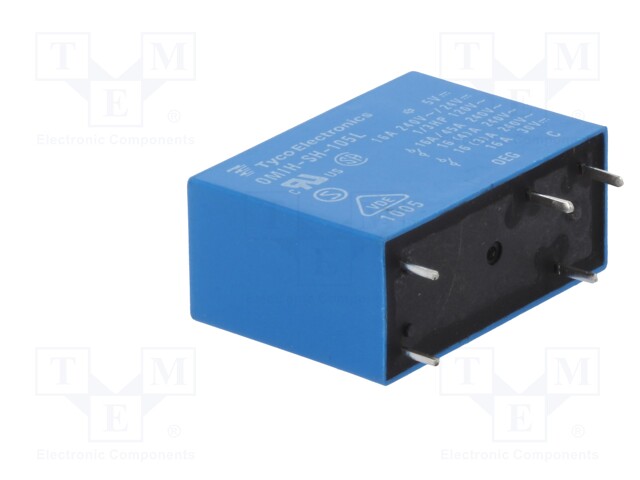

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; 16A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1-1461373-1
    Manufacturer: TE Connectivity
    Manufacturer code: 1-1461373-1
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    6.15 € 6.15 € (wo VAT) 6.15 EUR

    6.15 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; 16A

    Mounting PCB
    Operating temperature -30...70°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 3.5mm

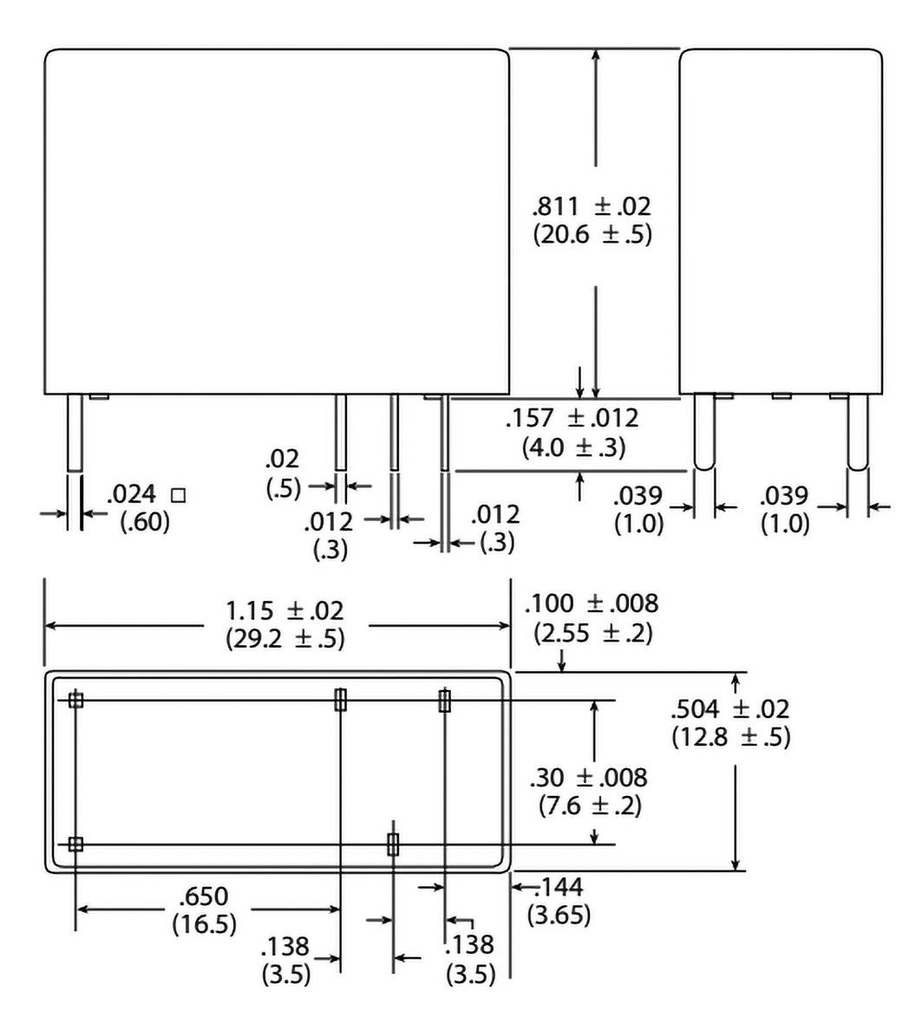

    Body dimensions 29.2x12.8x20.6mm
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 48.5Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 540mW
