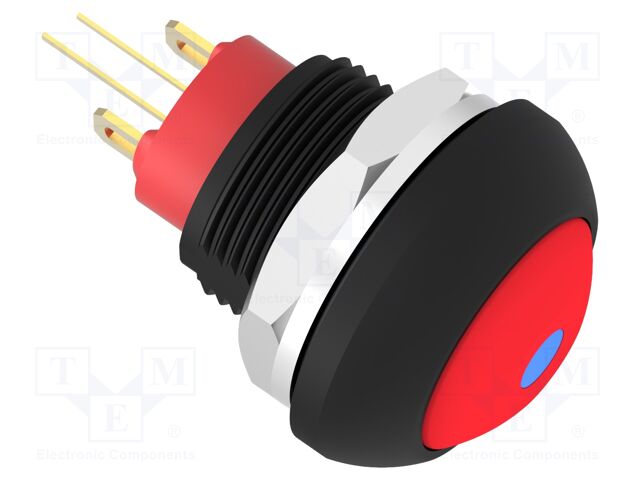

Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/50VDC

    Multiples: 1.0
    Minimum quantity: 100.0
    Product code: 1-2329387-0
    Manufacturer: TE Connectivity
    Manufacturer code: 1-2329387-0
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Flammability rating
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Backlight colour
    • Illumination
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Key stroke
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape

    5.46 € 5.46 € (wo VAT) 5.46 EUR

    5.46 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.2A/50VDC

    Mounting on panel
    Operating temperature -30...85°C
    IP rating IP68
    Type of switch push-button
    Contact plating gold-plated
    Number of positions 2
    Leads connectors
    Contact material copper alloy
    Max. contact resistance: 50mΩ
    Flammability rating UL94V-0
    Mounting hole diameter Ø13.6mm
    Body colour black
    Mechanical durability 1000000cycles
    Backlight colour blue
    Illumination LED, point
    Min. insulation resistance 1GΩ
    Electrical life 500000cycles
    Key stroke 1.5mm
    Contacts configuration SPST-NO
    DC contacts rating @R 0.2A / 50V DC
    AC contacts rating @R 0.125A / 125V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Actuator colour red
    Button shape round
