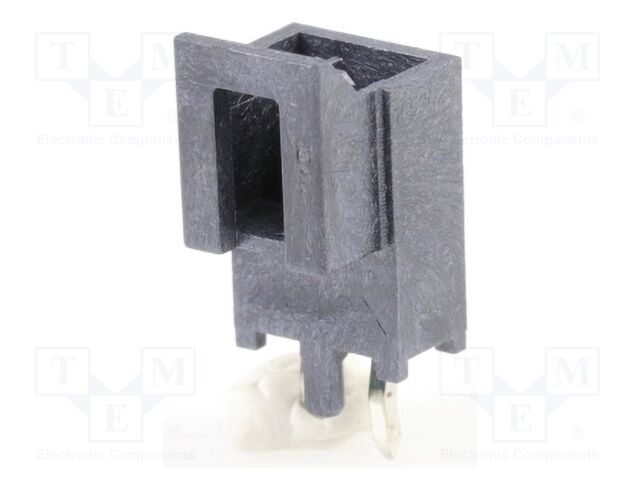

Connector: wire-board

    Multiples: 1.0
    Minimum quantity: 93.0
    Product code: 105309-1302
    Manufacturer: MOLEX
    Manufacturer code: 105309-1302
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Max. contact resistance:
    • Body material
    • Maximum current
    • Body colour
    • Locking system
    • Connector variant
    • Spatial orientation

    1.64 € 1.64 € (wo VAT) 1.6400000000000001 EUR

    1.64 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Connector: wire-board

    Operating temperature -40...125°C
    Contacts pitch 2.5mm
    Electrical mounting THT
    Connector plug
    Kind of connector male
    Mechanical mounting on PCBs
    Contact plating gold-plated
    Type of connector wire-board
    Number of pins 2
    Contact material brass
    Max. contact resistance: 10mΩ
    Body material LCP
    Maximum current 8A
    Body colour black
    Locking system for latch
    Connector variant Glow-Wire
    Spatial orientation vertical
