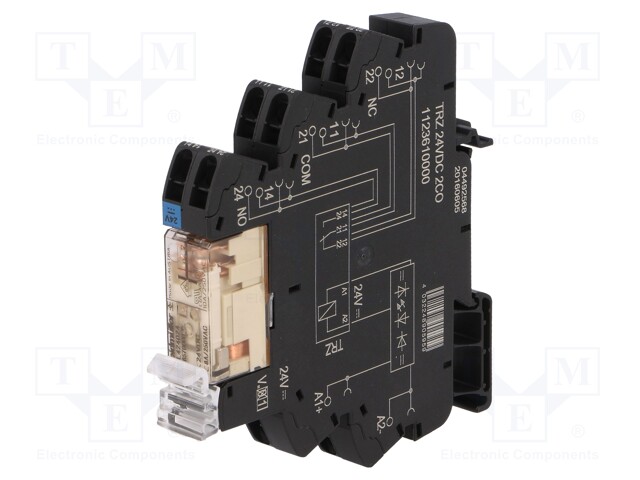

Relay: interface; DPDT; Ucoil: 24VDC; 8A; Uswitch: max.250VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1123610000
    Manufacturer: WEIDMÜLLER
    Manufacturer code: 1123610000
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • Relay variant
    • Type of relay

    18.98 € 18.98 € (wo VAT) 18.98 EUR

    18.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; DPDT; Ucoil: 24VDC; 8A; Uswitch: max.250VDC

    Mounting for DIN rail mounting
    Max. operating current 8A
    Operating temperature -40...60°C
    Leads screw terminals
    Body dimensions 12.8x90x88mm
    Switched voltage max. 250V AC, max. 250V DC
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    Relay variant Relay set
    Type of relay interface
