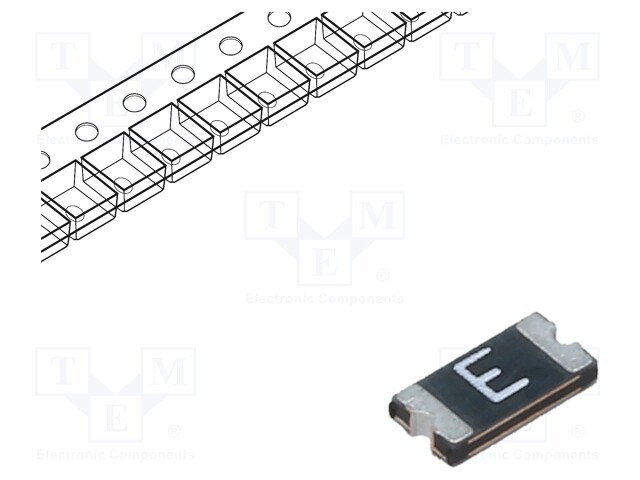

Fuse: PTC polymer; 350mA; 1206L

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1206L035YR
    Manufacturer: LITTELFUSE
    Manufacturer code: 1206L035YR
    • Mounting
    • Case
    • Case
    • Power
    • Operating temperature
    • D dimension
    • Current rating
    • Max surge current
    • B dimension
    • A dimension
    • C dimension
    • E dimension
    • Max resistance
    • Type of fuse
    • Switched current
    • Min. resistance

    0.69 € 0.69 € (wo VAT) 0.6900000000000001 EUR

    0.69 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fuse: PTC polymer; 350mA; 1206L

    Mounting SMD
    Case 1206, 3216
    Power 600mW
    Operating temperature -40...85°C
    D dimension 0.75mm
    Current rating 350mA
    Max surge current 100A
    B dimension 1.8mm
    A dimension 3.5mm
    C dimension 0.75mm
    E dimension 0.45mm
    Max resistance 1.2Ω
    Type of fuse PTC polymer
    Switched current 750mA
    Min. resistance 300mΩ
