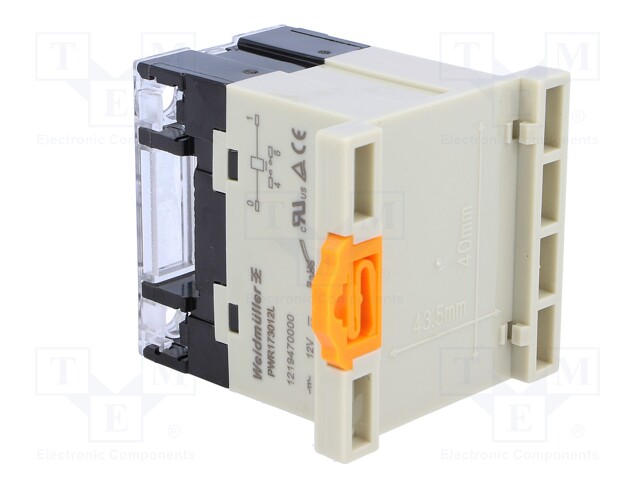

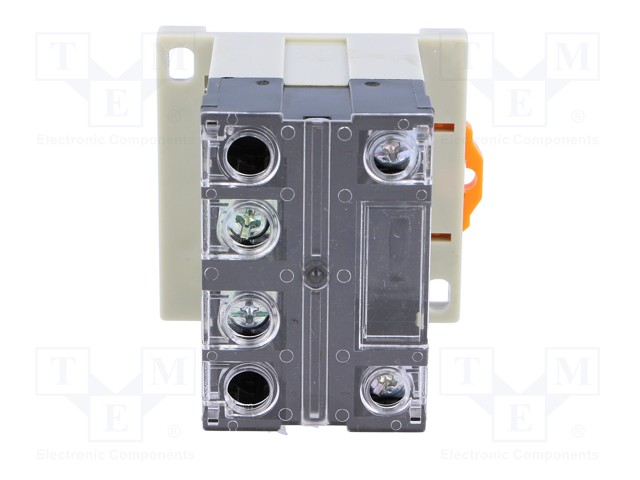

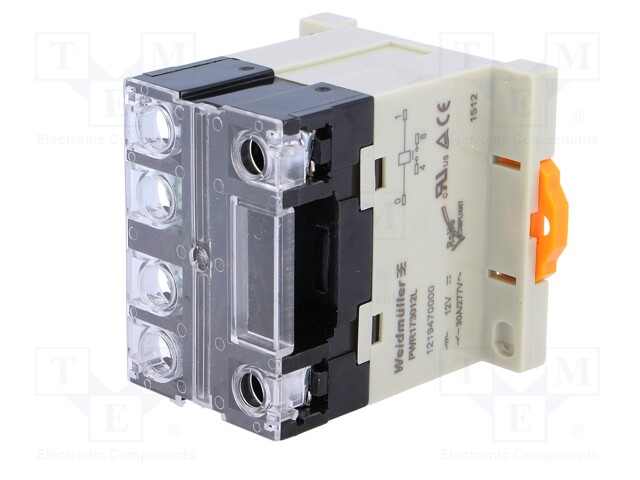

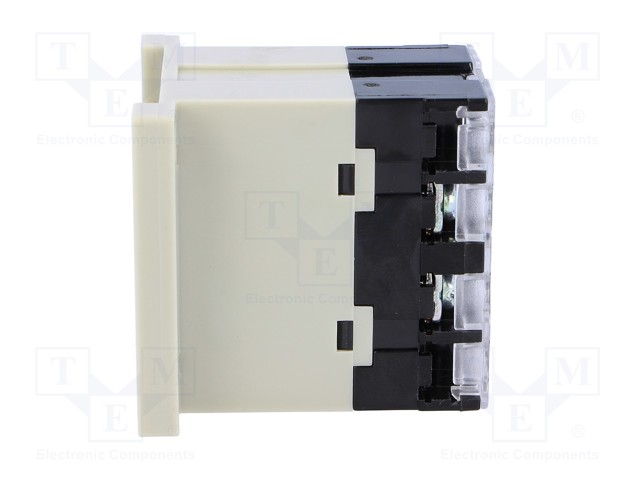

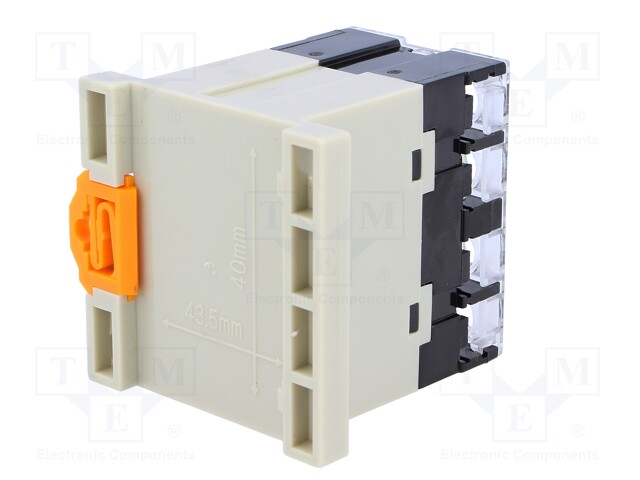

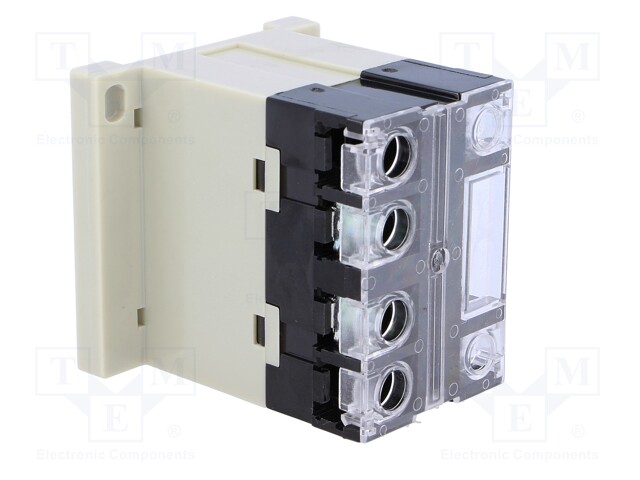

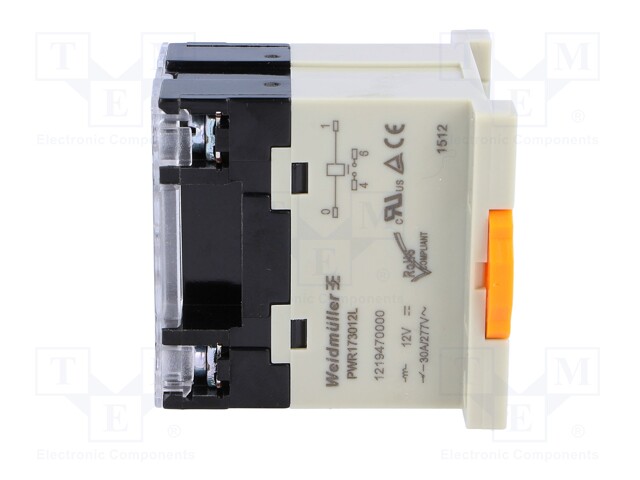

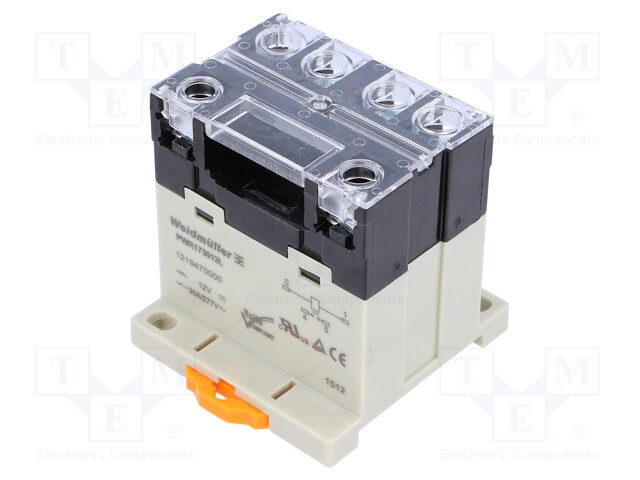

Relay: electromagnetic; SPST-NO; 12VDC; 30A; max.277VAC; Rcoil: 75Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1219470000
    Manufacturer: WEIDMÜLLER
    Manufacturer code: 1219470000
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    20.23 € 20.23 € (wo VAT) 20.23 EUR

    20.23 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; 12VDC; 30A; max.277VAC; Rcoil: 75Ω

    Mounting on panel, for DIN rail mounting
    Operating temperature -25...55°C
    Leads screw terminals
    Contact material AgNi

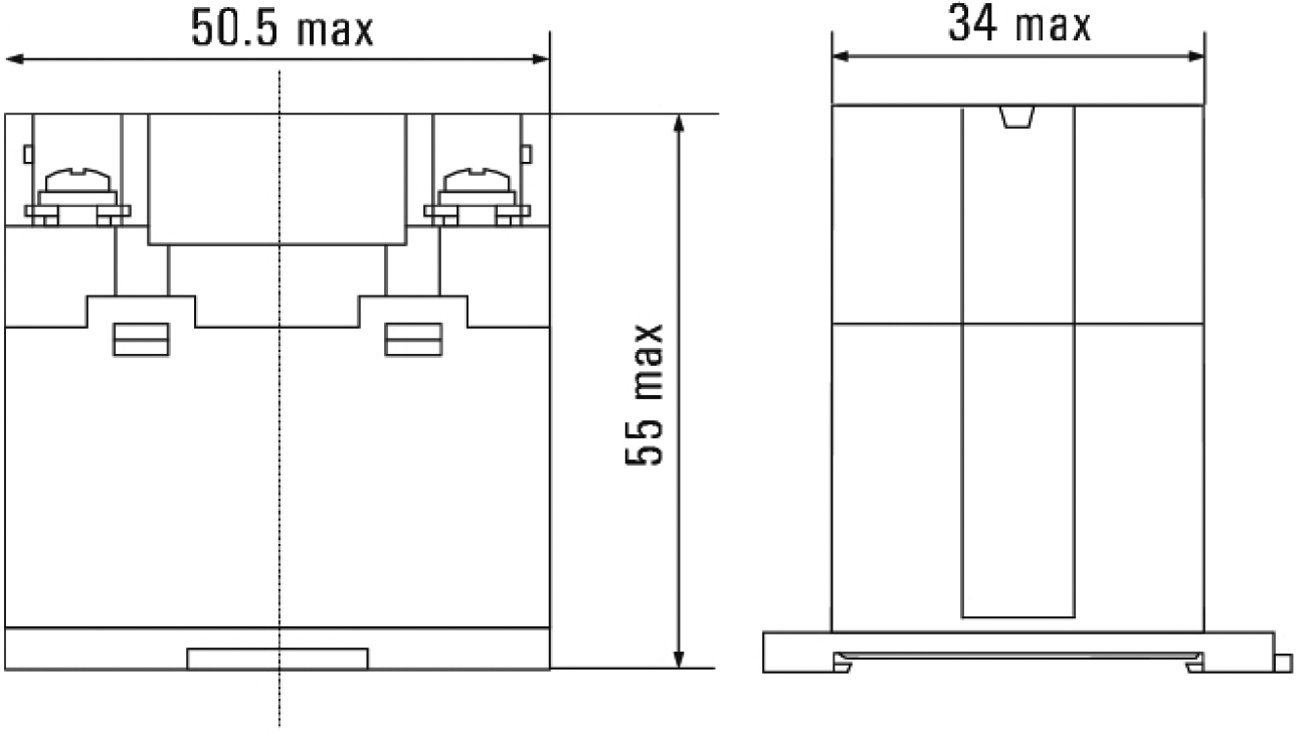

    Body dimensions 50.5x55x34mm
    Switched voltage max. 277V AC
    Coil resistance 75Ω
    Rated coil voltage 12V DC

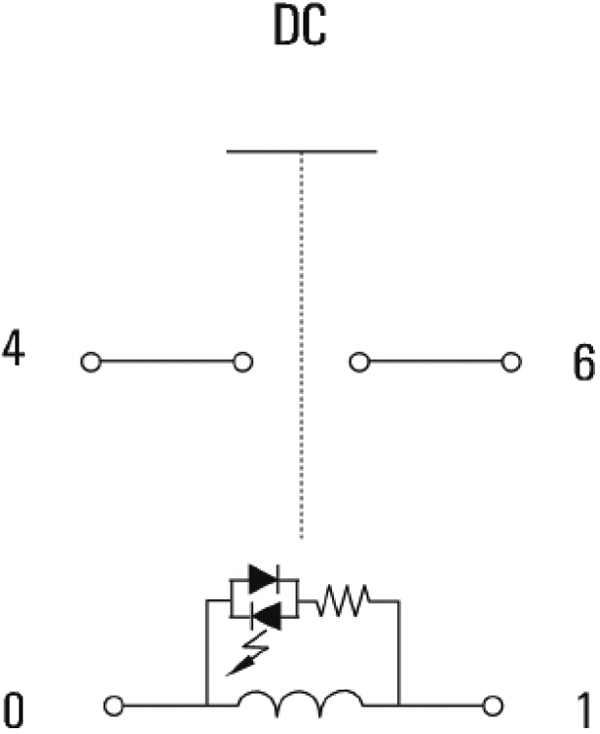

    Contacts configuration SPST-NO
    Contact resistance 50mΩ
    Contact current max. 30A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.9W
