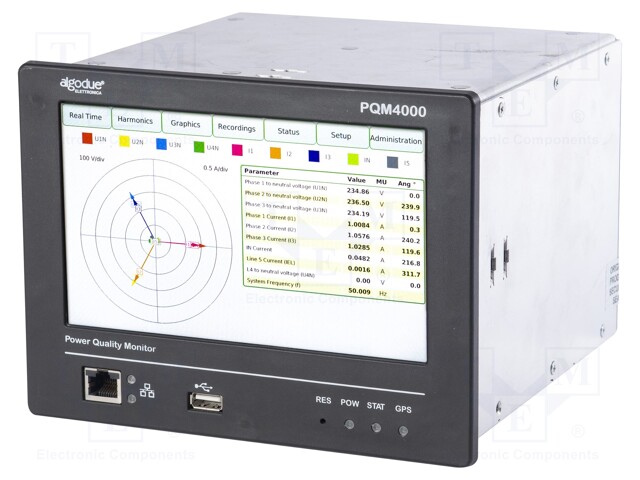

Power quality analyser; True RMS; In.imp: 6MΩ; 191x143x190mm
Multiples:
1.0
Minimum quantity:
1.0
Certificates:
Product downloads
Specification for Power quality analyser; True RMS; In.imp: 6MΩ; 191x143x190mm
| Mounting | on panel |
| Supply voltage | 100...240V AC |
| Operating temperature | -25...55°C |
| IP rating | IP20, IP40 from the front |
| Interface | Ethernet, RS485, USB, WiFi |
| Series | PQM4000 |
| Frequency | 50...60Hz |
| Kind of display used | TFT |
| Input impedance | 6MΩ |
| Kind of network | three-phase |
| Rated voltage | 580V |
| Conform to the norm | IEC 61000-4-30 |
| Measuring instrument features | logging of MAX, MIN, AVG |
| Number of digital outputs | 4 |
| Number of analog outputs | 4 |
| Number of digital inputs | 4 |
| Type of meter | power quality analyser |
| Measurement | AC current, AC voltage, active power, apparent power, energy, frequency, harmonics, power factor, reactive power, interharmonics |
| True effective value measurement | True RMS |
| Kind of meter | digital, mounting |
| Dimensions (W x H x D) | 191x143x190mm |
