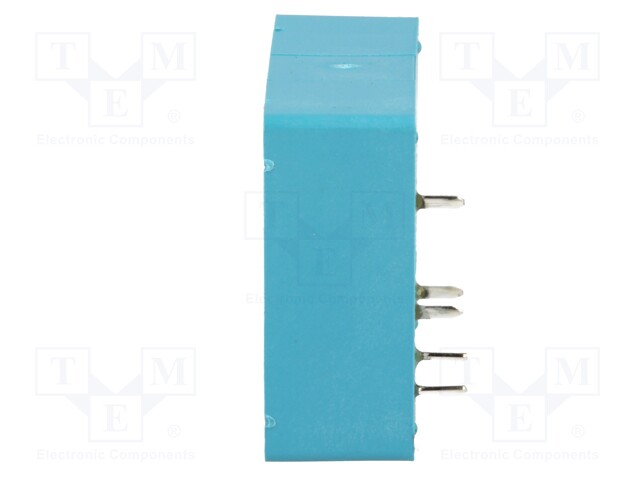

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/250VAC; 5A/24VDC; 5A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1393215-4
    Manufacturer: TE Connectivity
    Manufacturer code: 1393215-4
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    16.31 € 16.31 € (wo VAT) 16.31 EUR

    16.31 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A/250VAC; 5A/24VDC; 5A

    Mounting PCB
    Operating temperature -40...70°C
    Contact material AgNi

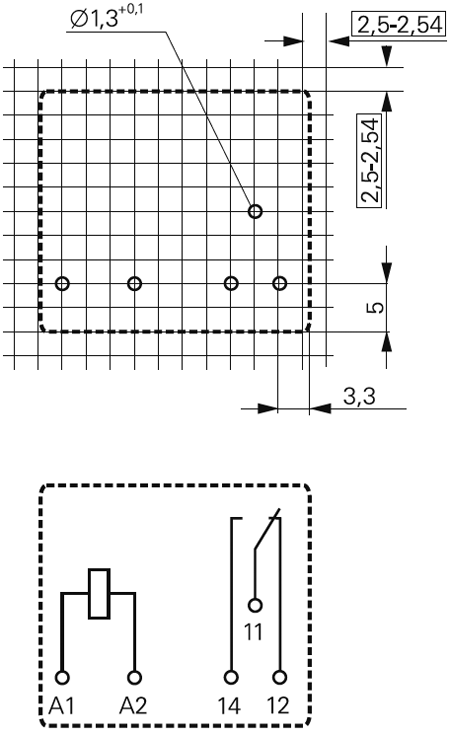

    Terminal pitch 2.54mm

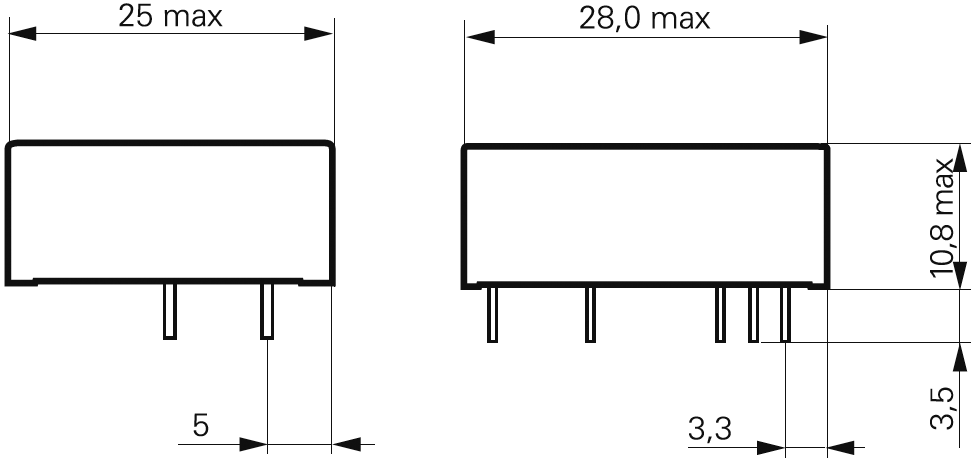

    Body dimensions 28x10.4x25.1mm
    Mechanical durability 2000000cycles
    Switched voltage max. 300V DC, max. 400V AC
    Coil resistance 330Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 24V DC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 8V DC
    Coil power consumption 436mW
