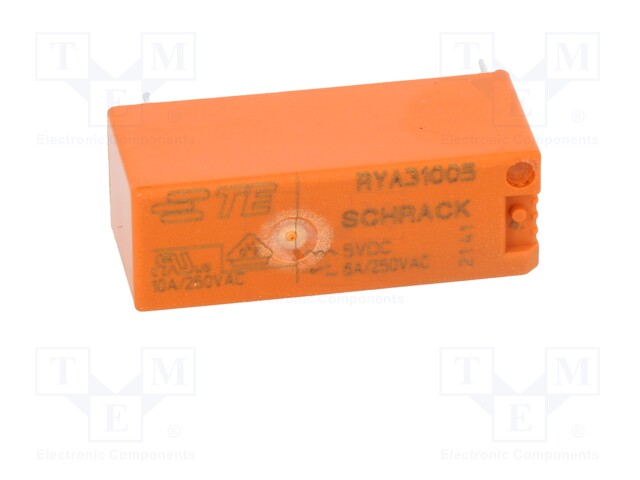

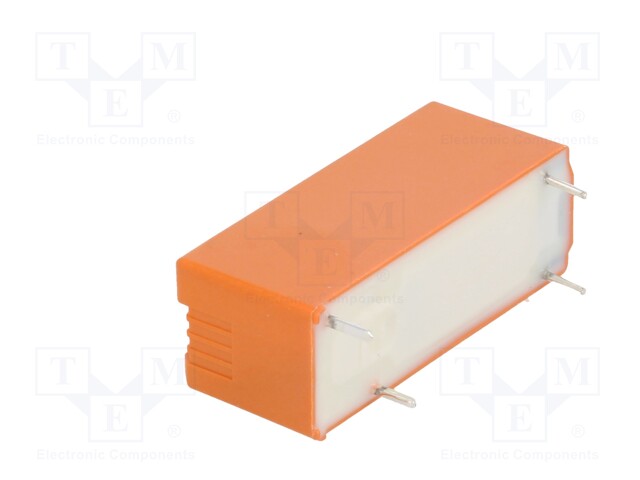

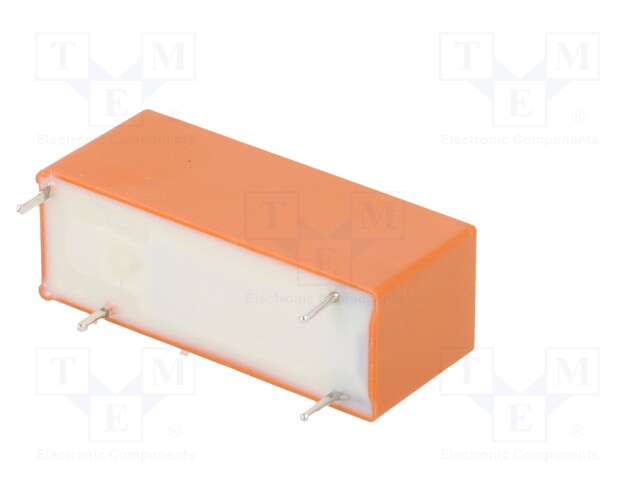

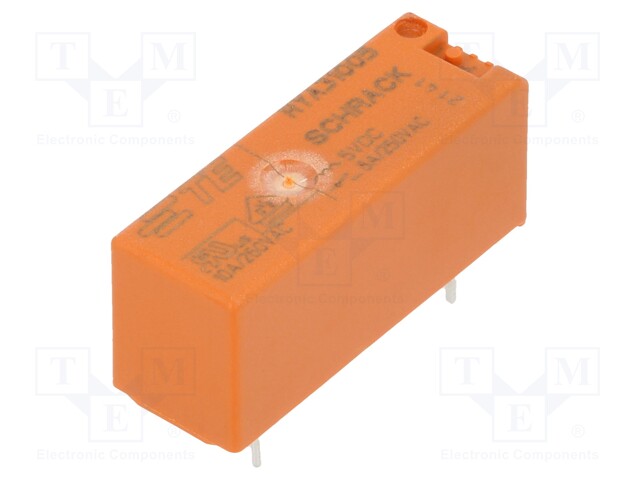

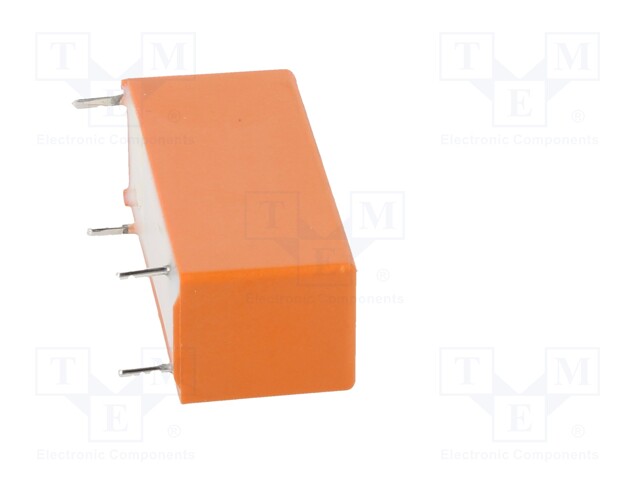

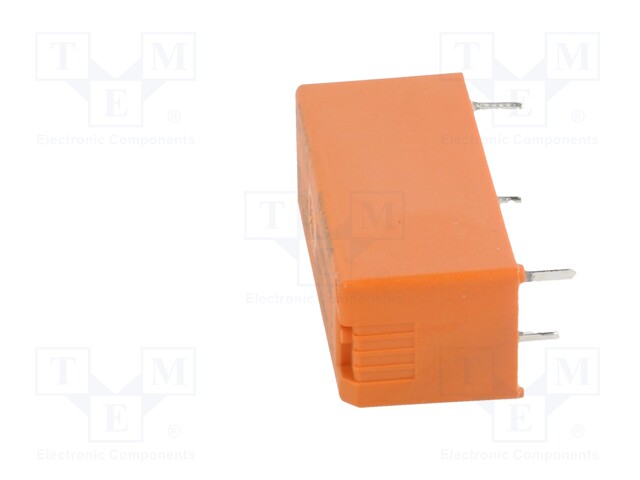

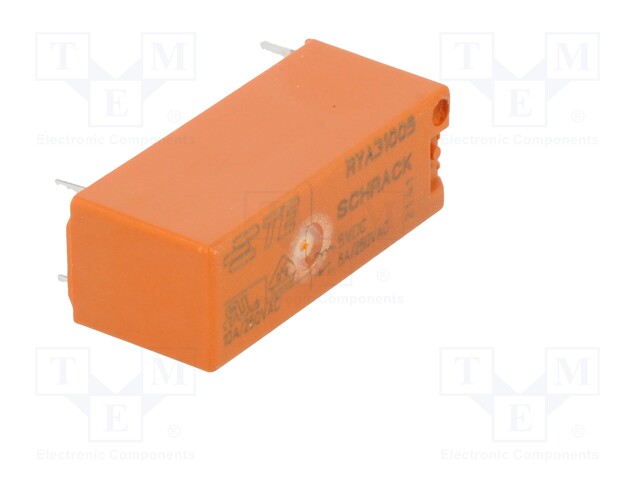

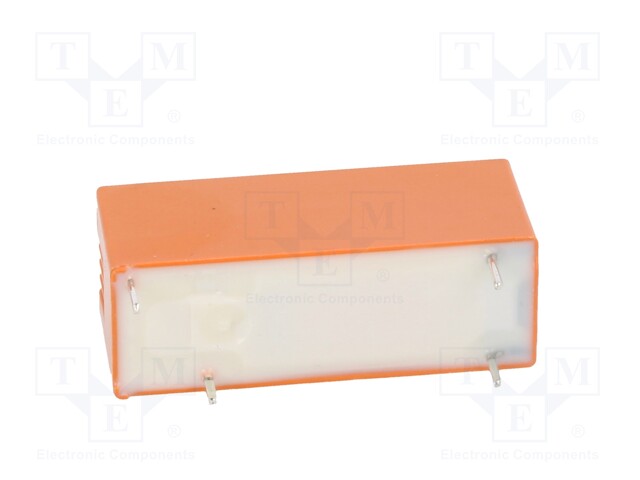

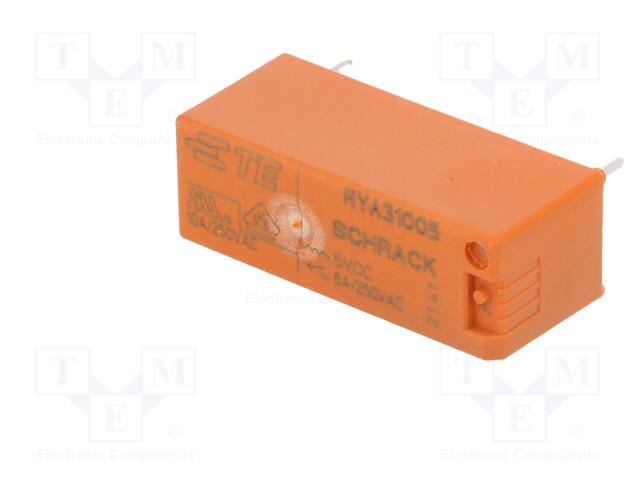

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 8A

    Multiples: 1.0
    Minimum quantity: 40.0
    Product code: 1393224-7
    Manufacturer: TE Connectivity
    Manufacturer code: 1393224-7
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    2.93 € 2.93 € (wo VAT) 2.93 EUR

    2.93 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 8A

    Mounting THT
    Operating temperature -40...70°C
    Contact material AgNi

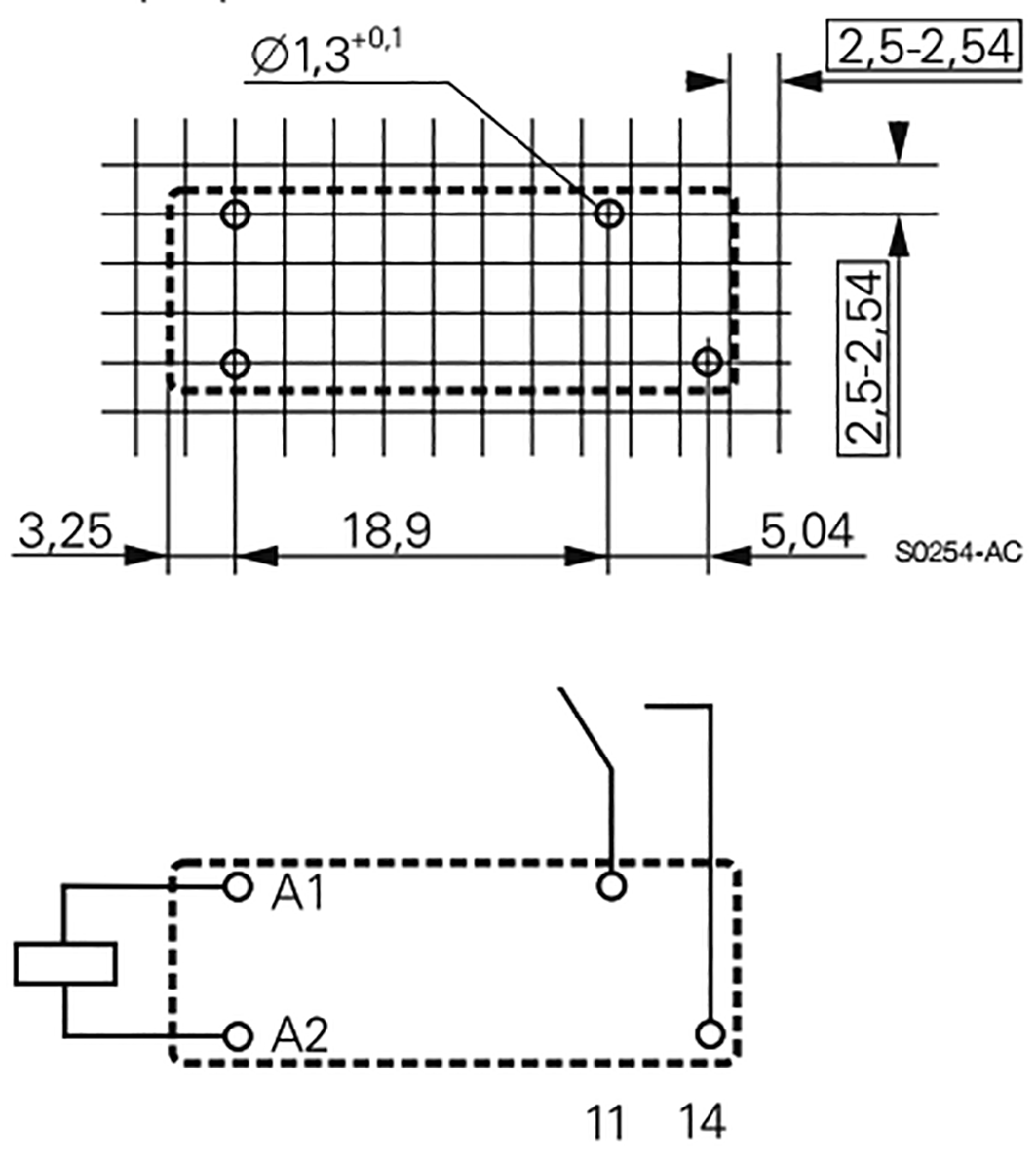

    Terminal pitch 5mm
    Height 12.3mm

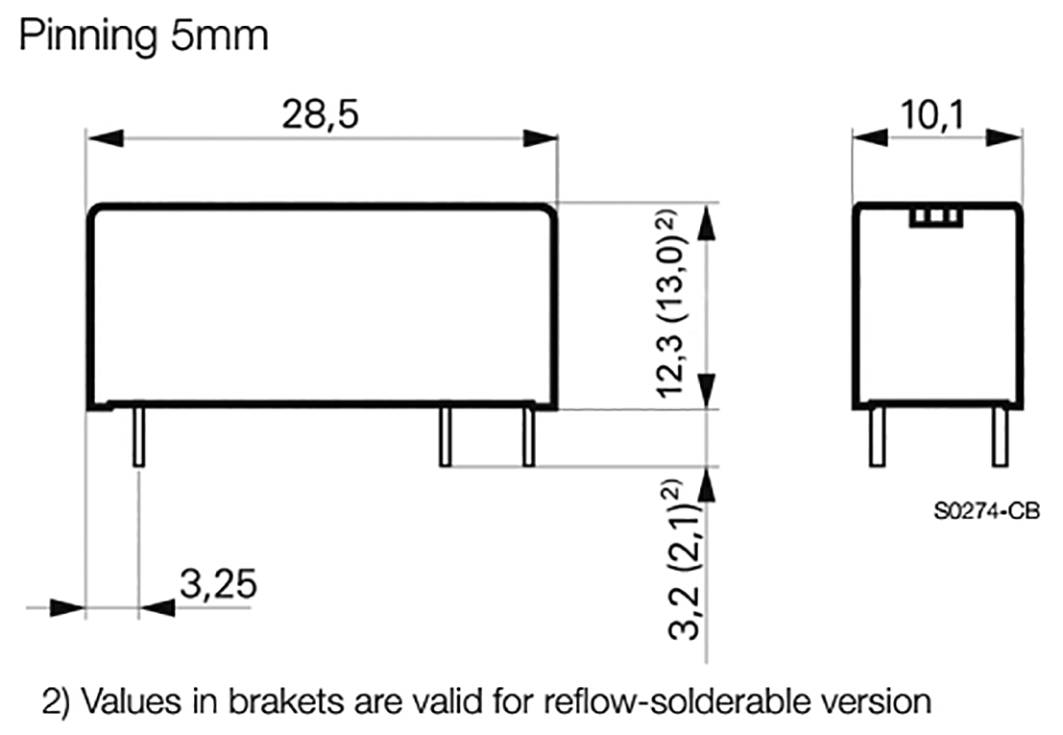

    Body dimensions 28.5x12.3x10.1mm
    Mechanical durability 30000000cycles
    Switched voltage max. 250V AC
    Coil resistance 112Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 223mW
    Operate time 9ms
    Release time 5ms
    Coil current 44.6mA
