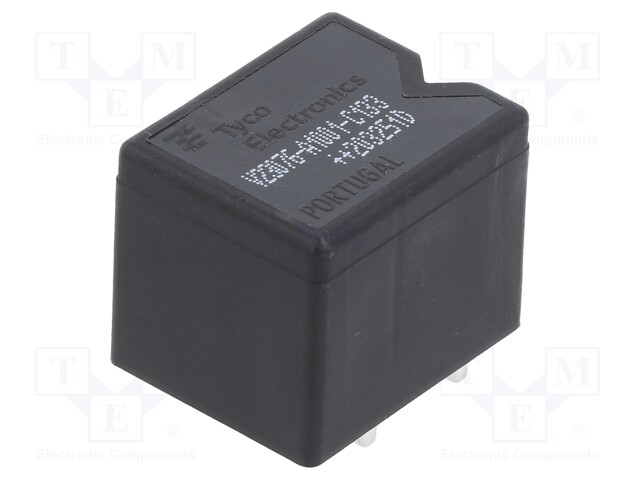

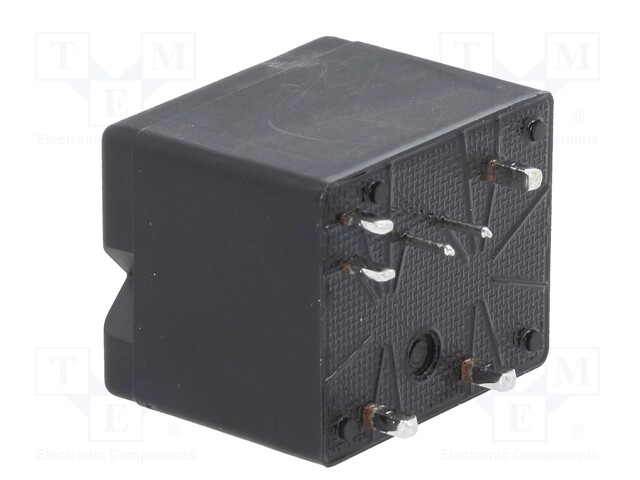

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A; miniature; 90Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1393277-4
    Manufacturer: TE Connectivity
    Manufacturer code: 1393277-4
    • Mounting
    • Operating temperature
    • Contact material
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    11.52 € 11.52 € (wo VAT) 11.52 EUR

    11.52 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A; miniature; 90Ω

    Mounting THT
    Operating temperature -40...85°C
    Contact material AgNi
    Height 21.2mm

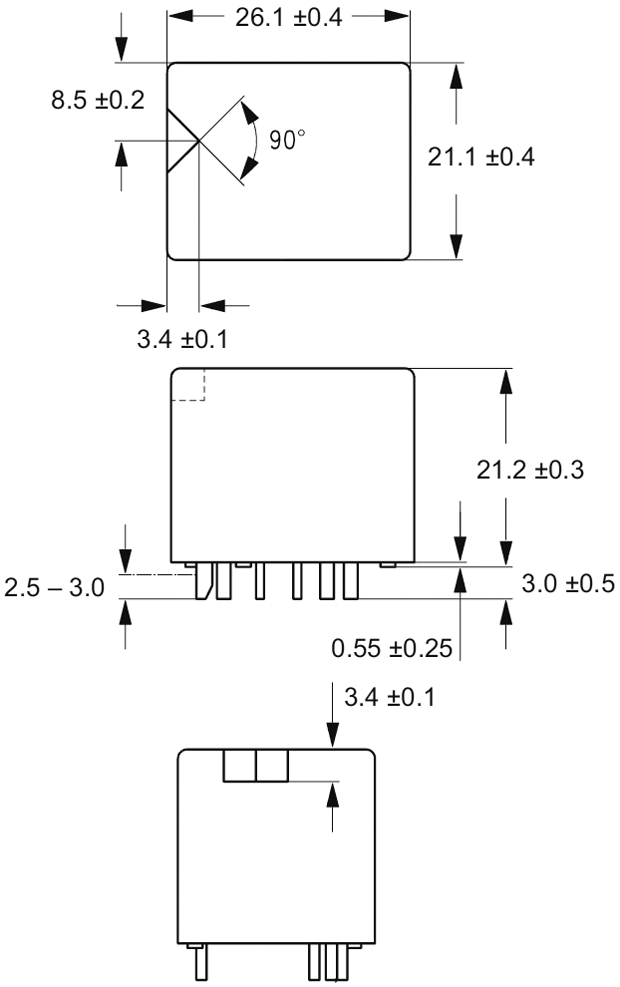

    Body dimensions 26.1x21.2x21.1mm
    Mechanical durability 10000000cycles
    Switched voltage max. 165V DC
    Coil resistance 90Ω
    Rated coil voltage 12V DC

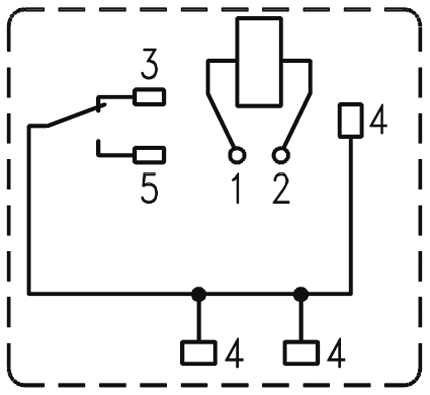

    Contacts configuration SPDT
    Contact current max. 30A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 6.9V DC
    Coil power consumption 1.6W
    Coil current 133.3mA
