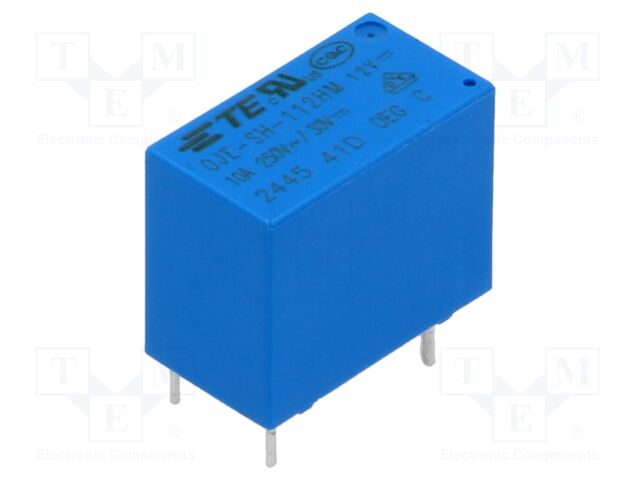

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1461402-6-2
    Manufacturer: TE Connectivity
    Manufacturer code: 1461402-6
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC

    Mounting PCB
    Operating temperature -40...105°C
    Contact material AgCdO
    Terminal pitch 2.54mm
    Height 14.7mm
    Body dimensions 18.2x14.7x10.2mm
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 320Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Operate time 10ms
    Release time 4ms
