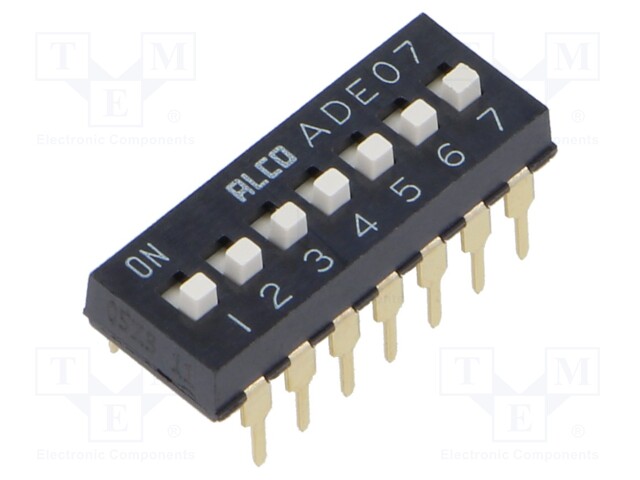

Switch: DIP-SWITCH; Poles number: 7; OFF-ON; 0.1A/24VDC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1825057-6
    Manufacturer: TE Connectivity
    Manufacturer code: 1825057-6
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Body colour
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number

    2.22 € 2.22 € (wo VAT) 2.22 EUR

    2.22 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH; Poles number: 7; OFF-ON; 0.1A/24VDC; Pos: 2

    Mounting THT
    Operating temperature -30...85°C
    Type of switch DIP-SWITCH
    Contact plating gold-plated
    Number of positions 2
    Leads for soldering
    Contact material copper alloy
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Body colour black
    Illumination none
    Min. insulation resistance 1GΩ
    Electrical life 1000cycles
    Poles number 7
    Contacts configuration SPST
    DC contacts rating @R 0.1A / 24V DC
    Switching method OFF-ON
    Stable positions number 2
