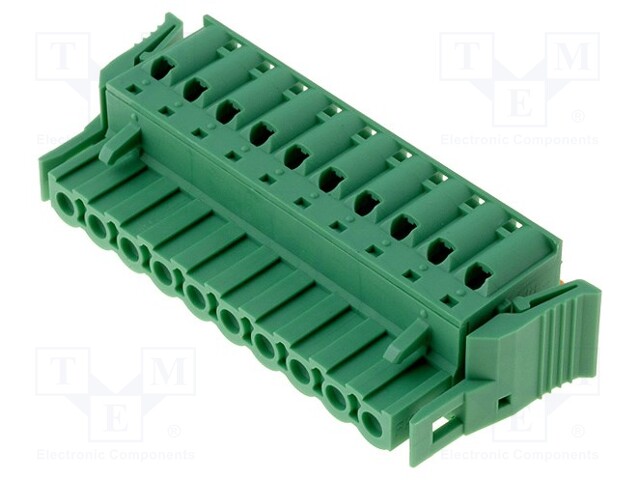

Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; straight

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1925773-1
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 1925773
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Body material
    • Flammability rating
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Number of terminals
    • Locking system
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Stripped wire length

    14.30 € 14.30 € (wo VAT) 14.3 EUR

    14.30 €

    This combination does not exist.

    Add to Cart

    Product downloads

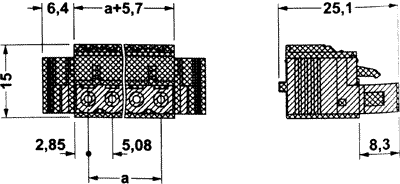

    Specification for Pluggable terminal block; Contacts ph: 5.08mm; ways: 10; straight

    Operating temperature -40...105°C
    Contacts pitch 5.08mm
    Electrical mounting spring clamp
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Body material polyamide
    Flammability rating UL94V-0
    Current rating 12A
    Number of ways 10
    Type of pin configuration 1x10
    Number of terminals 10
    Locking system latch
    Connector variant with push button
    Conform to the norm CSA, UL, VDE
    Spatial orientation straight
    Stripped wire length 10mm
