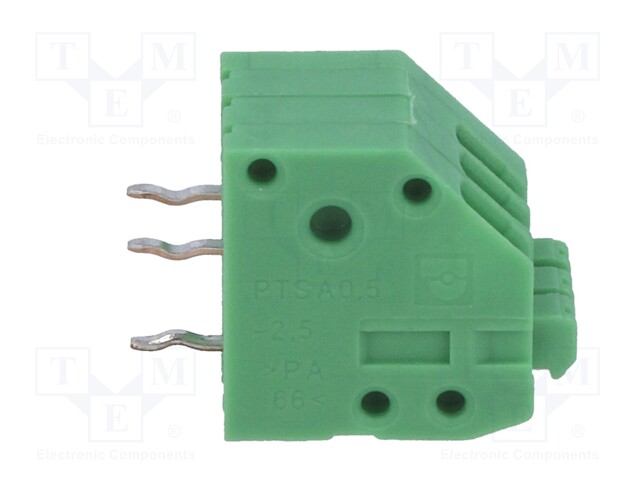

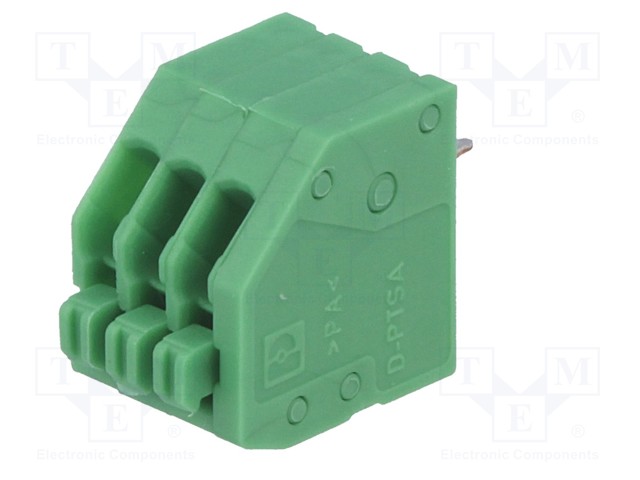

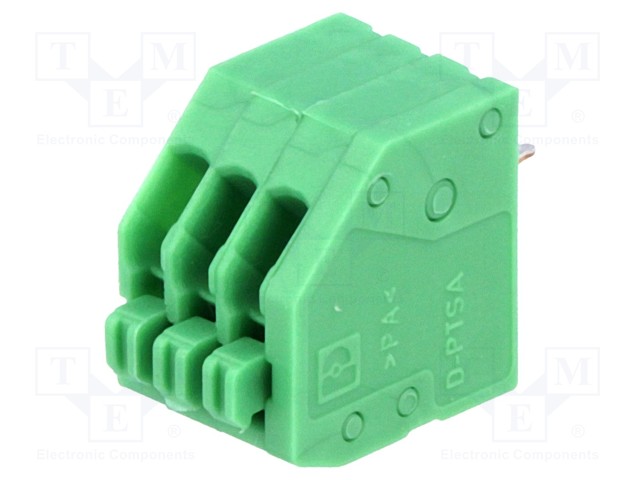

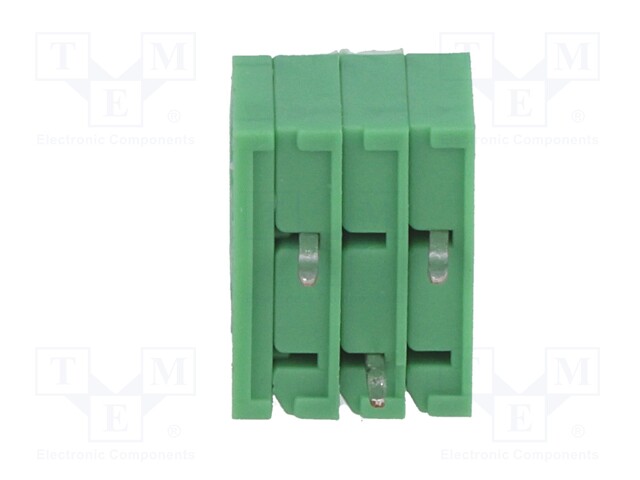

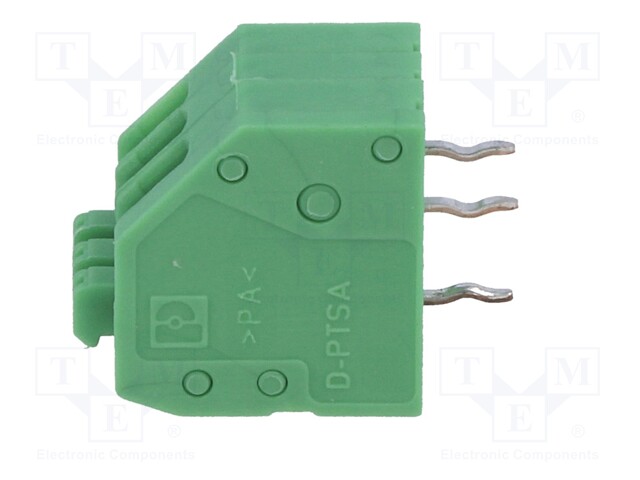

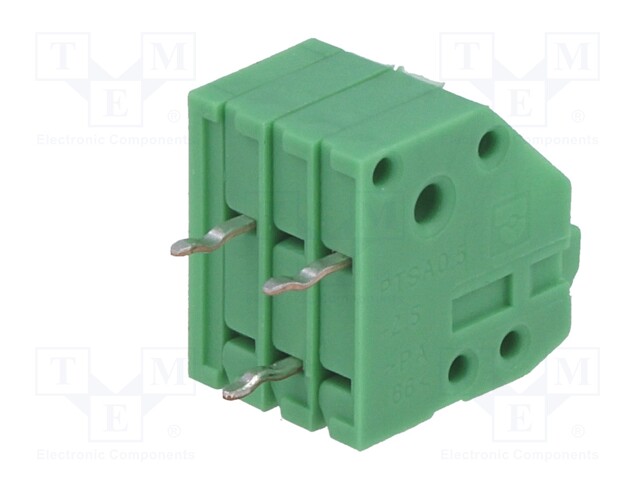

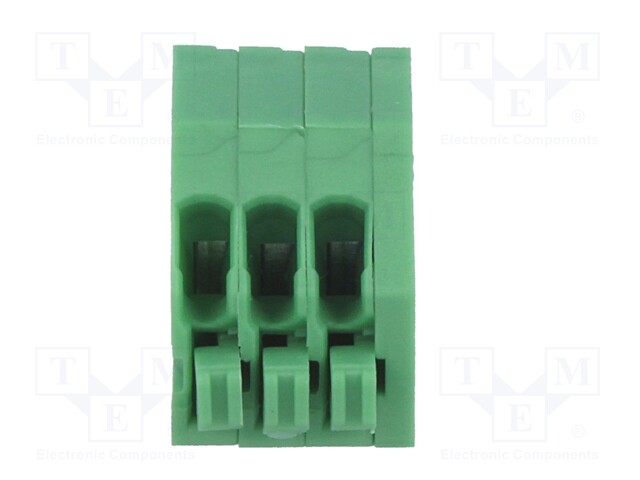

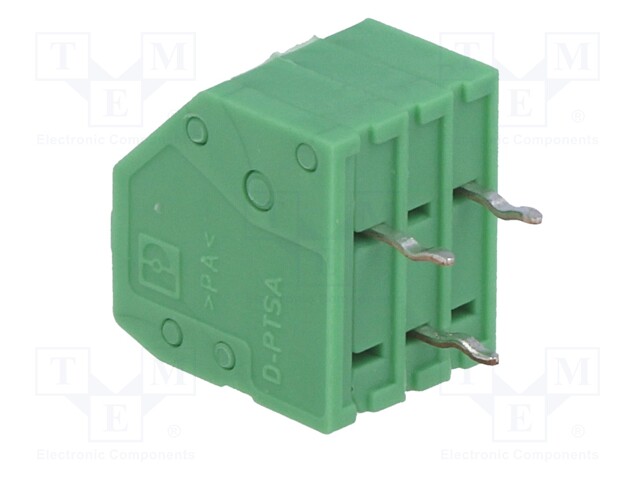

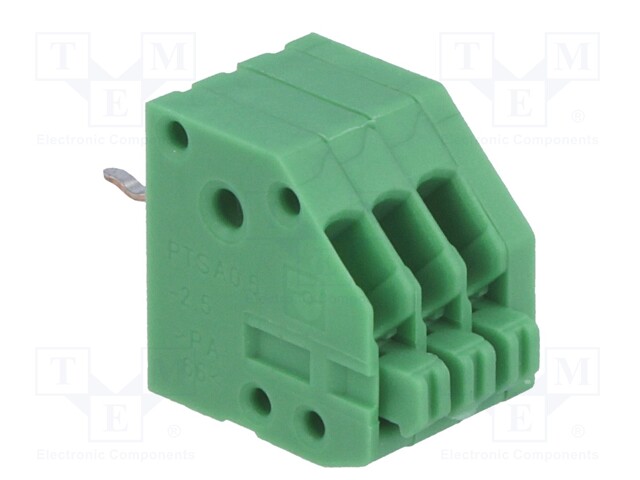

PCB terminal block; angled 45°; 2.5mm; ways: 3; on PCBs; terminal

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1990012
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 1990012
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Number of pins
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Depth

    1.13 € 1.13 € (wo VAT) 1.1300000000000001 EUR

    1.13 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for PCB terminal block; angled 45°; 2.5mm; ways: 3; on PCBs; terminal

    Contacts pitch 2.5mm
    Electrical mounting spring clamp, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector PCB terminal block
    Number of pins 3
    Body material polyamide
    Flammability rating UL94V-0
    Length 9mm
    Height 11.5mm
    Current rating 2A
    Number of ways 3
    Type of pin configuration 1x3
    Connector variant with push button
    Conform to the norm UL, VDE
    Spatial orientation angled 45°
    Depth 12mm
