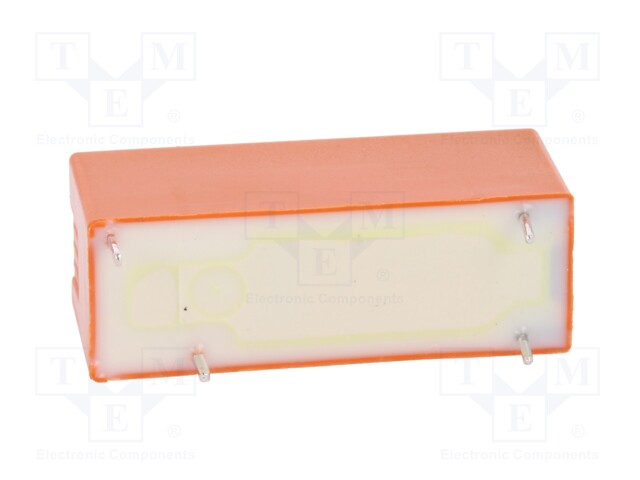

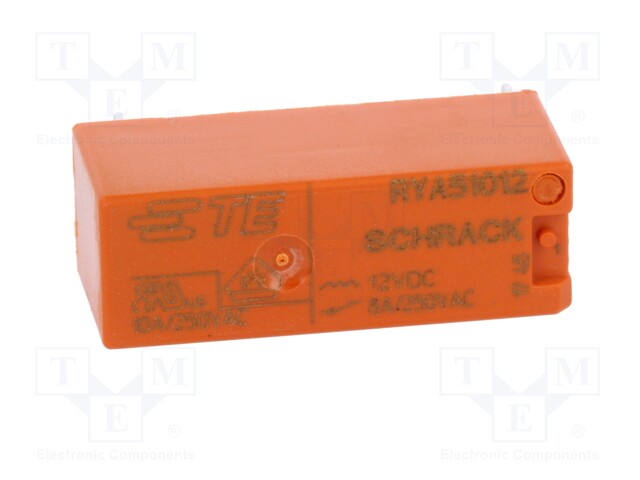

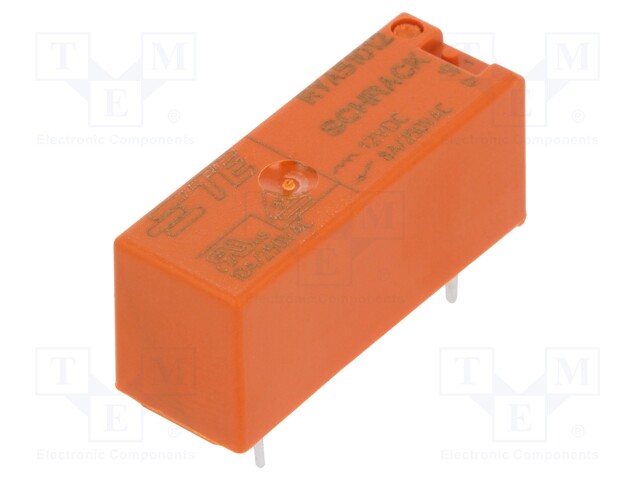

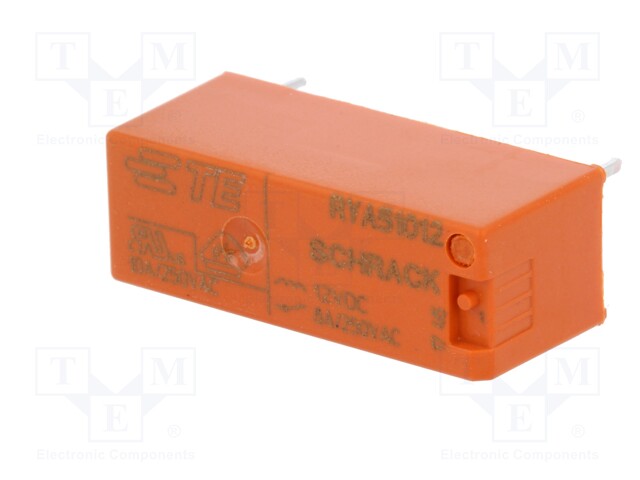

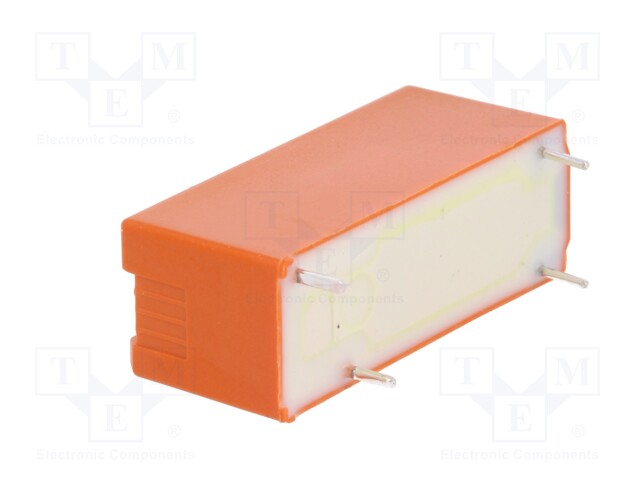

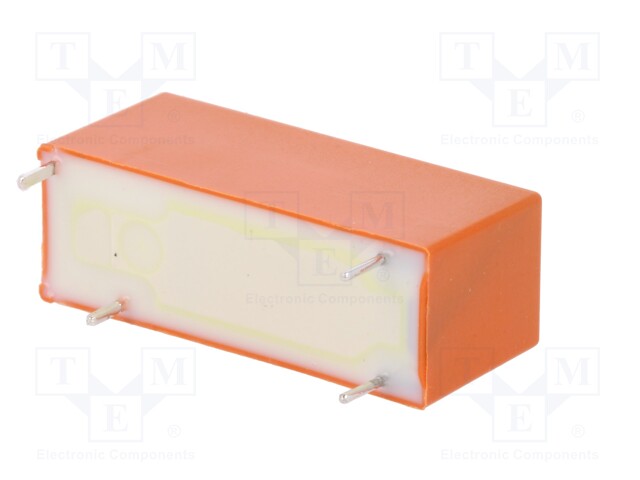

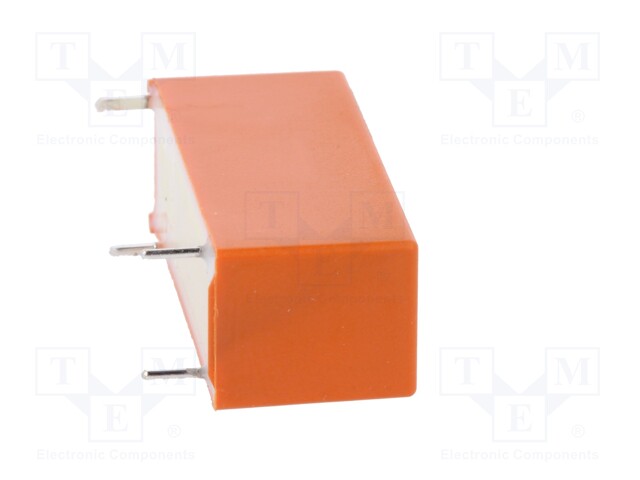

Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; Icontacts max: 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2-1393224-7
    Manufacturer: TE Connectivity
    Manufacturer code: 2-1393224-7
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    4.68 € 4.68 € (wo VAT) 4.68 EUR

    4.68 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NC; Ucoil: 12VDC; Icontacts max: 8A

    Mounting THT
    Operating temperature -40...70°C
    Contact material AgNi
    Terminal pitch 5mm
    Height 12.3mm
    Body dimensions 28.5x12.3x10.1mm
    Mechanical durability 30000000cycles
    Switched voltage max. 250V AC
    Coil resistance 627Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 230mW
    Operate time 9ms
    Release time 5ms
    Coil current 19.1mA
