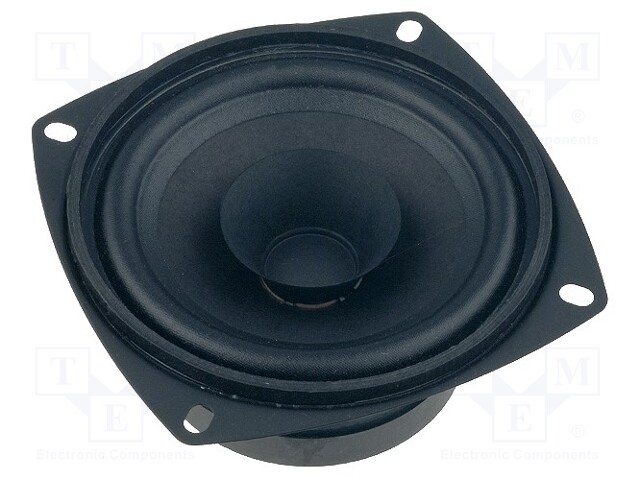

Loudspeaker; general purpose; 30W; 4Ω; Ø105x44mm; 80÷20000Hz

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2020-2
    Manufacturer: VISATON
    Manufacturer code: 2020
    • Power
    • Operating temperature
    • Colour
    • Height
    • Impedance
    • Body dimensions
    • Diameter
    • Panel cutout diameter
    • Mounting holes pitch
    • Maximum power
    • Mounting depth
    • Sound level
    • Resonant frequency
    • Type of sound transducer
    • Kind of loudspeaker

    9.03 € 9.03 € (wo VAT) 9.03 EUR

    9.03 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Loudspeaker; general purpose; 30W; 4Ω; Ø105x44mm; 80÷20000Hz

    Power 30W
    Operating temperature -25...70°C
    Colour black
    Height 47mm
    Impedance 4Ω

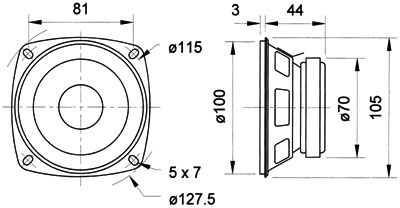

    Body dimensions Ø105x44mm
    Diameter 100mm
    Panel cutout diameter 81mm
    Mounting holes pitch 81mm
    Maximum power 50W
    Mounting depth 44mm
    Sound level 86dB
    Resonant frequency 90Hz
    Type of sound transducer loudspeaker
    Kind of loudspeaker general purpose
