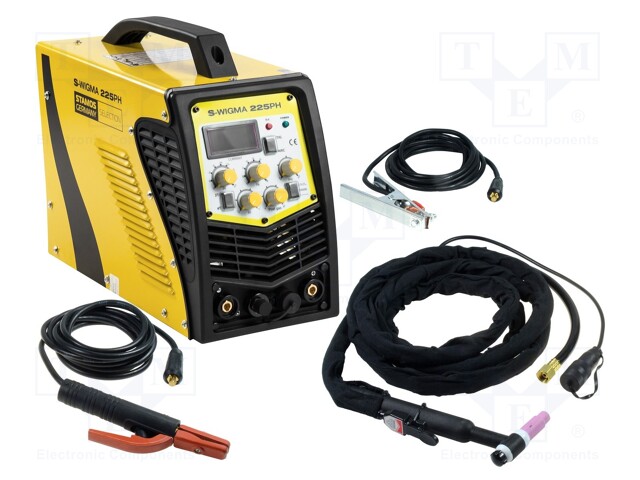

Inverter welder; 3.8kVA; 230VAC; 17.4A; 50/60Hz; MMA,TIG; IP21S

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2037
    Manufacturer: STAMOS
    Manufacturer code: 2037
    • Supply voltage
    • IP rating
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Power consumption
    • Efficiency
    • Insulation class
    • Input current
    • Supply voltage frequency
    • Power factor
    • Open circuit voltage
    • Electrode diameter (MMA)
    • Electrode diameter (TIG)
    • Welding method
    • Welding method
    • Pulse current in PULSE mode
    • Gas flow time after welding
    • Pulse frequency DC mode
    • Welding current at 100% duty cycle
    • Welding current TIG-DC
    • Welding current MMA
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding current at 60% duty cycle
    • Nominal duty cycle
    • Method of cooling the handle
    • Current decrease time
    • Dimensions (a x b x c)

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Inverter welder; 3.8kVA; 230VAC; 17.4A; 50/60Hz; MMA,TIG; IP21S

    Supply voltage 230V AC
    IP rating IP21S
    Kit contents 1,6mm electrode, ground clamp with 4m cable, MMA welding holder with 4m cable, spare TIG holder accessories, TIG welding holder with 3.8m cable
    Power consumption 3.8kVA
    Efficiency 85%
    Insulation class F
    Input current 17.4A
    Supply voltage frequency 50/60Hz
    Power factor ≥0.93
    Open circuit voltage 56V
    Electrode diameter (MMA) 1...4mm
    Electrode diameter (TIG) 1...3.2mm
    Welding method MMA, TIG
    Pulse current in PULSE mode 20...225A
    Gas flow time after welding 0...10s
    Pulse frequency DC mode 0.5...200Hz
    Welding current at 100% duty cycle 174A
    Welding current TIG-DC 10...225A
    Welding current MMA 10...225A
    Welding equipment features 2 T / 4 T change-over switch, ANTI STICK - prevents electrode from sticking to welding material, ARC FORCE - electrical arc stablization, HOT START - easy to initiate an electrical arc, integrated solenoid gas valve, MOSFET technology, overload / failure indicator, possibility to set current downslope time, PULS - possibility of pulse current welding, TIG HF - non-contact electrical arc ignition using high frequency
    Welding current at 60% duty cycle 225A
    Nominal duty cycle 60%
    Method of cooling the handle air
    Current decrease time 0...5s
    Dimensions (a x b x c) 480x370x210mm
