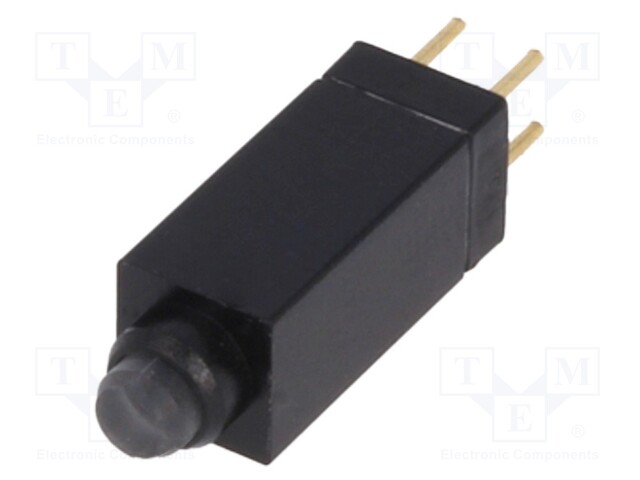

Switch: push-button; Pos: 2; SPDT; 0.1A/24VAC; Illumin: LED; yellow

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2214.1227
    Manufacturer: MENTOR
    Manufacturer code: 2214.1227
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance:
    • Terminal pitch
    • Mechanical durability
    • Backlight colour
    • Illumination
    • Min. insulation resistance
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Button height
    • Key button colour

    1.62 € 1.62 € (wo VAT) 1.62 EUR

    1.62 €

    This combination does not exist.

    Add to Cart

    Product downloads

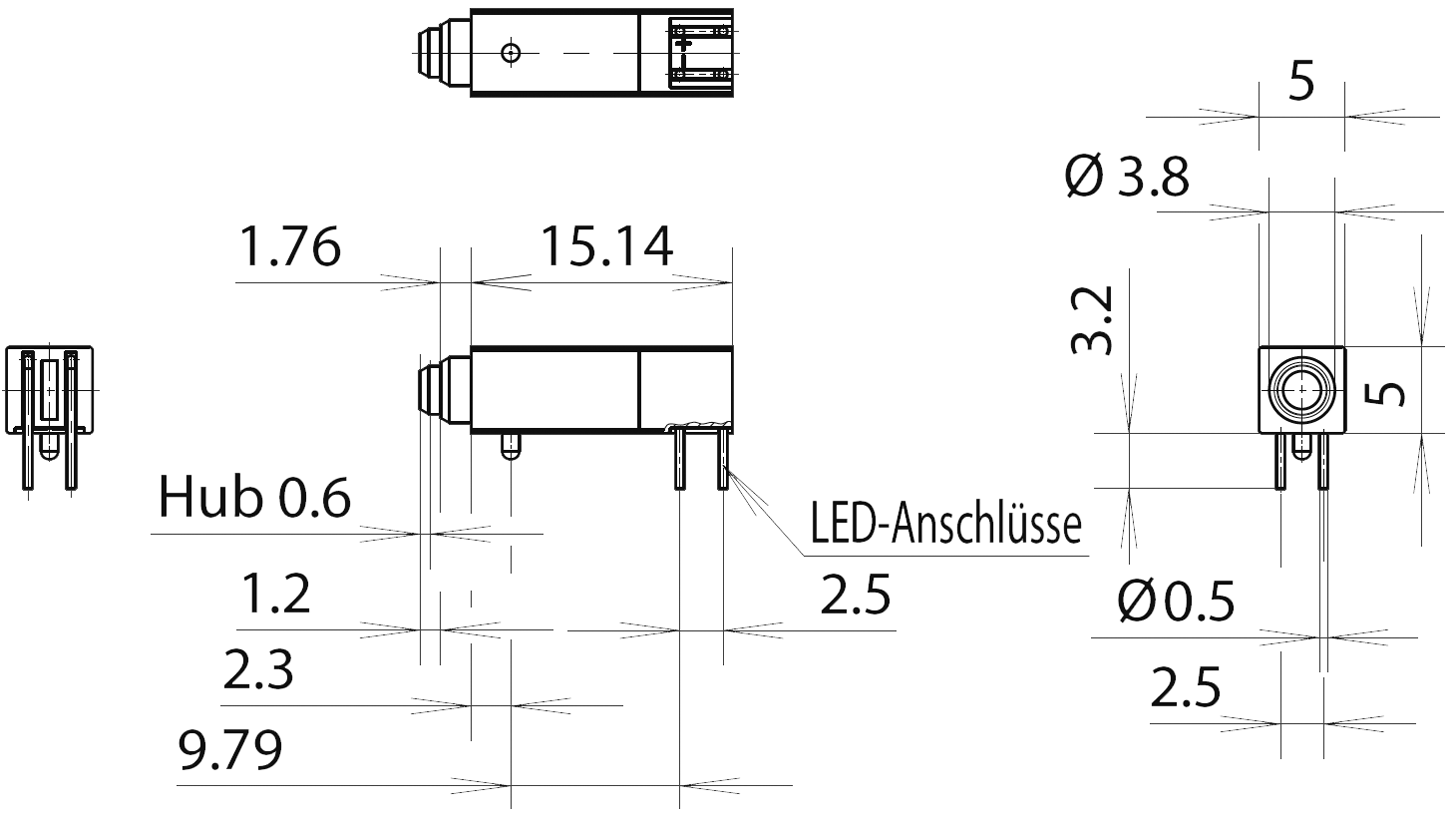

    Specification for Switch: push-button; Pos: 2; SPDT; 0.1A/24VAC; Illumin: LED; yellow

    Mounting THT
    Operating temperature -40...85°C
    Type of switch push-button
    Number of positions 2
    Leads angled, for PCB
    Max. contact resistance: 50mΩ
    Terminal pitch 2.5mm
    Mechanical durability 20000cycles
    Backlight colour yellow
    Illumination LED
    Min. insulation resistance 100GΩ
    Contacts configuration SPST-NO
    AC contacts rating @R 0.1A / 24V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 4N
    Button shape round
    Button height 0.6mm
    Key button colour transparent
