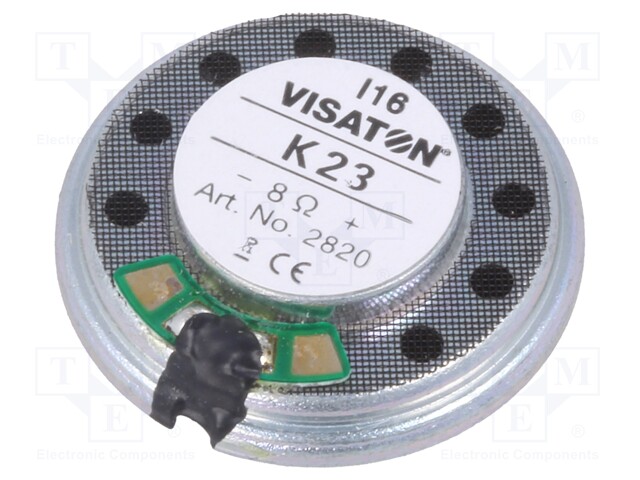

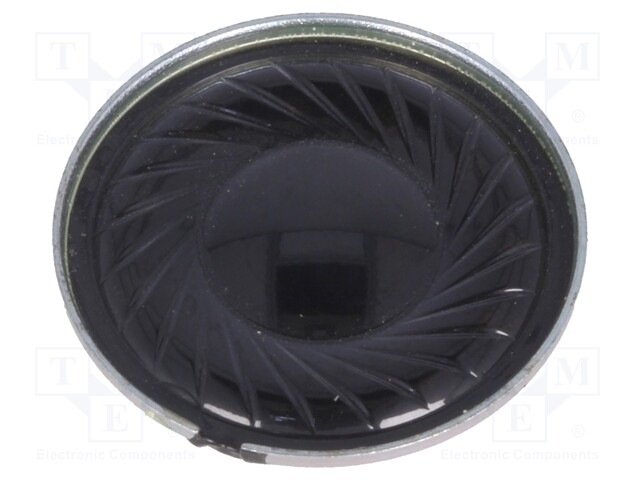

Loudspeaker; miniature,mylar,full-range,general purpose; 0.3W

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2820-1
    Manufacturer: VISATON
    Manufacturer code: 2820
    • Power
    • Operating temperature
    • IP rating
    • Height
    • Impedance
    • Body dimensions
    • Diameter
    • Panel cutout diameter
    • Maximum power
    • Sound level
    • Resonant frequency
    • Type of sound transducer
    • Kind of loudspeaker
    • Kind of loudspeaker
    • Kind of loudspeaker
    • Kind of loudspeaker
    • Sound frequency

    6.36 € 6.36 € (wo VAT) 6.36 EUR

    6.36 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Loudspeaker; miniature,mylar,full-range,general purpose; 0.3W

    Power 300mW
    Operating temperature -25...70°C
    IP rating IP64
    Height 5mm
    Impedance 8Ω

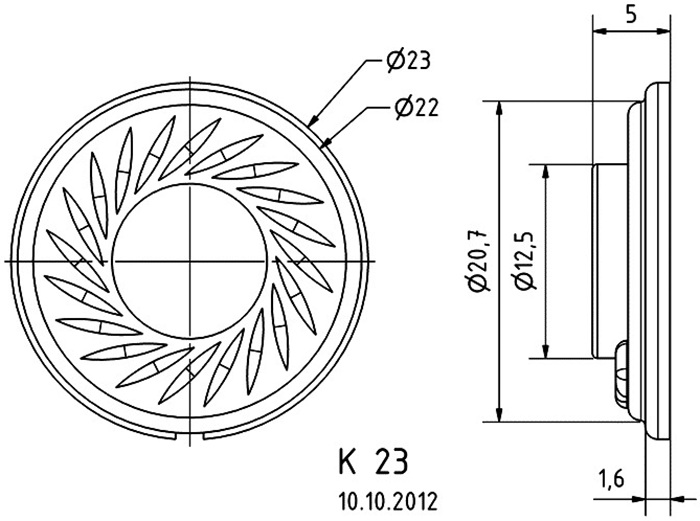

    Body dimensions Ø23x5mm
    Diameter 23mm
    Panel cutout diameter 21mm
    Maximum power 500mW
    Sound level 79dB
    Resonant frequency 750Hz
    Type of sound transducer loudspeaker
    Kind of loudspeaker full-range, general purpose, miniature, mylar
    Sound frequency 420...20000Hz
