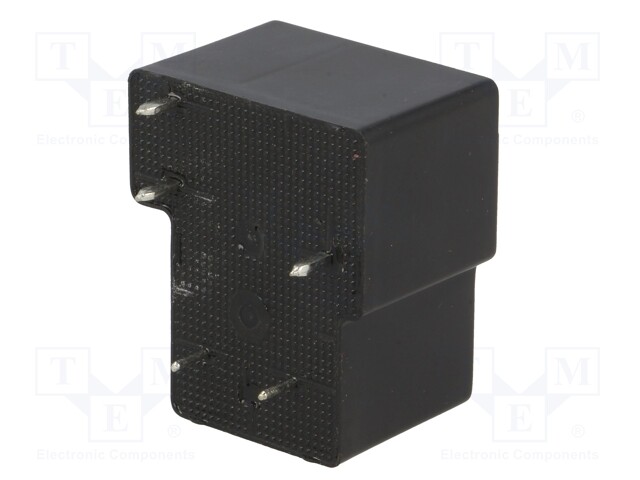

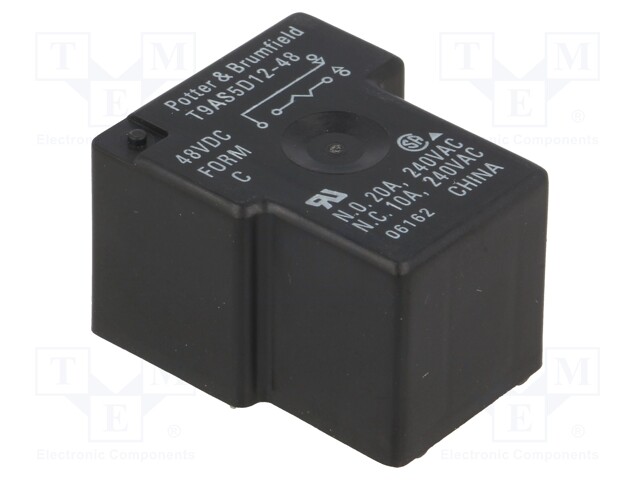

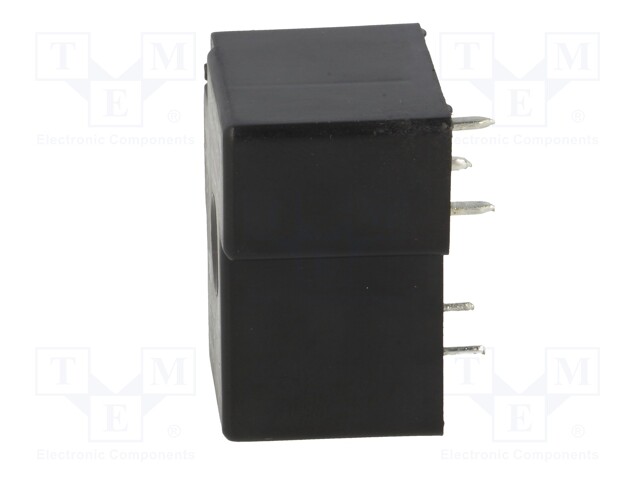

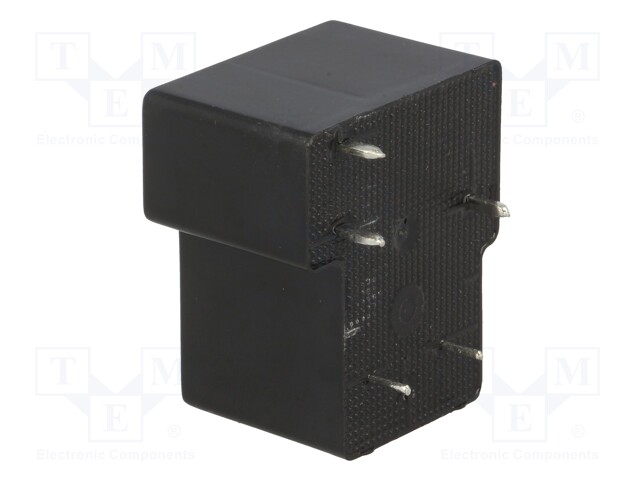

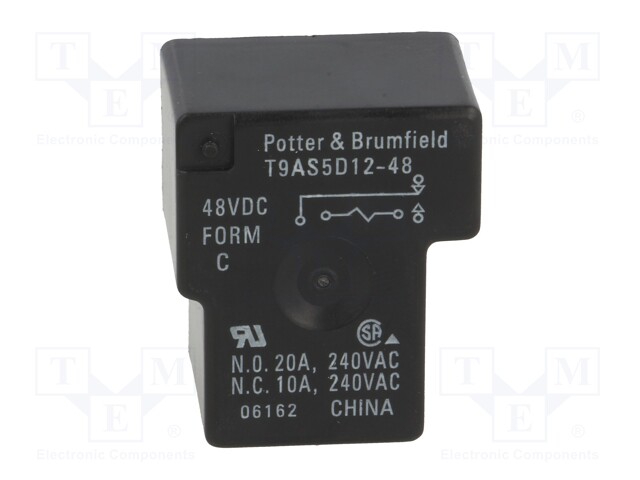

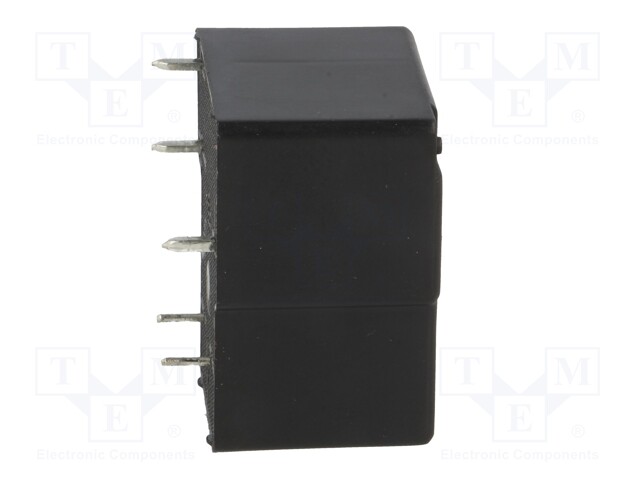

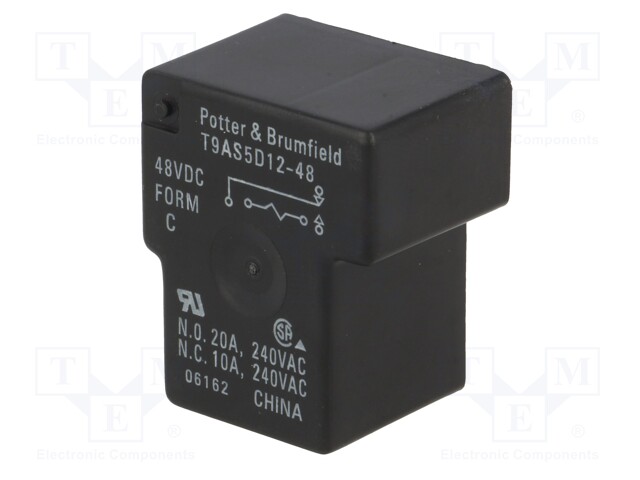

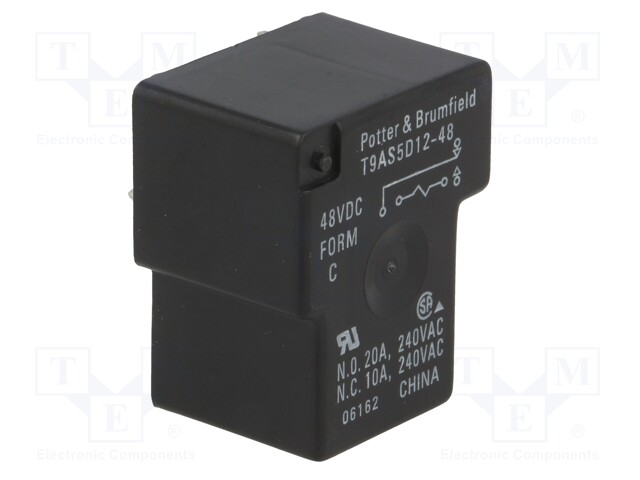

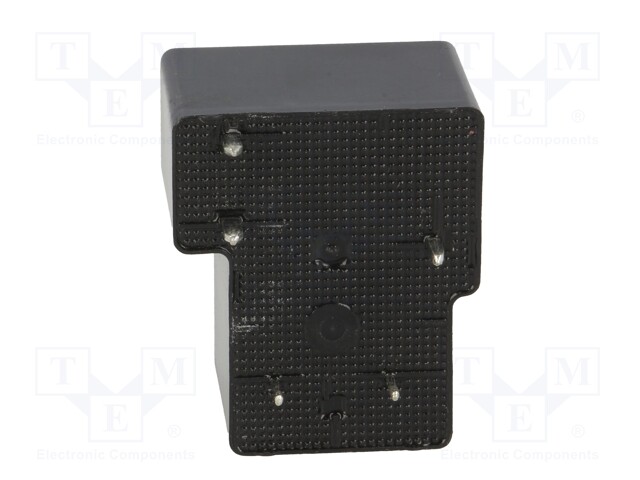

Relay: electromagnetic; SPDT; Ucoil: 48VDC; 20A; Ucoil min: 36VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3-1393210-8
    Manufacturer: TE Connectivity
    Manufacturer code: 3-1393210-8
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 48VDC; 20A; Ucoil min: 36VDC

    Mounting PCB
    Operating temperature -55...85°C
    Leads for PCB
    Contact material AgCdO
    Body dimensions 32.5x27.4x27.9mm
    Mechanical durability 10000000cycles
    Switched voltage max. 28V DC, max. 277V AC
    Coil resistance 2304Ω
    Rated coil voltage 48V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 28V DC
    Contact resistance 75mΩ
    AC contacts rating @R 20A / 240V AC
    Contact current max. 20A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 36V DC
    Coil power consumption 1W
