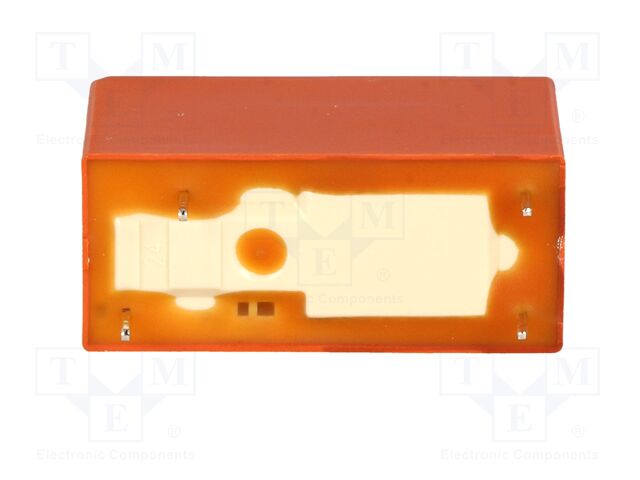

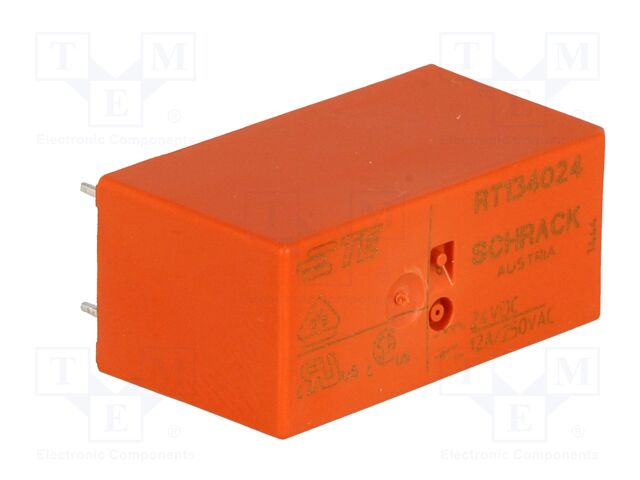

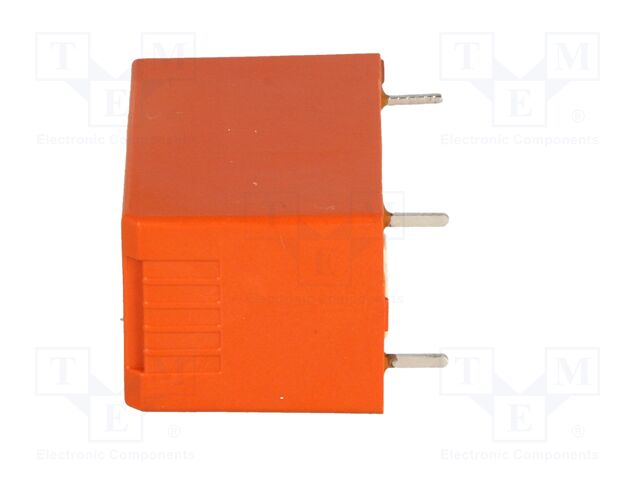

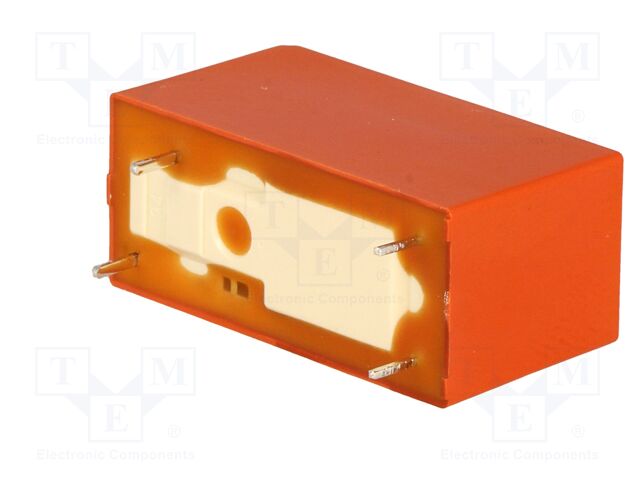

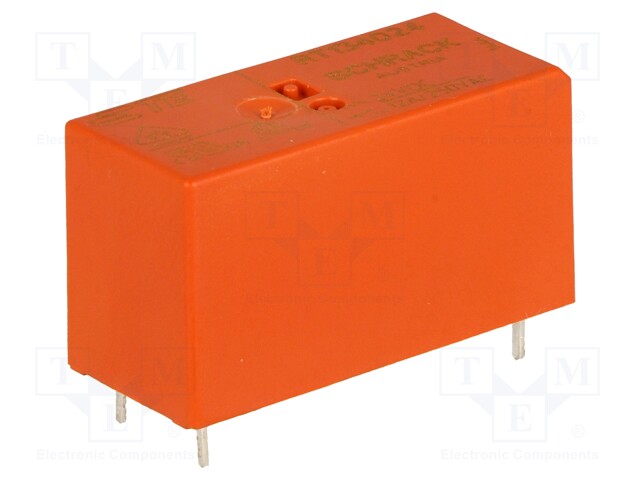

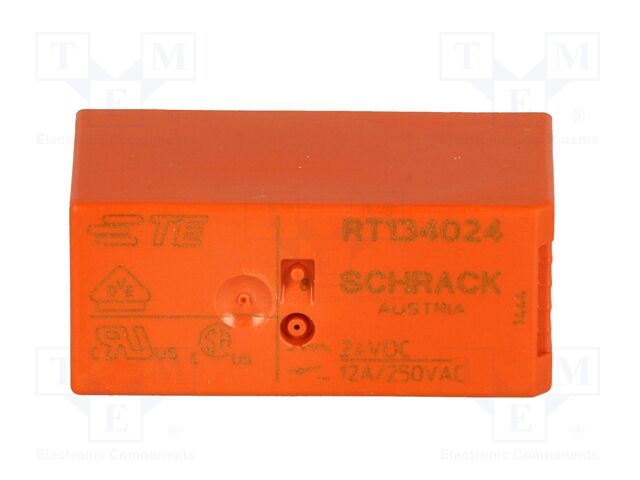

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 12A/250VAC; 1.44kΩ

    Multiples: 1.0
    Minimum quantity: 10.0
    Product code: 3-1393239-0
    Manufacturer: TE Connectivity
    Manufacturer code: 3-1393239-0
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    2.54 € 2.54 € (wo VAT) 2.54 EUR

    2.54 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 12A/250VAC; 1.44kΩ

    Mounting THT
    Operating temperature -40...70°C
    IP rating IP40
    Number of pins 4
    Contact material AgNi
    Terminal pitch 3.5mm
    Height 15.7mm
    Body dimensions 29x15.7x12.7mm
    Mechanical durability 30000000cycles
    Switched voltage max. 300V DC, max. 400V AC
    Max surge current 30A
    Switching capacity 3kVA
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 12A / 24V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 12A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
