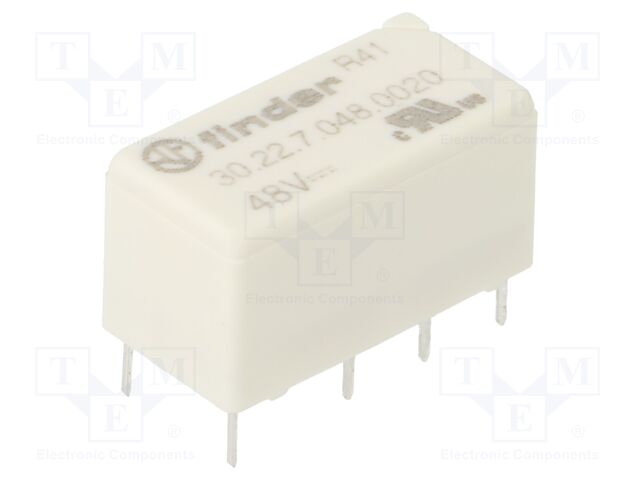

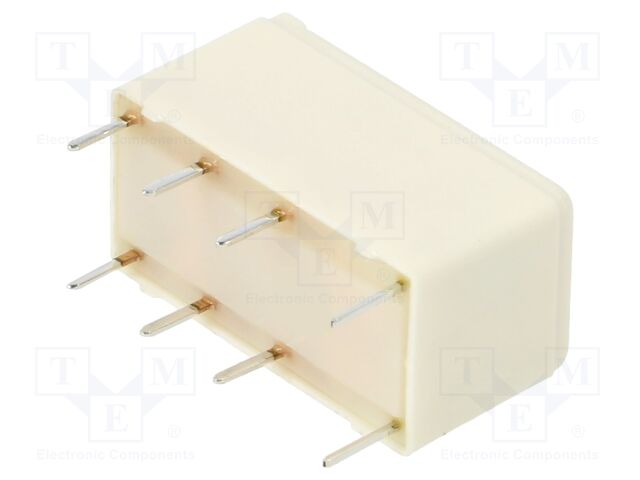

Relay: electromagnetic; DPDT; Ucoil: 48VDC; Icontacts max: 3A; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 30.22.7.048.0020
    Manufacturer: FINDER
    Manufacturer code: 30.22.7.048.0020
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 48VDC; Icontacts max: 3A; PCB

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi/Au 5μm
    Terminal pitch 5mm
    Body dimensions 20.3x10.1x11.4mm
    Switched voltage max. 110V DC, max. 250V AC
    Coil resistance 11.52kΩ
    Rated coil voltage 48V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 2A / 125V AC
    Contact current max. 3A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Coil current 4.1mA
