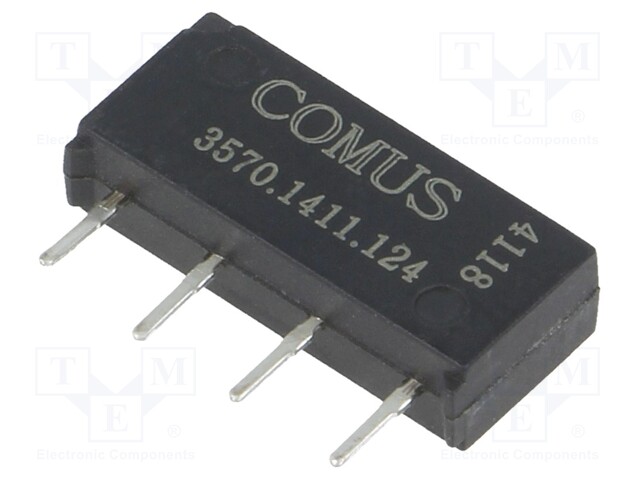

Relay: reed; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W; THT; SIP

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3570.1411.124
    Manufacturer: COMUS
    Manufacturer code: 3570.1411.124
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay features
    • Optional equipment
    • Optional equipment

    2.91 € 2.91 € (wo VAT) 2.91 EUR

    2.91 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W; THT; SIP

    Mounting THT
    Case SIP
    Operating temperature -40...85°C
    Terminal pitch 3.81mm
    Body dimensions 15.24x6.98x3.81mm
    Switched voltage max. 200V DC
    Switching capacity 10W
    Coil resistance 1kΩ
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 16V DC
    Type of relay reed
    Coil voltage min. 9V DC
    Relay features high reliability
    Optional equipment diode, electrostatic shield
