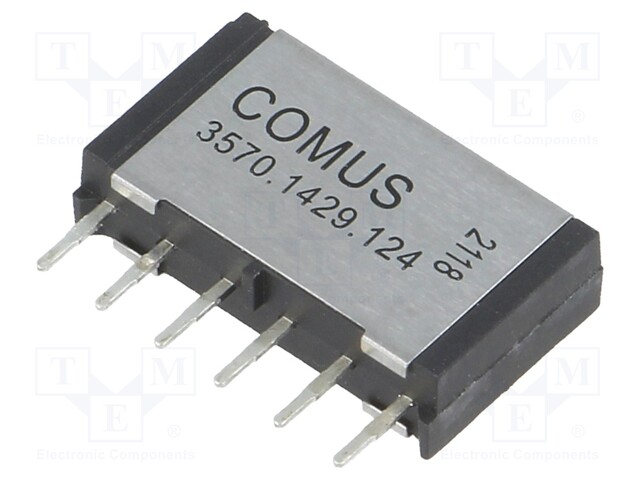

Relay: reed; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 15W; Rcoil: 750Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3570.1429.124
    Manufacturer: COMUS
    Manufacturer code: 3570.1429.124
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay features
    • Optional equipment
    • Optional equipment

    9.44 € 9.44 € (wo VAT) 9.44 EUR

    9.44 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 15W; Rcoil: 750Ω

    Mounting THT
    Case SIP
    Operating temperature -40...85°C
    Terminal pitch 2.54mm
    Body dimensions 15.2x8.89x3.81mm
    Switched voltage max. 200V DC
    Switching capacity 15W
    Coil resistance 750Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 16V DC
    Type of relay reed
    Coil voltage min. 9V DC
    Relay features high reliability
    Optional equipment diode, electrostatic shield
