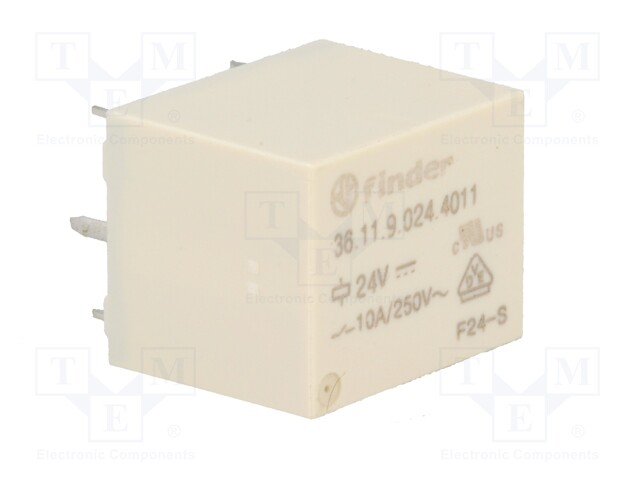

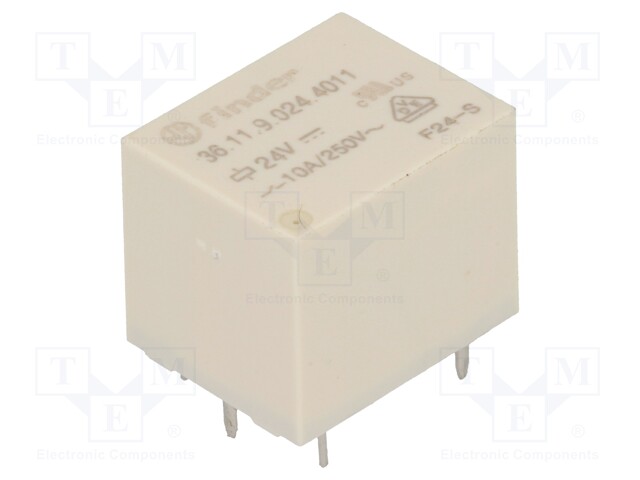

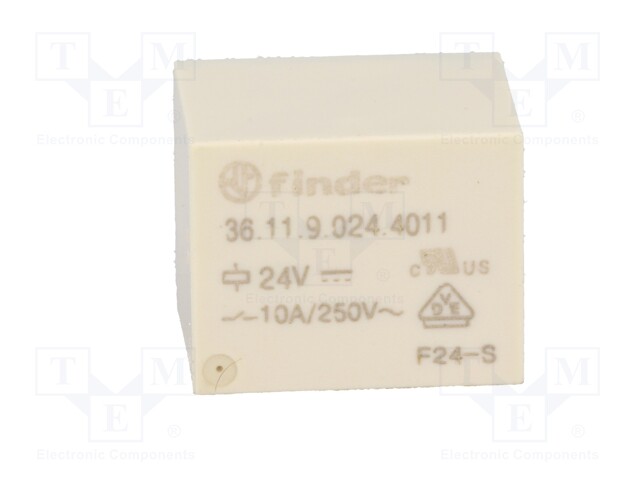

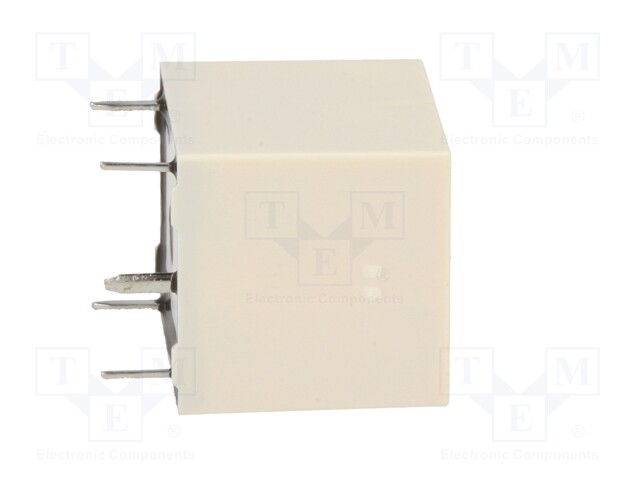

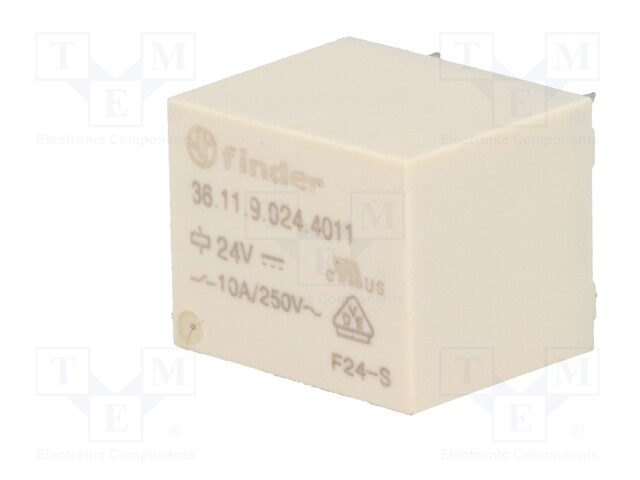

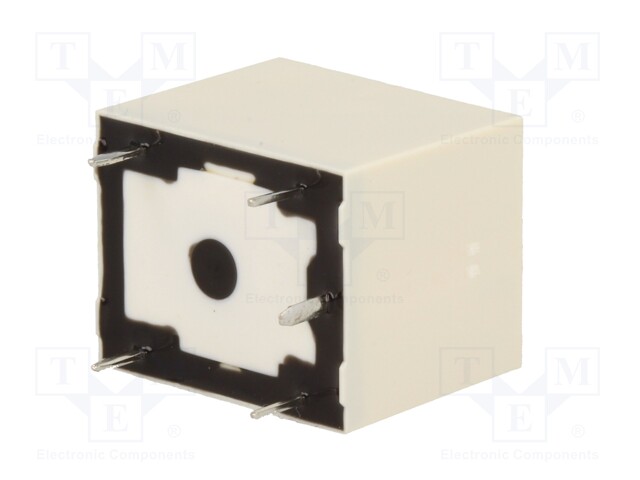

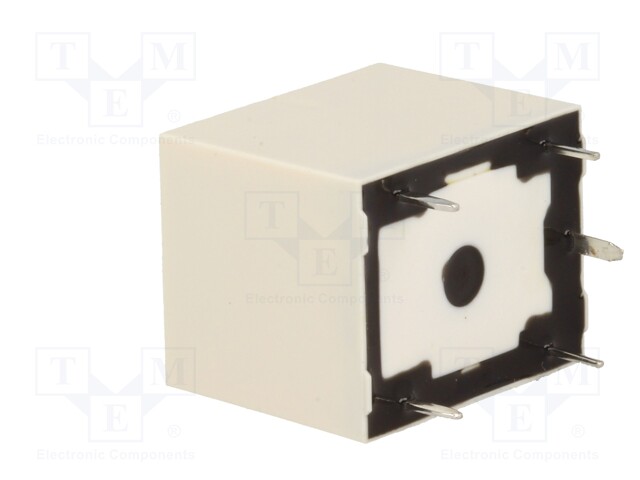

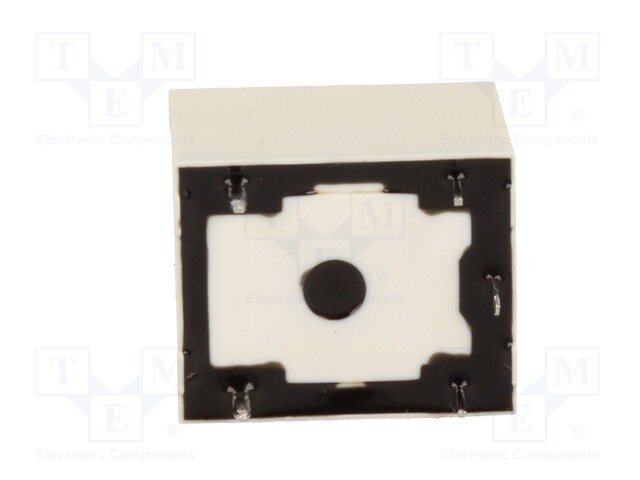

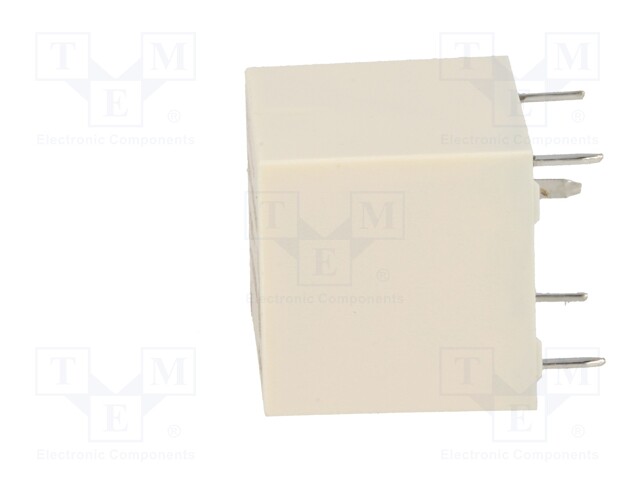

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 36.11.9.024.4011-1
    Manufacturer: FINDER
    Manufacturer code: 36.11.9.024.4011
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    2.53 € 2.53 € (wo VAT) 2.5300000000000002 EUR

    2.53 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 2mm
    Body dimensions 19x15.5x15.5mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Coil voltage max. 36V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 400mW
