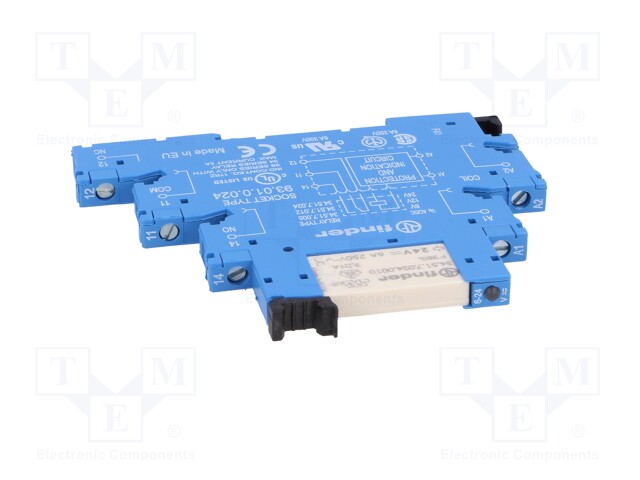

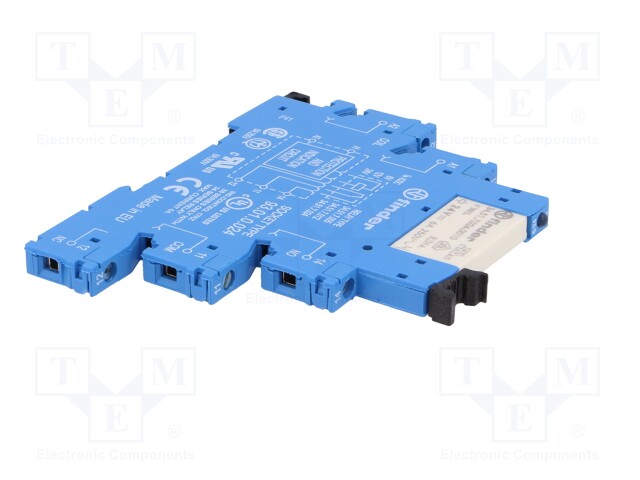

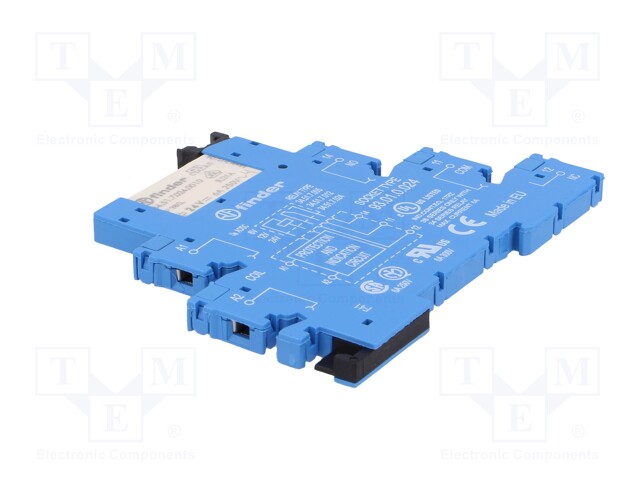

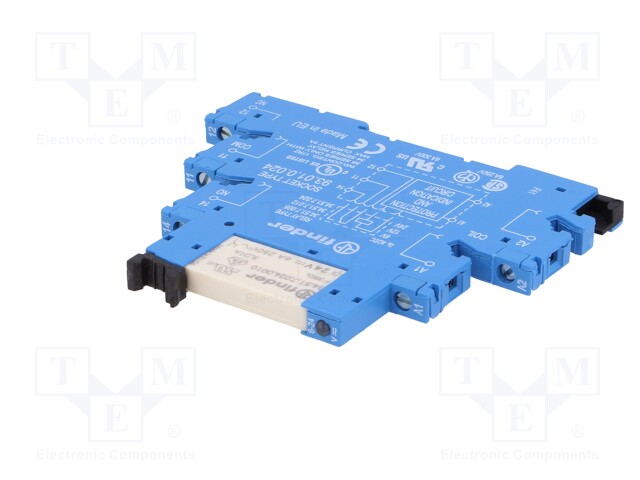

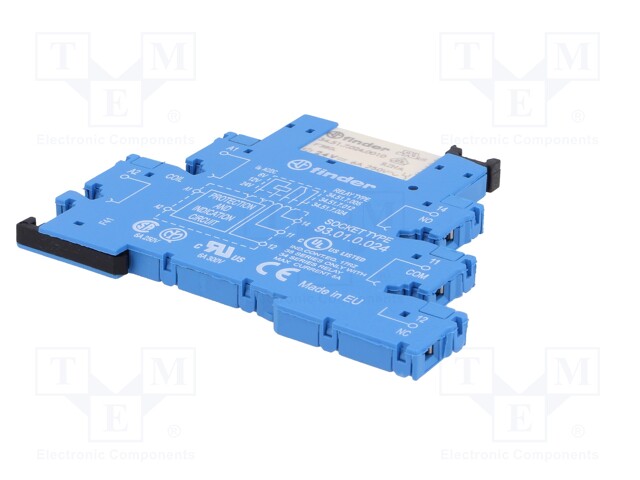

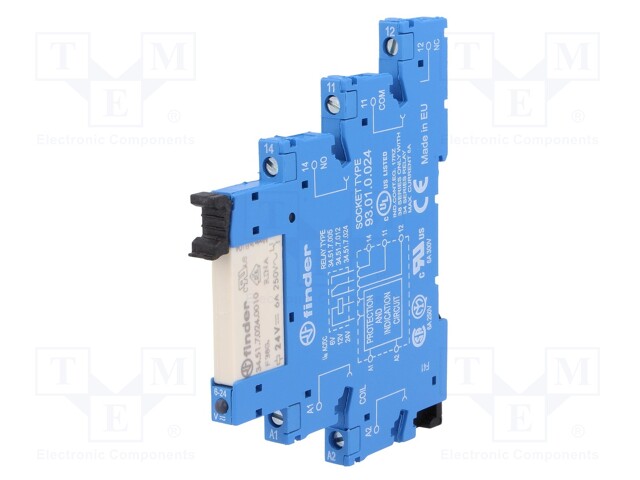

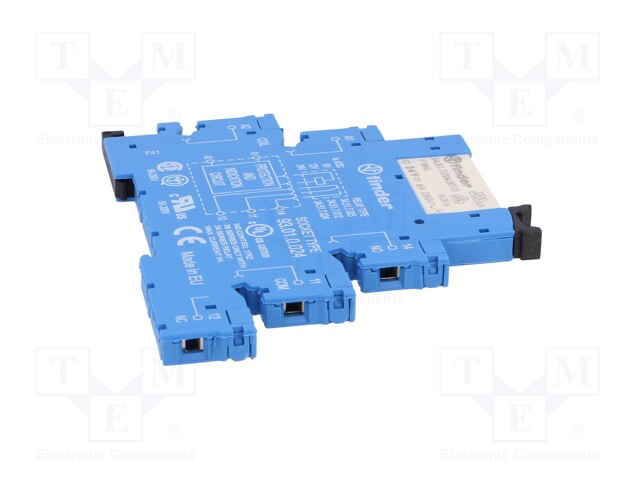

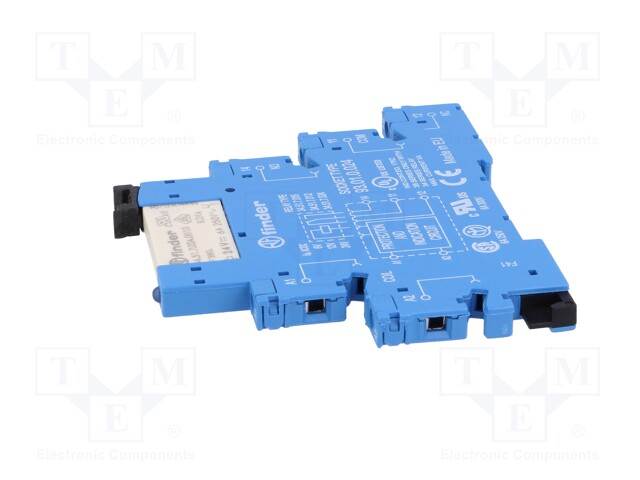

Relay: interface; SPDT; Ucoil: 24VDC; Ucoil: 24VAC; 6A; 6A/250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 38.51.0.024.0060
    Manufacturer: FINDER
    Manufacturer code: 38.51.0.024.0060
    • Mounting
    • Max. operating current
    • Operating temperature
    • IP rating
    • Leads
    • Body dimensions
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Indication
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay

    18.26 € 18.26 € (wo VAT) 18.26 EUR

    18.26 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; SPDT; Ucoil: 24VDC; Ucoil: 24VAC; 6A; 6A/250VAC

    Mounting for DIN rail mounting
    Max. operating current 6A
    Operating temperature -40...70°C
    IP rating IP20
    Leads screw terminals
    Body dimensions 87.9x6.2x75.6mm
    Kit contents 34.51.7.024.0010, 93.01.0.024
    Switched voltage max. 220V DC, max. 400V AC
    Indication LED
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Relay variant Relay set
    Type of relay interface
