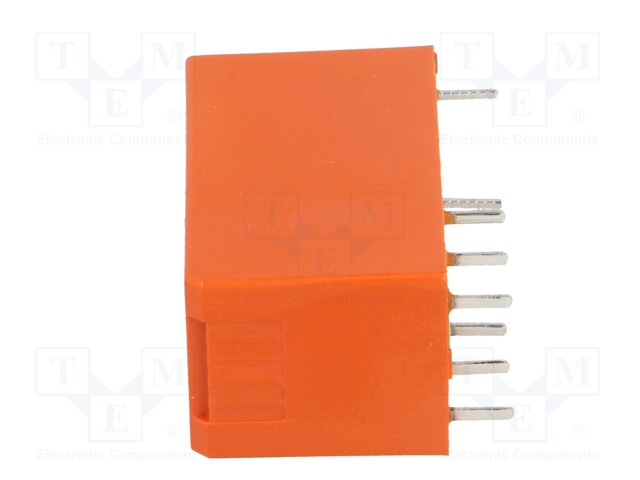

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 4-1393243-7
    Manufacturer: TE Connectivity
    Manufacturer code: 4-1393243-7
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    8.88 € 8.88 € (wo VAT) 8.88 EUR

    8.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/30VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Number of pins 8
    Contact material AgNi 90/10
    Terminal pitch 5mm
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 1000000cycles
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant bistable, miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
