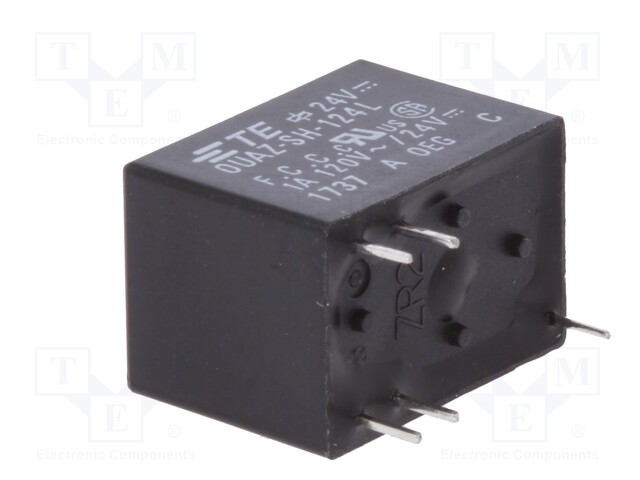

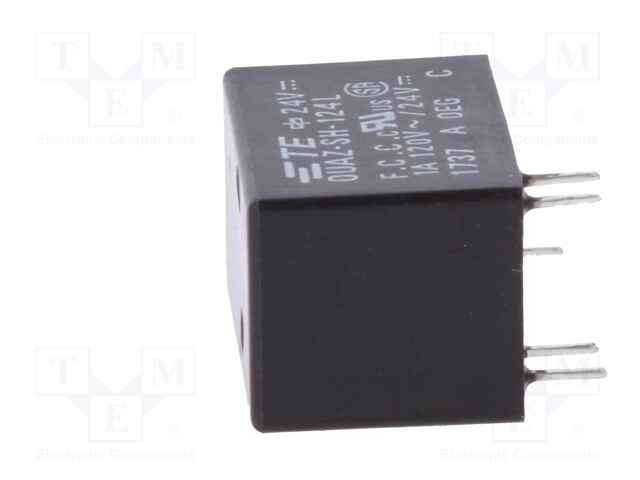

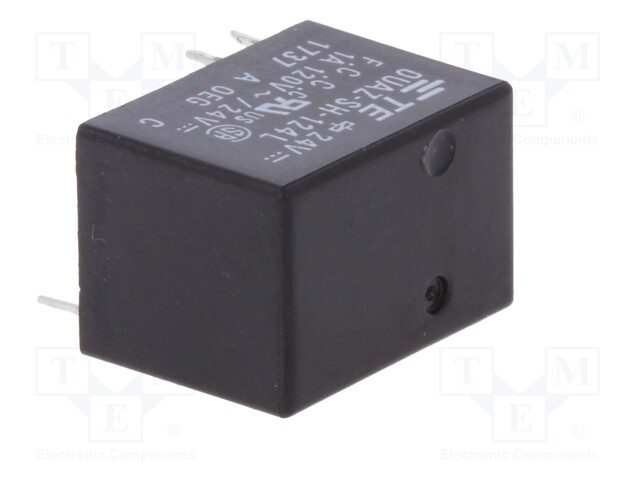

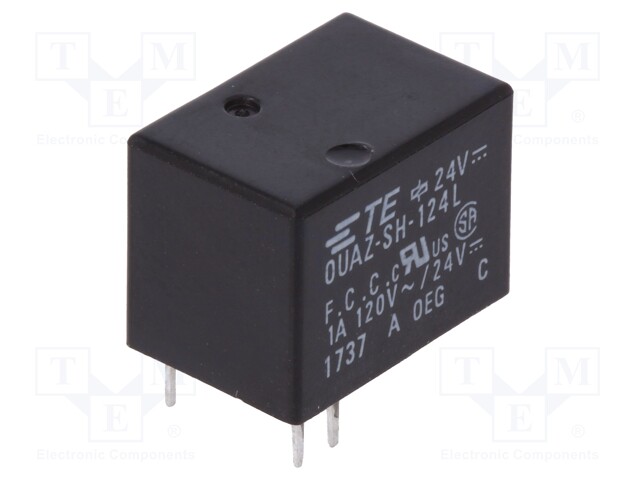

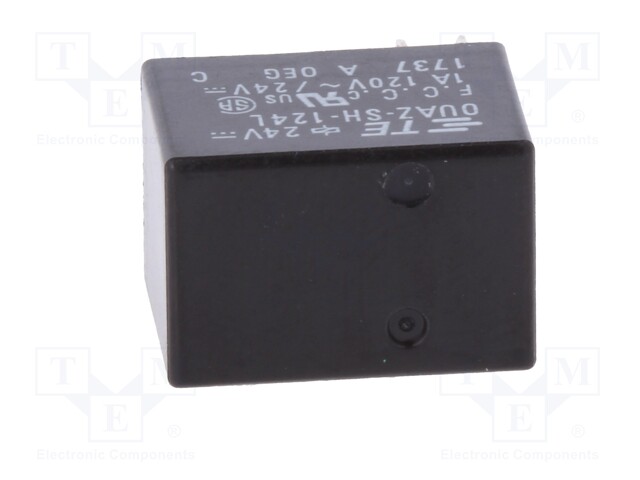

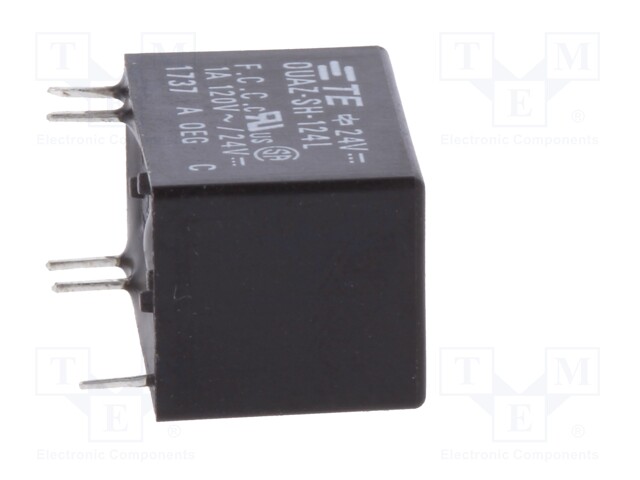

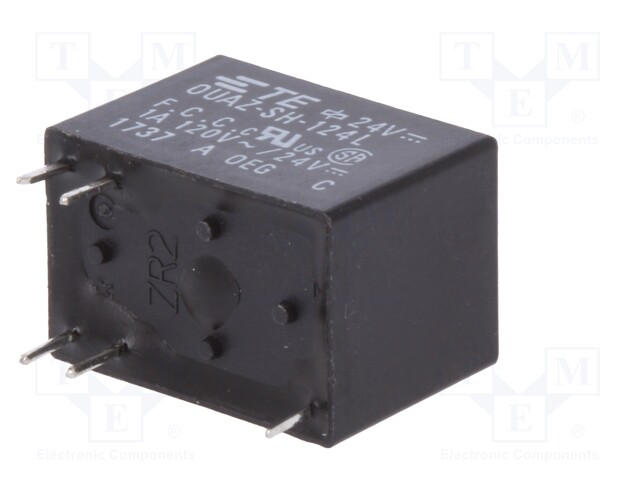

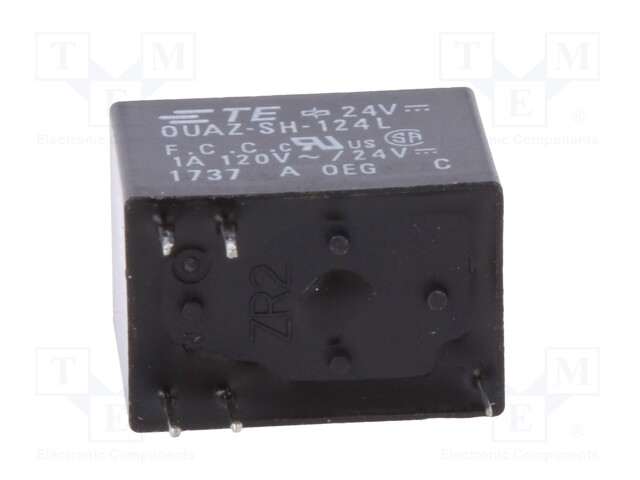

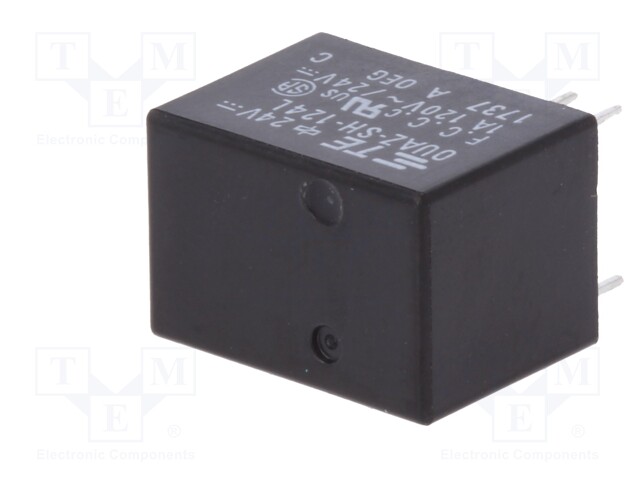

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/120VAC; 1A/24VDC; 1A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 4-1419145-8
    Manufacturer: TE Connectivity
    Manufacturer code: 4-1419145-8
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/120VAC; 1A/24VDC; 1A

    Mounting PCB
    Operating temperature -30...70°C
    Contact material AgPd
    Body dimensions 15.4x11.2x10.4mm
    Switched voltage max. 24V DC, max. 120V AC
    Coil resistance 2.8kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 24V DC
    AC contacts rating @R 1A / 120V AC
    Contact current max. 1A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 200mW
    Operate time 10ms
    Release time 7ms
